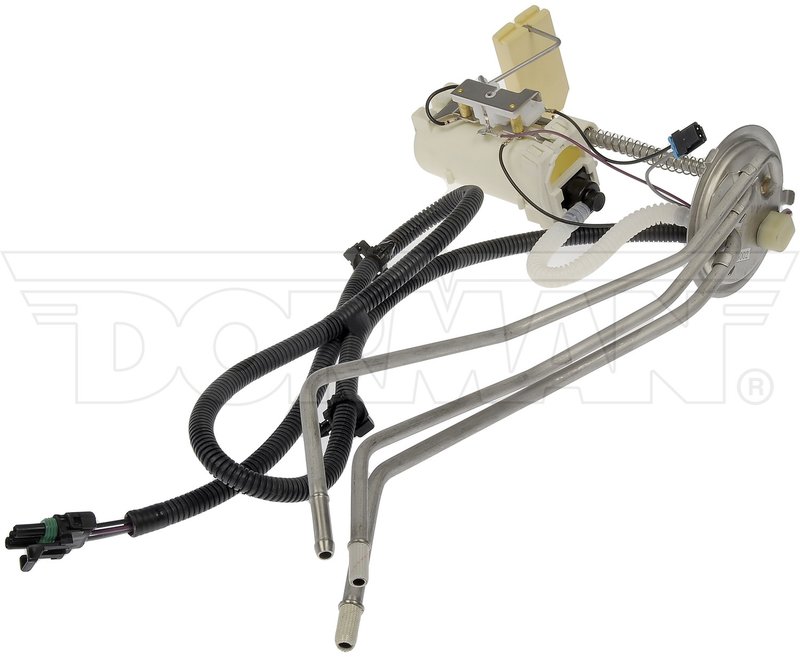

Dorman 692-267 Fuel Tank Sending Unit
| Brand | Dorman 692-267 |
|---|---|
| Length | 470 |
| Wire Colors | Black |
| Wire Colors | Gray |
| Wire Colors | Purple |
| Wiring Harness Length | 1330 |
| Wire Gauge Measurement | 16 |
| Connector Color | Black |
| Inlet Attachment Type | Hose barb |
| Outlet Attachment Type | Hose barb |
| Outside Diameter | 107 |
| Terminal Type | Pin |
| Wire Quantity | 7 |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Terminal Quantity | 3 |
| Tank Seal Outside Diameter | 107 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Wiring Harness Included | Yes |
| Strainer Included | Yes |
| Inlet Diameter | 5.5 |
| Vent Quantity | 0 |
| Inlet Quantity | 2 |
| Outlet Quantity | 1 |
| Outlet Diameter | 5.5 |
| Adjustable Float Level | Yes |
| Inlet Fitting Thread Size | No thread |
| Fuel Pump Included | No |
| Resistance Ohms Empty | 0 |
| Resistance Ohms Full | 90 |
| Fits | Buick and Chevrolet · 6 vehicles |
OE-style replacement. Matches the fit and function of the original unit on specified applications.
Quality materials. Built for reliable performance and durability.
Complete assembly. Includes a wiring harness and strainer for easier service.
Cross-references 25028957 and FG127B for the same application. See all 2.
Fuel Level Sending Unit for Buick and Chevrolet
Dorman 692-267 is a fuel tank sending unit built to match the fit and function of the original unit on specified vehicles. It is engineered with quality materials for dependable fuel level signal performance in 1994-1996 Buick Roadmaster and 1994-1996 Chevrolet Caprice applications.
Key Features
- Direct replacement fuel tank sending unit for specified GM applications
- Adjustable float level for proper fuel level calibration
- Includes wiring harness and strainer
- Female oval connector with 3 terminals and 7 wires
- Hose barb inlet and outlet connections
- Fuel level resistance range: 0 ohms empty to 90 ohms full
- Compatible with 1994-1996 Buick Roadmaster and 1994-1996 Chevrolet Caprice
Detailed Description
The Dorman 692-267 fuel tank sending unit is designed for accurate fuel level reporting in the tank on select Buick and Chevrolet full-size cars. It uses a 107 mm tank seal outside diameter, a 470 mm unit length, and a 1330 mm wiring harness length to match the original layout on the listed applications. This part cross-references GM-style applications such as 25028957 and FG127B for the same application.
For buyers searching for a fuel tank sending unit for 1994-1996 Buick Roadmaster or a replacement sending unit for 1994-1996 Chevrolet Caprice, this part provides the OE-style fit and electrical configuration needed for the fuel gauge system. Dorman 692-267 is built with a female oval connector, pin terminals, and an included strainer to support proper fuel pickup operation.
What This Part Helps Address
- Inaccurate fuel gauge readings
- Fuel gauge stuck on empty or full
- Intermittent fuel level signal loss
- Hard-to-diagnose sender circuit issues
- Fuel pickup contamination at the tank module
Installation Notes and Tips
Verify tank seal diameter, connector style, wire count, and resistance range before installation. The unit uses hose barb inlet and outlet connections and does not include a lock ring or gasket/seal. Confirm the vehicle’s fuel tank access and sender orientation match the listed fitment before service. Fits 1994-1996 Buick Roadmaster, N/A. Fits 1994-1996 Chevrolet Caprice, N/A.
Quality Assurance
This fuel tank sending unit is manufactured to match original fit and function on the specified applications and is made from quality materials for reliable performance and durability.
| Year | Make | Model | Body Type | Notes |
|---|---|---|---|---|
| 1996 | Buick | Roadmaster | Wagon | — |
| 1996 | Chevrolet | Caprice | Wagon | — |
| 1995 | Buick | Roadmaster | Wagon | — |
| 1995 | Chevrolet | Caprice | Wagon | — |
| 1994 | Buick | Roadmaster | Wagon | — |
| 1994 | Chevrolet | Caprice | Wagon | — |
