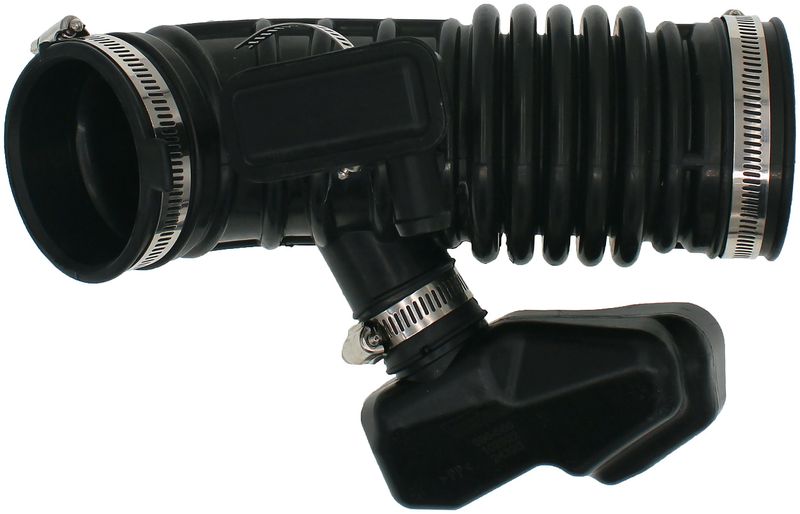

Dorman 696-560 Engine Air Intake Hose - Air Cleaner To Engine
| Brand | Dorman 696-560 |
|---|---|
| Position | Air Cleaner To Engine |
| Material | Caucho |
| Material | Élastomère |
| Material | Rubber |
| 10469 | No |
| 10469 | Non |
| Maximum Temperature Rating | 300 |
| Length | 260 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Configuration | Multi piece |
| Configuration | Múltiples piezas |
| Inside Diameter | 68.5 |
| Clamps Included | Oui |
| Clamps Included | Sí |
| Clamps Included | Yes |
| End 1 Inside Diameter | 68 |
| End 2 Inside Diameter | 68.5 |
| Centerline Length | 260 |
| Hose Port Quantity | 1 |
| Hose Port Quantity | 1 ensamble de manguera del calentador |
| Clamp Material | Acero inoxidable |
| Clamp Material | Stainless steel |
| Outside Diameter | 77 |
| Universal Or Specific Fit | Específico |
| Universal Or Specific Fit | Specific |
| End 1 Shape | Circular |
| End 2 Shape | Ensamble moldeado |
| End 2 Shape | Molded assembly |
| Shape | Ensamble moldeado |
| Fits | INFINITI · 7 vehicles |
Direct replacement. Matches the original intake hose layout for a precise factory-style fit.
Molded construction. Helps maintain the hose shape and routing during installation.
Clamps included. Stainless steel clamps are provided for secure attachment.
Cross-references 165761CZ1A for the same application. See all 1.
Direct Replacement Intake Hose
This Dorman engine air intake hose is a direct replacement for the original equipment hose, built for a precise fit and straightforward installation. It is made from rubber and elastomer materials for standard replacement use, with a molded shape that follows the factory routing.
Key Features
- Direct replacement design for the factory intake hose.
- Molded construction helps maintain the original hose shape.
- Rubber and elastomer materials support long service life.
- Includes stainless steel clamps for secure attachment.
- Black finish matches a clean OE-style appearance.
Detailed Description
Part number 696-560 is an engine air intake hose for the air cleaner to engine connection on the INFINITI QX70. It is engineered as a specific-fit replacement, with a molded assembly and measured hose diameters that match the original layout. The hose is designed to restore the intake path with the correct routing and connection points, and the included fittings support an easier installation process. This part cross-references 165761CZ1A for the same application.
What It Helps Fix
- Cracked or deteriorated intake hose material.
- Air leaks in the intake tract.
- Loose or worn hose connections.
- Loss of proper factory hose routing.
- Replacement needs after hose damage or age-related wear.
Installation Notes and Tips
Fits 2014-2020 INFINITI QX70, air cleaner to engine. Verify the hose routing, end diameters, and molded shape against the original part before installation. Part number 696-560 should be matched to the vehicle’s intake layout to confirm the correct application.
Quality Assurance
Dorman positions this hose as a standard replacement part made from quality materials for long service life.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | INFINITI | QX70 | 3.7L | V6 | Air Cleaner To Engine | Left |
| 2019 | INFINITI | QX70 | 3.7L | V6 | Air Cleaner To Engine | Left |
| 2018 | INFINITI | QX70 | 3.7L | V6 | Air Cleaner To Engine | Left |
| 2017 | INFINITI | QX70 | 3.7L | V6 | Air Cleaner To Engine | Left |
| 2016 | INFINITI | QX70 | 3.7L | V6 | Air Cleaner To Engine | Left |
| 2015 | INFINITI | QX70 | 3.7L | V6 | Air Cleaner To Engine | Left |
| 2014 | INFINITI | QX70 | 3.7L | V6 | Air Cleaner To Engine | Left |
