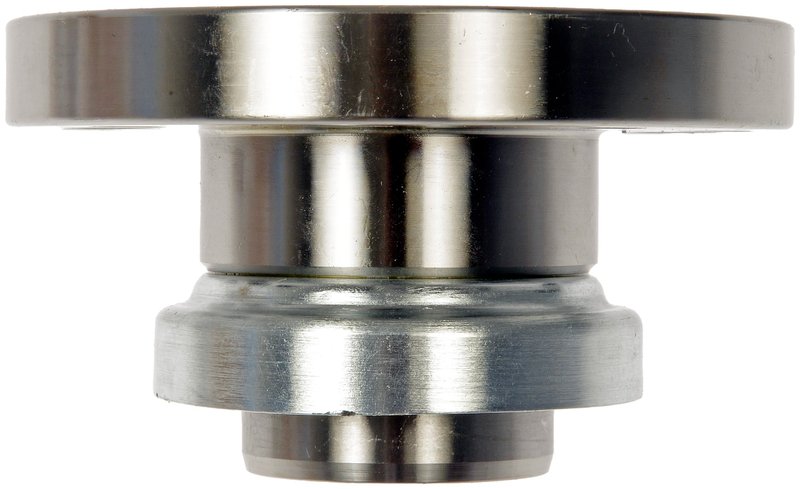

Dorman 697-022 Differential Pinion Flange - Front
| Brand | Dorman 697-022 |
|---|---|
| Position | Front |
| Width | 117.2 |
| Flanged End | No |
| Flanged End | Non |
| Flange Outside Diameter | 117.2 |
| Cover Bolt Quantity | 10 |
| Flange Length | 66.8 |
| Flange Material | Acero |
| Flange Material | Steel |
| Flange Thickness | 16 |
| Mounting Hole Diameter | 12 |
| Bearing Cap(s) Included | No |
| Bearing Cap(s) Included | Non |
| Bearing Strap(s) Included | No |
| Bearing Strap(s) Included | Non |
| Contenidos del paquete | 1 brida del piñón |
| Contenidos del paquete | 1 hondero de aceite |
| Contenidos del paquete | 1 manga de aplastamiento |
| Contenidos del paquete | 1 sello |
| Contenidos del paquete | 1 tuerca |
| Correa de la rodadura incluida | No |
| Diámetro interno de la estría | 29,5 mm |
| Package Contents | 1 crush sleeve |
| Package Contents | 1 nut |
| Package Contents | 1 oil slinger |
| Package Contents | 1 pinion flange |
| Package Contents | 1 seal |
| Sombrerete de la rodadura incluido | No |
| Spline Count | 24 |
| Spline Inside Diameter | 29.5 mm |
| Fits | Jeep · 13 vehicles |
OE direct replacement. Matches original equipment performance for a secure, reliable connection.
Steel construction. Rugged material helps deliver dependable service and durability.
Pinion flange. Restores the connection between the differential pinion and drive shaft.
Cross-references Mopar 68004072AA, 4720895AB and 5066047AA for the same application. See all 5.
Dorman 697-022 Differential Pinion Flange
Dorman 697-022 is a front differential pinion flange for select Jeep Wrangler and Jeep Wrangler JK applications. It is built to restore a secure connection between the differential pinion and the driveshaft when the original flange is rusted, worn, or damaged.
- Direct replacement differential pinion flange for specified Jeep front differential applications
- Steel flange construction for durable service
- 24-spline, 29.5 mm inside diameter design
- Flange outside diameter: 117.2 mm
- Flange length: 66.8 mm; flange thickness: 16 mm
- Includes a pinion flange, oil slinger, crush sleeve, seal, and nut
- Cross-references Mopar 68004072AA for the same application
OE-Style Fit and Function
This differential pinion flange is engineered to match original equipment performance on 2007-2018 Jeep Wrangler, front, and 2018 Jeep Wrangler JK, front. The steel construction and OE-style dimensions help maintain proper driveline alignment and a secure seal at the pinion area. Dorman 697-022 is a practical replacement when the original flange has corrosion, wear, or damage that affects driveline operation.
What It Helps Fix
- Driveline vibration caused by a worn or damaged pinion flange
- Gear oil leakage at the differential pinion seal area
- Loose or inconsistent driveshaft connection at the differential
- Corrosion-related flange damage on front axle applications
- Noise or driveline play associated with flange wear
Installation Notes
Verify spline count, flange dimensions, and vehicle fitment before installation. This part is intended for front differential applications on the listed Jeep models. Inspect the pinion seal, crush sleeve, and related driveline components during service, and follow factory torque procedures when installing the pinion nut.
Quality Assurance
Dorman designs this pinion flange as an OE-style replacement part for specified vehicles, using rugged materials for reliable service and durability. Part number 697-022 is built to restore the original connection point between the differential pinion and driveshaft on compatible Jeep Wrangler and Jeep Wrangler JK front applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2018 | Jeep | Wrangler | Front | — |
| 2018 | Jeep | Wrangler JK | Front | — |
| 2017 | Jeep | Wrangler | Front | — |
| 2016 | Jeep | Wrangler | Front | — |
| 2015 | Jeep | Wrangler | Front | — |
| 2014 | Jeep | Wrangler | Front | — |
| 2013 | Jeep | Wrangler | Front | — |
| 2012 | Jeep | Wrangler | Front | — |
| 2011 | Jeep | Wrangler | Front | — |
| 2010 | Jeep | Wrangler | Front | — |
| 2009 | Jeep | Wrangler | Front | — |
| 2008 | Jeep | Wrangler | Front | — |
| 2007 | Jeep | Wrangler | Front | — |
