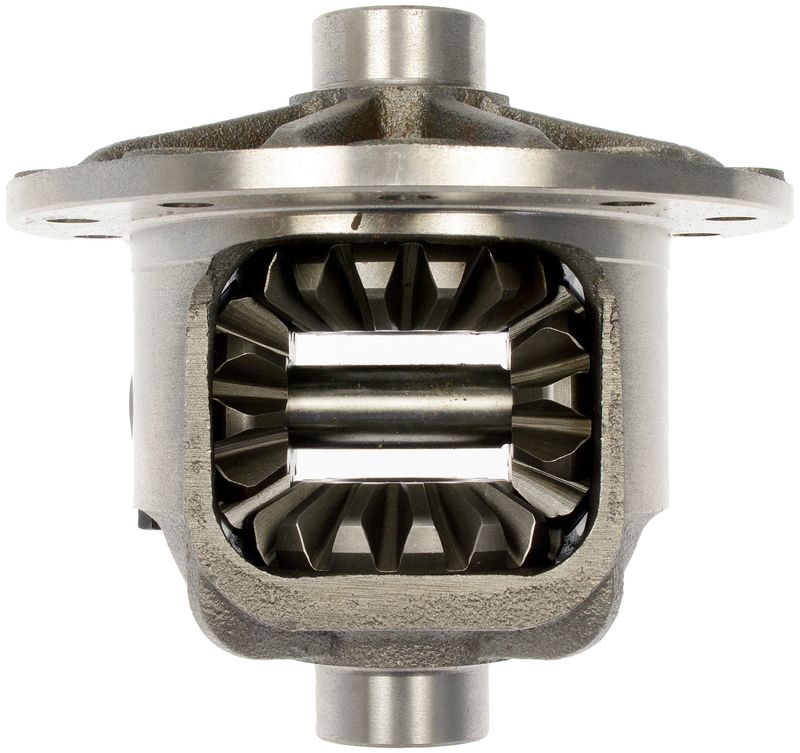

Dorman 697-393 Differential Carrier - Front
| Brand | Dorman 697-393 |
|---|---|
| Position | Front |
| Material | Acero |
| Material | Steel |
| Bolt Thread Size | 0 |
| Pin Included | Oui |
| Pin Included | Sí |
| Pin Included | Yes |
| Spacer Included | No |
| Spacer Included | Non |
| Ring Gear Bolt Quantity | 0 |
| Cover Bolt Quantity | 0 |
| Shims Included | No |
| Shims Included | Non |
| Axle Shaft Spline Quantity | 28 |
| Ring Gear Outside Diameter | 8.25 |
| Ring Gear Bolts Included | No |
| Ring Gear Bolts Included | Non |
| Differential Gear Ratio | 3.42 |
| Bearings Included | Oui |
| Bearings Included | Sí |
| Bearings Included | Yes |
| Carrier Type | Cargado |
| Carrier Type | Loaded |
| Involute Spline | Oui |
| Involute Spline | Sí |
| Involute Spline | Yes |
| Carrier Exchange | No |
| Carrier Exchange | Non |
| Core Free | No |
| Core Free | Non |
| Axle Spline Diameter | 30 |
| Fits | Cadillac, Chevrolet, and GMC · 83 vehicles |
Loaded assembly. Includes new spider gears, differential pins, and carrier housing for a complete rebuild.
Steel construction. Built with a steel carrier housing for durable differential service.
Open differential. Provides standard differential operation for smooth power transfer.
Cross-references 15801501, 23312178 and 25872305 for the same application. See all 5.
$781.14Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Differential Carrier options
Dorman 697-393 Loaded Differential Carrier
Dorman 697-393 is a loaded differential carrier assembly for GM front differential applications that use a 3.42 or 3.73 gear ratio, depending on vehicle fitment. It restores the differential carrier with new spider gears, differential pins, and carrier housing for GM 8.25 IFS setups.
Key Features
- Loaded differential carrier assembly with steel construction
- Includes new spider gears, differential pins, and carrier housing
- Open differential type
- Hypoid ring gear design
- 28 axle shaft splines and 30 axle spline diameter
- Bearings included
- Fits GM 8.25 IFS front differential applications
- Part number: 697-393
Detailed Description
This Dorman differential carrier is built for front axle service on GM trucks and SUVs with the GM 8.25 IFS axle model. It is a direct replacement for worn or damaged carrier components caused by hard use or lubrication breakdown, and it is specified for open differential applications. Vehicle coverage includes Cadillac Escalade, Cadillac Escalade ESV, Cadillac Escalade EXT, GMC Yukon, GMC Yukon XL 1500, GMC Sierra 1500, and Chevrolet Silverado 1500 applications listed below. The 697-393 carrier is a practical OE-style replacement for front differential repair on GM 8.25 IFS platforms.
This part cross-references GM OE numbers 15801501 and 23312178 for the same application.
What It Helps Fix
- Excessive differential noise from worn carrier components
- Metal wear from poor lubrication inside the front differential
- Spider gear or differential pin damage
- Carrier housing wear or scoring
- Loss of smooth front axle operation in GM 8.25 IFS systems
Installation Notes and Fitment
Verify axle ratio, axle model, and RPO code before installation. This part is for front differential applications only and uses an open differential configuration.
- Fits 2007-2015 Cadillac Escalade, front, w/RPO Code GU6 (3.42 Axle Ratio)
- Fits 2007-2015 Cadillac Escalade ESV, front, w/RPO Code GU6 (3.42 Axle Ratio)
- Fits 2007-2014 GMC Yukon, front, w/RPO Code GU6 (3.42 Axle Ratio)
- Fits 2007-2014 GMC Yukon XL 1500, front, w/RPO Code GU6 (3.42 Axle Ratio)
- Fits 2007-2013 Cadillac Escalade EXT, front, w/RPO Code GU6 (3.42 Axle Ratio)
- Fits 2007-2013 GMC Sierra 1500, front, w/RPO Code GU6 (3.42 Axle Ratio)
- Fits 2002-2006 Cadillac Escalade, front, w/RPO Code GT4 (3.73 Axle Ratio)
- Fits 2003-2006 Cadillac Escalade ESV, front, w/RPO Code GT4 (3.73 Axle Ratio)
- Fits 2002-2006 Cadillac Escalade EXT, front, w/RPO Code GT4 (3.73 Axle Ratio)
- Fits 2002-2006 GMC Sierra 1500, front, DENALI Package
- Fits 2001-2006 GMC Yukon, front, w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case)
- Fits 2001-2006 GMC Yukon XL 1500, front, w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case)
- Fits 2003-2005 Chevrolet Silverado 1500, front
- Fits 2001 GMC Sierra 1500, front
Quality Assurance
Dorman supplies replacement drivetrain components engineered to restore original differential function in serviceable GM applications. Part number 697-393 is built as a loaded carrier assembly for the specified GM front axle configurations.
This part fits 83 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2015 | Cadillac | Escalade | AWD | Automatic | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2015 | Cadillac | Escalade ESV | AWD | Automatic | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2014 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2014 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2014 | GMC | Yukon | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2014 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2013 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2013 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2013 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2013 | GMC | Sierra 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2013 | GMC | Yukon | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2013 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2012 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2012 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2012 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2012 | GMC | Sierra 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2012 | GMC | Yukon | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2012 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2011 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2011 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2011 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2011 | GMC | Sierra 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2011 | GMC | Yukon | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2011 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2010 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2010 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2010 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2010 | GMC | Sierra 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2010 | GMC | Yukon | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2010 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2009 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2009 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2009 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2009 | GMC | Sierra 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2009 | GMC | Yukon | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2009 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2008 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2008 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2008 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2008 | GMC | Sierra 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2008 | GMC | Yukon | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2008 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2007 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2007 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2007 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2007 | GMC | Sierra 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2007 | GMC | Yukon | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2007 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code GU6 (3.42 Axle Ratio) |
| 2006 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2006 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2006 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2006 | GMC | Sierra 1500 | AWD | — | Front | DENALI Package |
| 2006 | GMC | Yukon | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2006 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2005 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2005 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2005 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2005 | Chevrolet | Silverado 1500 | AWD | — | Front | — |
| 2005 | GMC | Sierra 1500 | AWD | — | Front | DENALI Package |
| 2005 | GMC | Yukon | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2005 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2004 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2004 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2004 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2004 | Chevrolet | Silverado 1500 | AWD | — | Front | — |
| 2004 | GMC | Sierra 1500 | AWD | — | Front | DENALI Package |
| 2004 | GMC | Yukon | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2004 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2003 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2003 | Cadillac | Escalade ESV | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2003 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2003 | Chevrolet | Silverado 1500 | AWD | — | Front | — |
| 2003 | GMC | Sierra 1500 | AWD | — | Front | DENALI Package |
| 2003 | GMC | Yukon | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2003 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2002 | Cadillac | Escalade | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2002 | Cadillac | Escalade EXT | AWD | — | Front | w/RPO Code GT4 (3.73 Axle Ratio) |
| 2002 | GMC | Sierra 1500 | AWD | — | Front | DENALI Package |
| 2002 | GMC | Yukon | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2002 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2001 | GMC | Sierra 1500 | AWD | — | Front | — |
| 2001 | GMC | Yukon | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| 2001 | GMC | Yukon XL 1500 | AWD | — | Front | w/RPO Code NP3 (All Wheel Drive (AWD) Transfer Case) |
| No rows match your filter. | ||||||
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
1580150123312178258723052605660084526163
