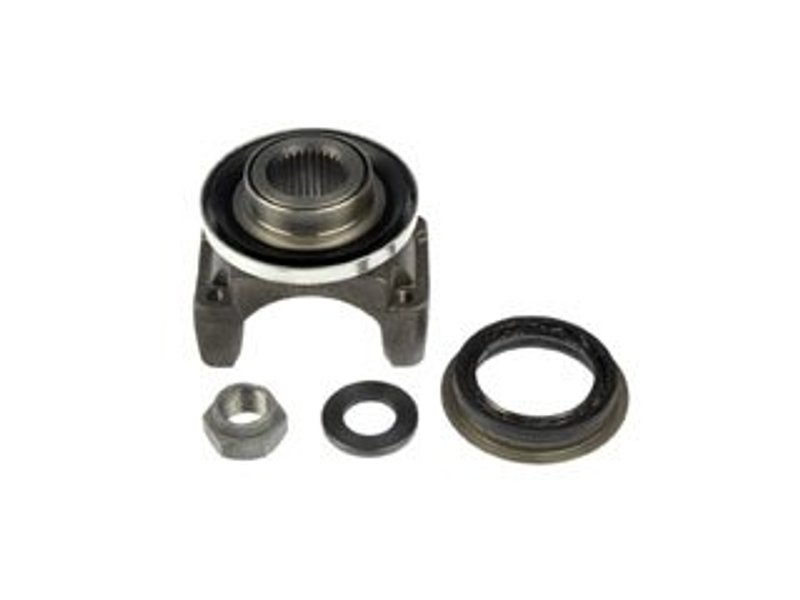

Dorman 697-500 Differential End Yoke - Rear Differential

Durable Differential End Yoke for GM Trucks and SUVs

The Dorman 697-500 differential end yoke is engineered to provide reliable driveline performance for a range of General Motors vehicles. Designed with precision, this cast iron yoke ensures a secure connection between the driveshaft and differential, maintaining drivetrain integrity under demanding conditions.

• Constructed from durable cast iron for strength and longevity
• 30 splines for precise fitment and torque transfer
• Length of 102 mm, inside diameter of 33.2 mm, and width of 65.6 mm
• Gray finish for corrosion resistance and durability
• Four mounting holes with 7 mm diameter for secure attachment
• Includes one differential end yoke per package

Technical Details and Specifications

The Dorman 697-500 differential end yoke features a robust cast iron construction that withstands the stresses of heavy-duty use. With 30 splines, it provides a tight fit to the driveshaft, minimizing play and vibration. The yoke measures 102 mm in length, 65.6 mm in width, and has an inside diameter of 33.2 mm, ensuring compatibility with specific GM driveline components. The gray color finish offers additional protection against rust and wear. This yoke is designed with four mounting holes, each 7 mm in diameter, to securely fasten the yoke to the differential flange.

Compatible Vehicles and Applications

This differential end yoke is compatible with a wide range of GM vehicles, including Buick, Cadillac, Chevrolet, GMC, Oldsmobile, and Pontiac models. It fits popular trucks and SUVs such as the Chevrolet Silverado 1500, Tahoe, Suburban 1500, Avalanche, and Colorado, as well as the GMC Sierra 1500, Yukon, and Canyon. It also suits classic and commercial chassis models like the C10, K10, and G20. The Dorman 697-500 is ideal for restoring or repairing the driveline on these vehicles, ensuring proper drivetrain function.

• Replaces worn or damaged differential end yokes
• Eliminates driveline vibrations and noise
• Restores secure driveshaft connection
• Prevents premature wear on universal joints and other driveline components
• Supports smooth power transfer from transmission to wheels

Installation Notes and Tips

When installing the Dorman 697-500 differential end yoke, ensure the driveshaft and differential flange surfaces are clean and free of debris. Verify spline alignment carefully to avoid damage during assembly. This yoke does not include mounting hardware, so use the original bolts or appropriate replacements. Torque mounting bolts to manufacturer specifications to maintain driveline integrity and prevent loosening during operation.

Quality Assurance and Warranty

Dorman manufactures this differential end yoke to meet or exceed OEM standards for fit, form, and function. The cast iron material and precise machining contribute to its durability and performance. While specific warranty details are not provided, Dorman products typically come with a limited warranty against defects in material and workmanship, offering confidence in the product's reliability.
