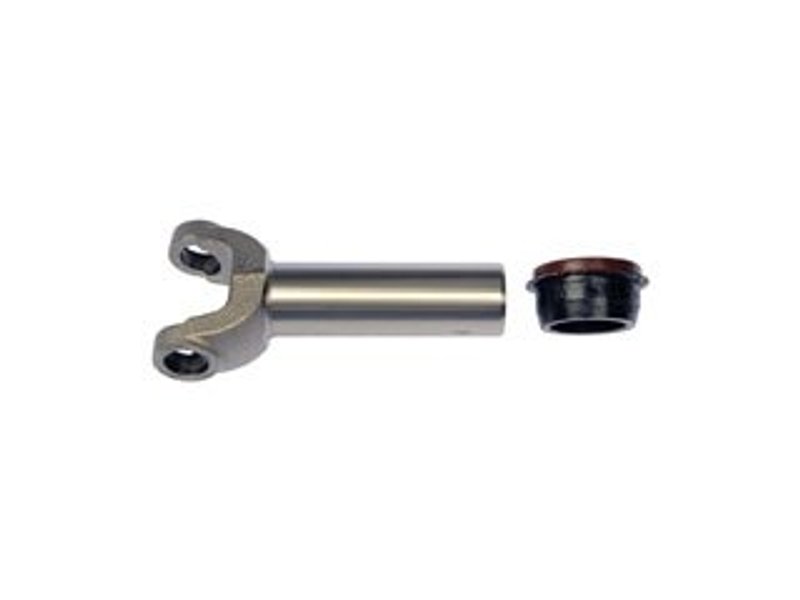

Dorman 697-502 Drive Shaft Slip Yoke - Rear Driveshaft at Transfer Case
| Brand | Dorman 697-502 |
|---|---|
| Position | Rear Driveshaft at Transfer Case |
| Bearing Cap(s) Included | No |
| Bearing Strap(s) Included | No |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Length Axis 1 | 3.88 |
| Material | Steel |
| Overall Length (In) | 8.54 in |
| Package Contents | 1 Slip Yoke; 1 Seal |
| Shaft Diameter | 1.89 |
| Shaft Length | 5.71 |
| Spline Inside Diameter | 1.37 In |
| Spline Quantity | 31 |
| U Bolt(s) Included | No |
| U Joint Bearing Cap Diameter Axis 1 | 1.06 |
| Universal Joint Style | Yes |
| Universal Joint(s) Included | No |
| Fits | Chevrolet and GMC · 34 vehicles |
OE direct replacement. Directly replaces the original equipment slip yoke.
Steel construction. Built for dependable driveline strength and durability.
Seal included. Comes with one seal for a complete installation.
Cross-references 12477702 and SK697502 for the same application. See all 2.
Drive Shaft Slip Yoke for GM Trucks
Dorman 697-502 is a steel drive shaft slip yoke for the rear driveshaft at the transfer case on select Chevrolet Silverado 1500 and GMC Sierra 1500 trucks, plus Chevrolet and GMC K1500 applications. It replaces the original equipment slip yoke on specific vehicle years and configurations when the factory part is worn, noisy, or no longer serviceable.
- Steel construction for driveline service
- 31-spline design
- Overall length: 8.54 in.
- Shaft diameter: 1.89 in.
- Spline inside diameter: 1.37 in.
- Package contents: 1 slip yoke and 1 seal
- No grease fitting included
Fitment and Application Details
Compatible With rear driveshaft at transfer case applications on 1992-2005 Chevrolet Silverado 1500, 1992-2005 GMC Sierra 1500, and 1992-1999 Chevrolet K1500 / GMC K1500 configurations listed below. Dorman 697-502 is a direct replacement for the original slip yoke on the specified driveline setups, including 2-wheel steering and non-heavy-duty chassis versions where noted.
- Fits 2005 Chevrolet Silverado 1500, rear driveshaft at transfer case; w/2 wheel steering; wo/Heavy Duty Chassis; Propshaft Code KW5, FB, JF0
- Fits 2005 Chevrolet Silverado 1500, rear driveshaft at transfer case; w/2 wheel steering; wo/Heavy Duty Chassis; Propshaft Code KW5
- Fits 2005 Chevrolet Silverado 1500, rear driveshaft at transfer case; Propshaft Code KW5
- Fits 2005 GMC Sierra 1500, rear driveshaft at transfer case; w/2 wheel steering; wo/Heavy Duty Chassis; Propshaft Code KW5, FB, JF0
- Fits 2005 GMC Sierra 1500, rear driveshaft at transfer case; w/2 wheel steering; wo/Heavy Duty Chassis; Propshaft Code KW5
- Fits 2005 GMC Sierra 1500, rear driveshaft at transfer case; Propshaft Code KW5
- Fits 2000-2004 Chevrolet Silverado 1500, rear driveshaft at transfer case; w/2 wheel steering; wo/Heavy Duty Chassis
- Fits 2004 Chevrolet Silverado 1500, rear driveshaft at transfer case
- Fits 2000-2004 GMC Sierra 1500, rear driveshaft at transfer case; w/2 wheel steering; wo/Heavy Duty Chassis
- Fits 2004 GMC Sierra 1500, rear driveshaft at transfer case
- Fits 1992-1999 Chevrolet K1500, rear driveshaft at transfer case; wo/Heavy Duty Chassis
- Fits 1992-1999 GMC K1500, rear driveshaft at transfer case; wo/Heavy Duty Chassis
What This Slip Yoke Helps Address
- Driveline vibration from a worn slip yoke
- Clunking or driveline lash at the transfer case
- Excessive spline wear or damaged yoke surfaces
- Transfer case output connection issues on GM truck drivetrains
- Failure of the original slip yoke on Silverado 1500, Sierra 1500, and K1500 applications
Installation Notes and Tips
Verify spline count, shaft dimensions, and vehicle configuration before installation. This part is for the rear driveshaft at the transfer case and uses a 31-spline layout; confirm propshaft code and chassis notes where listed for 2005 Silverado 1500 and Sierra 1500 applications. The seal is included, while a grease fitting, bearing caps, bearing straps, U-bolts, and universal joint are not included.
This part cross-references 12477702 and SK697502 for the same application.
Quality Assurance
Dorman supplies this slip yoke as a direct OE-style replacement for specific GM truck driveline applications. The steel construction and application-specific dimensions support accurate replacement of the original part on the listed Chevrolet and GMC models.
| Year | Make | Model | Body Type | Drive Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 4WD | 143.5" | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis; Propshaft Code KW5, FB, JF0 |
| 2005 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 4WD | 157.5" | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis; Propshaft Code KW5 |
| 2005 | Chevrolet | Silverado 1500 | Crew Cab Pickup | 4WD | 133.0" | Rear Driveshaft at Transfer Case | Propshaft Code KW5 |
| 2005 | GMC | Sierra 1500 | Extended Cab Pickup | 4WD | 143.5" | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis; Propshaft Code KW5, FB, JF0 |
| 2005 | GMC | Sierra 1500 | Extended Cab Pickup | 4WD | 157.5" | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis; Propshaft Code KW5 |
| 2005 | GMC | Sierra 1500 | Crew Cab Pickup | 4WD | 133.0" | Rear Driveshaft at Transfer Case | Propshaft Code KW5 |
| 2004 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 4WD | — | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis |
| 2004 | Chevrolet | Silverado 1500 | Crew Cab Pickup | 4WD | 133.0" | Rear Driveshaft at Transfer Case | — |
| 2004 | GMC | Sierra 1500 | Extended Cab Pickup | 4WD | — | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis |
| 2004 | GMC | Sierra 1500 | Crew Cab Pickup | 4WD | 133.0" | Rear Driveshaft at Transfer Case | — |
| 2003 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 4WD | — | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis |
| 2003 | GMC | Sierra 1500 | Extended Cab Pickup | 4WD | — | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis |
| 2002 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 4WD | — | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis |
| 2002 | GMC | Sierra 1500 | Extended Cab Pickup | 4WD | — | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis |
| 2001 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 4WD | — | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis |
| 2001 | GMC | Sierra 1500 | Extended Cab Pickup | 4WD | — | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis |
| 2000 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 4WD | — | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis |
| 2000 | GMC | Sierra 1500 | Extended Cab Pickup | 4WD | — | Rear Driveshaft at Transfer Case | w/2 Wheel Steering; wo/Heavy Duty Chassis |
| 1999 | Chevrolet | K1500 | — | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1999 | GMC | K1500 | — | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1998 | Chevrolet | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1998 | GMC | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1997 | Chevrolet | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1997 | GMC | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1996 | Chevrolet | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1996 | GMC | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1995 | Chevrolet | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1995 | GMC | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1994 | Chevrolet | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1994 | GMC | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1993 | Chevrolet | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1993 | GMC | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1992 | Chevrolet | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
| 1992 | GMC | K1500 | Extended Cab Pickup | — | — | Rear Driveshaft at Transfer Case | wo/Heavy Duty Chassis |
