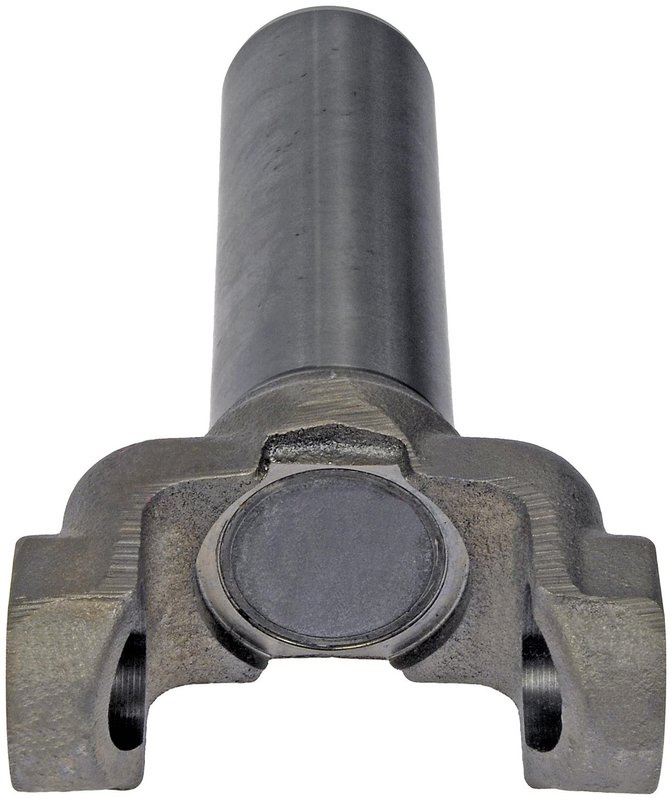

Dorman 697-515 Drive Shaft Slip Yoke - Rear Driveshaft at Transfer Case

Durable Drive Shaft Slip Yoke for Chevrolet and GMC Trucks

The Dorman 697-515 Drive Shaft Slip Yoke is engineered to provide reliable driveline performance for select Chevrolet and GMC heavy-duty trucks. Constructed from steel, this slip yoke is designed to meet the demands of Sierra 2500, Sierra 3500, Silverado 2500, and Silverado 3500 models, ensuring a precise fit and long-lasting durability.

• Made from high-strength steel for durability and wear resistance
• 30 spline count for accurate engagement with compatible drive shafts
• Overall length of 8.8 inches with a shaft length of 5.56 inches
• Shaft diameter measures 1.89 inches for proper fitment
• Compatible with universal joint style drive shafts (universal joints not included)
• Designed specifically for Chevrolet and GMC Sierra and Silverado 2500/3500 series trucks

Detailed Product Specifications

The Dorman 697-515 slip yoke features a 30-spline configuration with an inside diameter of 1.37 inches, ensuring a secure connection to the drive shaft. The shaft length is 5.56 inches, while the overall length measures 8.8 inches, providing the correct dimensions for proper driveline alignment. The shaft diameter is 1.89 inches, and the bearing cap diameter on axis 1 is 1.19 inches. This slip yoke does not include grease fittings, bearing caps, bearing straps, U-bolts, or universal joints, so these components must be sourced separately if needed. It is designed for use with universal joint style drive shafts, commonly found in heavy-duty Chevrolet and GMC trucks.

Compatible Vehicles and Applications

This drive shaft slip yoke is compatible with the following models:

• Chevrolet Sierra 2500, Sierra 2500 HD, Sierra 2500 HD Classic
• Chevrolet Sierra 3500, Sierra 3500 Classic
• Chevrolet Silverado 2500, Silverado 2500 HD, Silverado 2500 HD Classic
• Chevrolet Silverado 3500, Silverado 3500 Classic
• GMC Sierra 2500, Sierra 2500 HD, Sierra 2500 HD Classic
• GMC Sierra 3500, Sierra 3500 Classic

Common Issues Addressed by the Dorman 697-515 Slip Yoke

• Eliminates driveline vibrations caused by worn or damaged slip yokes
• Restores proper spline engagement to prevent driveline slippage
• Replaces corroded or bent slip yokes that compromise driveline integrity
• Prevents premature wear on universal joints by maintaining correct alignment
• Addresses leaks or contamination issues due to damaged seals around the slip yoke

Installation Notes and Tips

When installing the Dorman 697-515 slip yoke, ensure the drive shaft and universal joints are inspected for wear or damage. Proper lubrication of the splines is recommended to facilitate smooth movement and prevent corrosion. Since this part does not include grease fittings or universal joints, verify that these components are compatible and in good condition before assembly. Torque all fasteners to manufacturer specifications to maintain driveline balance and performance.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, providing dependable performance for heavy-duty truck applications. The 697-515 slip yoke is made from durable steel and undergoes quality inspections to ensure fit and function. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Consult product documentation for exact warranty terms.
