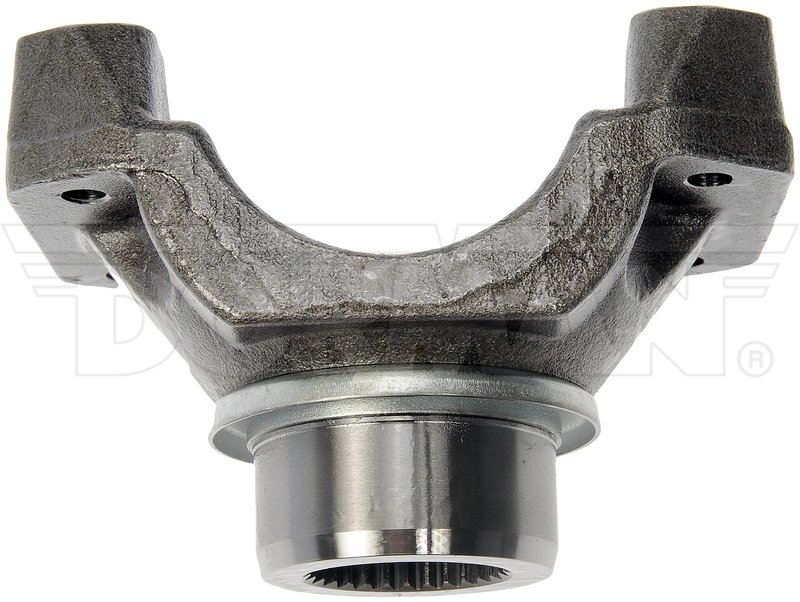

Dorman 697-545 Differential End Yoke - Front Differential or Rear Differential

Durable Differential End Yoke for Chevrolet, Dodge, Ford, and More

The Dorman 697-545 differential end yoke is engineered to provide reliable driveline performance for a wide range of vehicles including Chevrolet, Dodge, Ford, GMC, Jeep, and Mazda models. Constructed from carbon steel, this silver-colored yoke offers strength and durability for demanding applications.

• Material: Carbon steel for enhanced strength and longevity
• Spline Quantity: 29 splines for precise fitment
• Length: 106.24 mm ensuring proper driveline alignment
• Inside Diameter: 51.6 mm for accurate shaft connection
• Width: 125 mm for stable mounting
• Mount Hole Diameter: 7.94 mm with 4 mounting holes for secure installation
• Package includes one differential end yoke; mounting hardware not included

Technical Details and Compatibility

This differential end yoke (part number 697-545) is designed to replace worn or damaged yokes on various models such as Chevrolet C10 Suburban, Dodge Ram 1500, Ford F-250 Super Duty, GMC Sierra, Jeep Wagoneer, and Mazda B2500. The 29-spline design and precise dimensions ensure a proper fit and smooth driveline operation. Its carbon steel construction resists wear and fatigue, making it suitable for heavy-duty use in trucks, vans, and SUVs.

Common Applications and Problem Solving

• Replaces worn or damaged differential end yokes causing driveline vibrations
• Restores proper spline engagement to prevent driveline slippage
• Eliminates mounting instability due to bent or cracked yokes
• Addresses leaks or noise related to faulty yoke connections
• Improves overall driveline alignment and performance

Installation Notes and Tips

Installation of the Dorman 697-545 differential end yoke requires removal of the existing yoke and careful alignment of the splines. Ensure the mounting holes align correctly with the differential flange. Note that mounting hardware and universal joints are not included and must be reused or purchased separately. Proper torque specifications should be followed to avoid damage or loosening during operation.

Quality Assurance and Warranty

Dorman manufactures this differential end yoke to meet or exceed OEM standards for fit, form, and function. The carbon steel material and precise machining contribute to long service life. While mounting hardware is not included, the product is backed by Dorman's quality assurance policies. Please refer to Dorman's warranty terms for specific coverage details.
