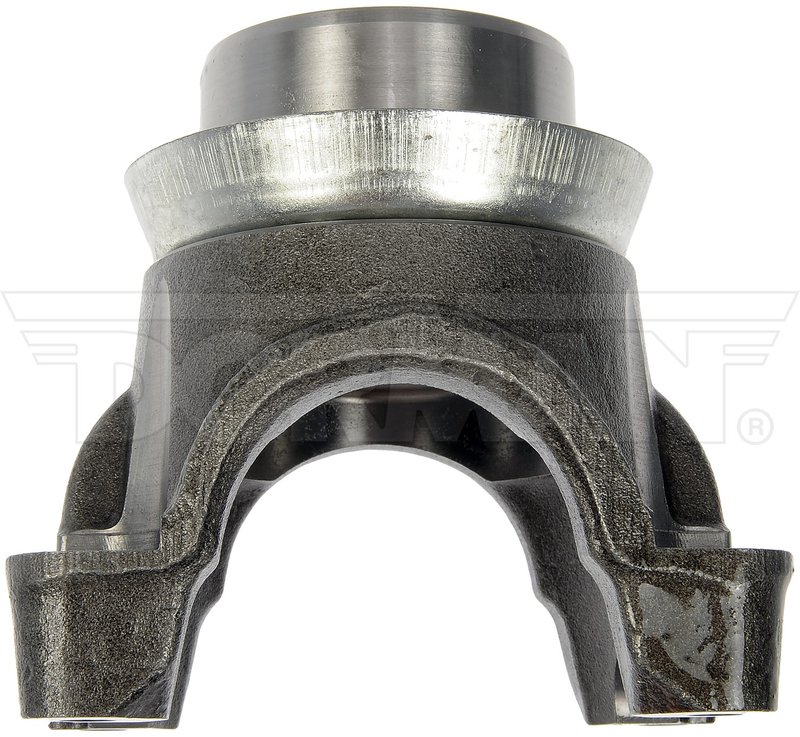

Dorman 697-547 Drive Shaft Pinion Yoke - Rear Driveshaft at Rear Axle

Durable Drive Shaft Pinion Yoke for Chevrolet, Dodge, Ford, and GMC

The Dorman 697-547 Drive Shaft Pinion Yoke is engineered to provide reliable driveline performance for a range of heavy-duty vehicles. Designed with precision and constructed from carbon steel, this pinion yoke offers strength and durability for demanding applications.

• Material: High-strength carbon steel construction
• Length: 110.1 mm for accurate fitment
• Color: Silver finish for corrosion resistance
• Inner spline quantity: 35 splines for secure connection
• Flange mount hole quantity: 4 holes with 7.94 mm diameter
• Flange thickness: 106.24 mm for structural integrity
• Splined bore diameter: 63.5 mm
• Spline count: 37 with 51.6 mm inside diameter
• Universal joint style: Standard replacement (no universal joint included)
• Package includes: 1 pinion yoke

Technical Details and Compatibility

The Dorman 697-547 pinion yoke is designed to fit a variety of Chevrolet, Dodge, Ford, and GMC models, including Chevrolet B3500, C35, C3500, and Express 3500; Dodge Ram 2500, Ram 2500 Van, and Ram 3500; Ford F-350, F-350 Super Duty, E-350 Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, E-350 Super Duty; and GMC G30, K3500, P30, P3500, and R3500. Its precise spline count and bore diameter ensure a secure and reliable connection to the drive shaft assembly, maintaining driveline integrity under heavy loads.

Common Applications and Problem Resolution

• Replacement of worn or damaged pinion yokes in heavy-duty trucks and vans
• Restoring driveline stability and reducing vibration issues
• Addressing flange mount hole wear or deformation
• Ensuring proper spline engagement to prevent driveline slippage
• Maintaining alignment and connection between the drive shaft and differential

Installation Notes and Tips

When installing the Dorman 697-547 Drive Shaft Pinion Yoke, ensure the splines are clean and free of debris for proper engagement. Verify that the flange mount holes align correctly with the corresponding bolts on the drive shaft flange. This pinion yoke does not include universal joints, bearing straps, u-bolts, or bearing caps, so use existing hardware or source replacements as needed. Proper torque specifications should be followed to avoid premature wear or failure.

Quality Assurance and Warranty

Dorman manufactures this pinion yoke from carbon steel to meet OEM standards for durability and performance. While specific warranty details are not provided, Dorman parts typically undergo rigorous quality control to ensure reliable operation in demanding automotive applications.
