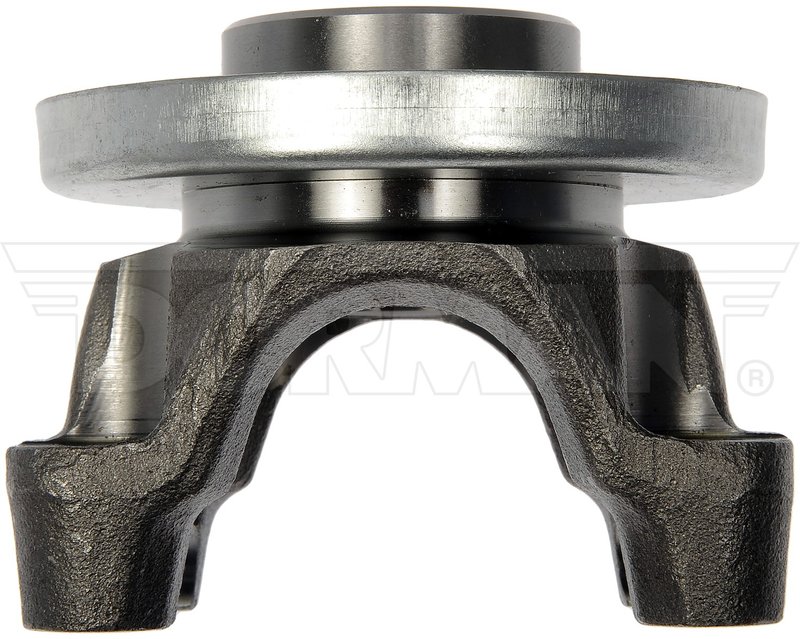

Dorman 697-553 Differential End Yoke - Rear Differential

Durable Differential End Yoke for Chevrolet, GMC, and Pontiac Vehicles

The Dorman 697-553 Differential End Yoke is engineered to provide reliable driveline performance for a range of Chevrolet, GMC, and Pontiac models. Crafted from carbon steel, this silver-finished yoke offers strength and precision fitment for your vehicle's differential assembly.

• Constructed from durable carbon steel for long-lasting strength
• 30 splines ensure secure connection to the pinion shaft
• Length of 3.64 inches and inside diameter of 1.31 inches for precise fit
• Includes 4 mounting holes with 0.118-inch diameter for secure installation
• Package contains 1 pinion yoke and 1 dust shield for added protection

Technical Specifications and Features

The Dorman 697-553 Differential End Yoke is designed with a 30-spline count to match the pinion shaft specifications of compatible vehicles. Measuring 3.64 inches in length and 6 inches in width, this yoke fits securely with an inside diameter of 1.31 inches. The silver finish not only provides corrosion resistance but also complements the driveline components. While mounting hardware, U-bolts, and universal joints are not included, the yoke features four mounting holes sized at 0.118 inches in diameter to facilitate proper attachment.

Compatible Chevrolet, GMC, and Pontiac Models

This differential end yoke is compatible with a wide range of Chevrolet, GMC, and Pontiac vehicles, including but not limited to the Chevrolet C10, C1500, Blazer, Camaro, and Impala; GMC Sierra and Suburban models; and Pontiac Firebird and GTO. The part number 697-553 ensures you receive the correct fitment for your specific model and year.

Common Applications and Problem Resolution

• Replaces worn or damaged differential end yokes causing driveline vibrations
• Restores secure connection between the pinion shaft and driveshaft
• Eliminates noise and play in the differential assembly
• Prevents premature wear of universal joints due to improper fit
• Protects differential components with included dust shield

Installation Notes and Tips

Installation of the Dorman 697-553 Differential End Yoke requires removal of the driveshaft and differential pinion shaft. Ensure the spline count and dimensions match your vehicle’s specifications before installation. Use appropriate torque specifications for mounting bolts and verify the dust shield is properly seated to prevent contamination. Since mounting hardware is not included, retain or source compatible bolts for secure attachment.

Quality Assurance and Warranty

Dorman manufactures this differential end yoke to meet or exceed OEM standards, using carbon steel for durability and performance. While specific warranty details may vary, Dorman typically offers limited warranties covering defects in material and workmanship. Refer to Dorman’s official warranty policy for complete information.
