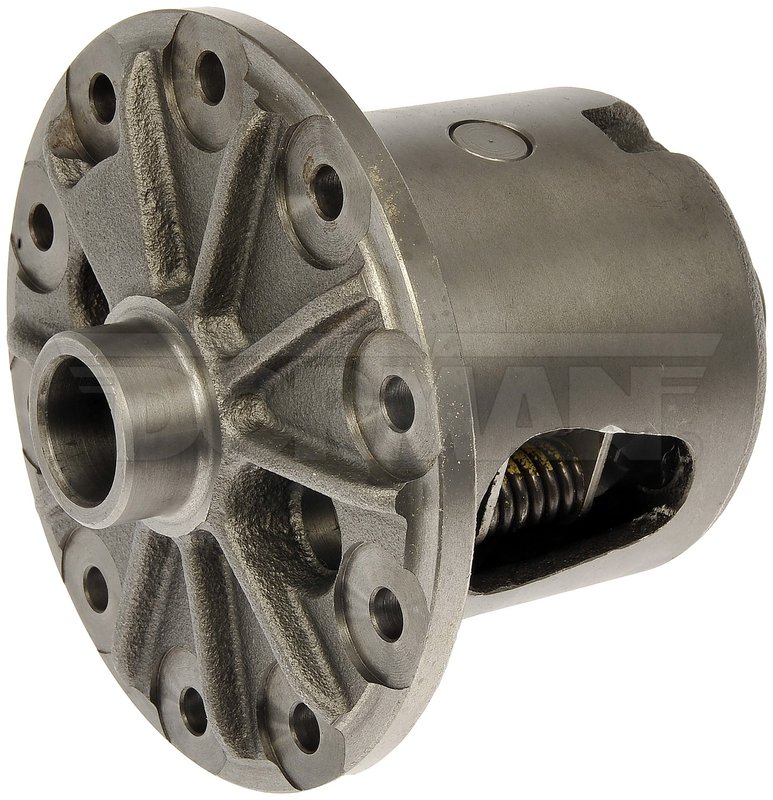

Dorman 697-800 Differential Carrier - Rear

Dorman 697-800 Limited-Slip Differential Carrier

Dorman 697-800 is a replacement limited-slip differential carrier assembly for rear axle applications that need restored traction and smooth power transfer. It addresses wear from hard use and poor lubrication by replacing the carrier housing, spider gears, differential pins, and clutches with all-new components.

Compatible With Chevrolet Silverado, Tahoe, GMC Sierra, Yukon, and other rear differential applications listed below, this cast iron carrier is built for 28-spline setups and common GM axle configurations.

Key Features

• Limited-slip differential carrier assembly for rear axle service
• Cast iron construction for strength and durability
• 28 axle shaft spline quantity
• Includes new spider gears, differential pins, clutches, and carrier housing
• Direct replacement for worn limited-slip differential components
• Cross-reference part numbers include 742G715D and 25824246

Detailed Description

This Dorman differential carrier is built to restore original limited-slip operation when the factory unit has worn out from mileage, load, or lubrication breakdown. The assembly is intended for rear differential service and is listed across a wide range of GM trucks, SUVs, vans, and performance cars, including Chevrolet Silverado 1500, GMC Sierra 1500, and Cadillac Escalade applications. Part number 697-800 is a practical replacement when the carrier housing and internal limited-slip components are no longer performing as they should.

The cast iron housing provides a solid foundation for the internal gearset, while the new clutches and spider gears help recover consistent torque transfer between the axle shafts. This makes 697-800 a strong match for rear-end rebuilds on vehicles with 28-spline axles and the specified ring gear and axle ratio combinations.

What It Helps Fix

• Chatter, slipping, or inconsistent limited-slip action
• Worn spider gears or differential pins
• Loss of traction from degraded clutch packs
• Noisy or rough rear differential operation
• Carrier wear caused by poor lubrication or heavy-duty use

Installation Notes and Fitment

Fits 2015-2018 Chevrolet Silverado 1500, rear, with 3.23 or 3.42 axle ratio; Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline. Fits 2015-2018 GMC Sierra 1500, rear, with 3.23 or 3.42 axle ratio; Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline. Fits 2015-2018 GMC Yukon and Yukon XL, rear, with 3.23 or 3.42 axle ratio; Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline.

• Fits 2015-2018 Chevrolet Silverado 2500, rear, with 3.23 or 3.42 axle ratio; Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline.
• Fits 2015-2018 Chevrolet Tahoe, rear, with 3.23 or 3.42 axle ratio; Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline.
• Fits 2015-2016 Cadillac Escalade, rear, with 3.23 or 3.42 axle ratio; Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline.
• Fits 2015 Cadillac Escalade ESV, rear, with 3.23 or 3.42 axle ratio; Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline.
• Fits 2014 Cadillac Escalade and Escalade ESV, rear, 28 spline.
• Fits 2008-2014 Chevrolet Express 1500 and Express 2500, rear, Saginaw-American Axle; 10 bolt differential cover; 3.42 or 3.73 axle ratio; 8.5 in. or 8.625 in. ring gear; 28 spline.
• Fits 2014 Chevrolet Silverado 1500, rear, 3.42 axle ratio; 28 spline.
• Fits 2014 Chevrolet Silverado 2500 HD and Silverado 3500 HD, rear, 28 spline.
• Fits 2014 Chevrolet Suburban 1500 and Tahoe, rear, 28 spline.
• Fits 2009-2013 Cadillac Escalade, Escalade ESV, and Escalade EXT, rear, Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline.
• Fits 2009-2013 Chevrolet Avalanche, Silverado 1500, Silverado 2500, Suburban 1500, Suburban 2500, and Tahoe, rear, Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline.
• Fits 2009-2013 GMC Sierra and Sierra 1500, rear, Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline.
• Fits 2009-2013 GMC Yukon, Yukon XL 1500, and Yukon XL 2500, rear, Saginaw-American Axle; 10 bolt differential cover; 8.5 in. or 8.625 in. ring gear; 28 spline.
• Fits 2012 Chevrolet Colorado and GMC Canyon, rear, with 3.42, 3.73, or 4.10 axle ratio and the listed RPO chassis packages; 28 spline.
• Fits 2009-2011 Chevrolet Colorado and GMC Canyon, rear, with 3.42 or 3.73 axle ratio; 28 spline.
• Fits 2008-2010 Hummer H3 and 2009-2010 Hummer H3T, rear, 28 spline; 8.5 in. or 8.625 in. ring gear.
• Fits 2009 Chevrolet Trailblazer and 2009 GMC Envoy, rear, with cylinder deactivation; 3.42 or 3.73 axle ratio; 28 spline.
• Fits 2005-2009 Saab 9-7x, rear, 30 spline; 8.5 in. or 8.625 in. ring gear.
• Fits 1971-1988 Chevrolet Camaro and 1971-1988 Pontiac Firebird, rear, with RPO code G80 (Positraction/Limited Slip).

Before installation, verify axle ratio, spline count, ring gear size, axle housing type, and RPO code where applicable. This part number 697-800 is listed for rear applications only and should be matched to the exact differential configuration on the vehicle.

Quality Assurance

Dorman supplies replacement drivetrain components for service and repair applications, and this carrier assembly is built as a direct-fit replacement for the listed vehicles and axle configurations. Part number 697-800 is supported by OE-style interchange references for application matching.
