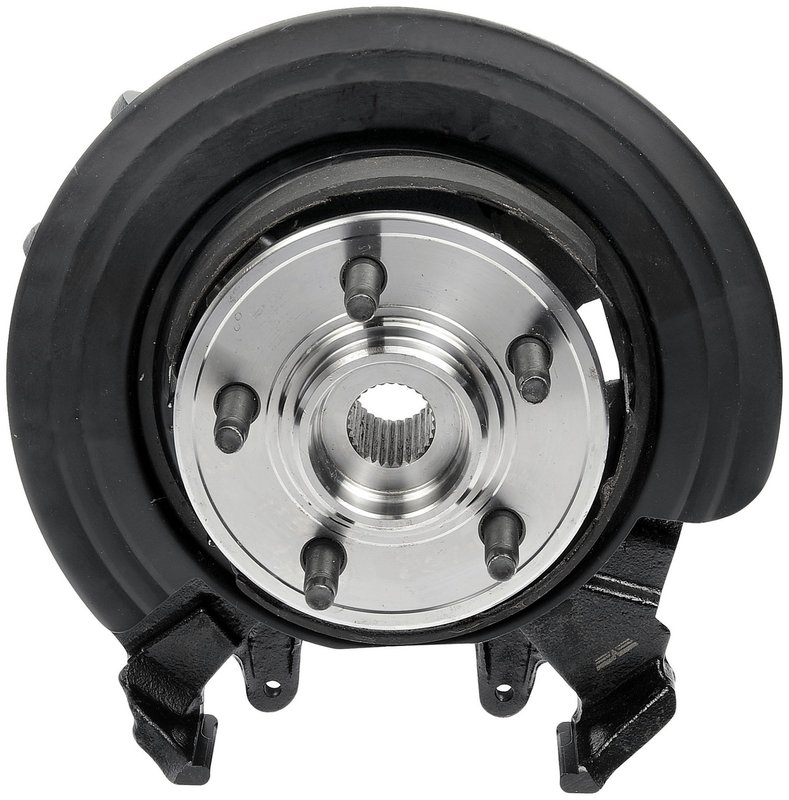

Dorman 698-012 Suspension Knuckle Kit - Rear Right

Durable Suspension Knuckle Kit for Ford Explorer and Mercury Mountaineer

The Dorman 698-012 Suspension Knuckle Kit is engineered to restore the suspension system of your Ford Explorer or Mercury Mountaineer. Designed with precision, this kit includes all necessary components to ensure proper fit and function for vehicles equipped with anti-lock braking systems.

Key Features of the Dorman 698-012 Suspension Knuckle Kit

• Includes 1 knuckle, 1 bearing, 1 hub, 1 backing plate, and parking brake shoes
• 29 spline quantity for accurate drivetrain engagement
• Flange included with a circular shape and 6.29-inch diameter
• Five flange bolt holes and five wheel studs (size 10) included
• Wheel pilot diameter of 2.24 inches and brake pilot diameter of 3.22 inches
• Hub pilot diameter measures 1.85 inches for precise alignment
• Compatible with vehicles equipped with anti-lock braking system sensors (ABS sensor type)

Detailed Description of the Suspension Knuckle Kit

This suspension knuckle kit from Dorman is designed specifically for Ford Explorer and Mercury Mountaineer models, providing a direct replacement for worn or damaged components. The kit includes a knuckle, bearing, hub, backing plate, and parking brake shoes, ensuring a comprehensive repair solution. The knuckle features a 29-spline shaft for secure drivetrain connection and a circular flange with five bolt holes, accommodating the included flange bolts and wheel studs. The wheel studs are size 10 with a quantity of five, matching factory specifications. The kit supports vehicles equipped with anti-lock braking systems, although the ABS sensor is not included. Precise pilot diameters for the wheel, brake, and hub ensure proper fitment and alignment during installation.

Common Applications and Issues Addressed

• Replacement of worn or damaged suspension knuckles on Ford Explorer and Mercury Mountaineer
• Restoring proper wheel alignment and suspension geometry
• Resolving issues related to wheel bearing noise or play
• Addressing brake backing plate damage or parking brake shoe wear
• Ensuring compatibility with ABS-equipped vehicles for safe braking performance

Installation Notes and Tips

• Verify vehicle compatibility with Ford Explorer or Mercury Mountaineer models before installation
• Ensure all included components (knuckle, bearing, hub, backing plate, parking brake shoes) are installed together for optimal performance
• Use proper torque specifications for flange bolts and wheel studs to maintain safety and reliability
• Check ABS sensor connections and functionality after installation, as the sensor is not included in this kit
• Professional installation is recommended to ensure correct alignment and suspension operation

Quality Assurance and Warranty Information

Dorman manufactures the 698-012 Suspension Knuckle Kit to meet or exceed OEM standards for fit and function. Each component undergoes rigorous quality control to ensure durability and reliability. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or contact the manufacturer for exact warranty terms.
