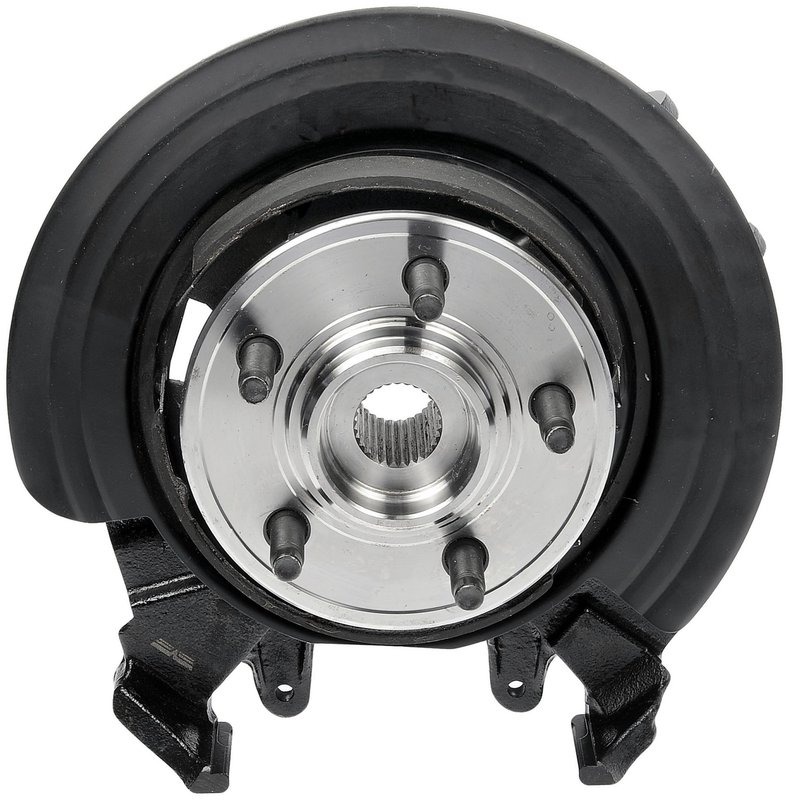

Dorman 698-013 Suspension Knuckle Kit - Rear Left

Durable Suspension Knuckle Kit for Ford Explorer and Mercury Mountaineer

The Dorman 698-013 Suspension Knuckle Kit is engineered to restore the suspension system of your Ford Explorer or Mercury Mountaineer. Designed with precision, this kit includes all necessary components to ensure proper fit and function for vehicles equipped with anti-lock braking systems.

Key Features of the Dorman 698-013 Suspension Knuckle Kit

• Includes 1 knuckle, 1 bearing, 1 hub, 1 backing plate, and parking brake shoes for a complete suspension repair
• 29 spline quantity for accurate drivetrain engagement
• Flange included with a circular shape and 6.29-inch diameter for secure mounting
• Five flange bolt holes and five wheel studs sized at 10mm for reliable attachment
• Wheel pilot diameter of 2.24 inches and brake pilot diameter of 3.22 inches for precise alignment
• Hub pilot diameter measures 1.85 inches to fit hub assembly correctly
• Equipped for vehicles with anti-lock braking system (ABS) sensor type; note ABS sensor not included
• Flange bolts and wheel studs included for convenient installation

Detailed Description of the Suspension Knuckle Kit

This Dorman suspension knuckle kit (part number 698-013) is specifically designed for Ford Explorer and Mercury Mountaineer models. The kit provides a complete assembly including the knuckle, bearing, hub, backing plate, and parking brake shoes, ensuring a comprehensive replacement solution. The knuckle features a 29-spline shaft for proper drivetrain connection and a circular flange with five bolt holes, supporting a secure and stable fit. Wheel studs and flange bolts are included, simplifying the installation process. The kit is compatible with vehicles equipped with an anti-lock braking system sensor, although the sensor itself is not part of the package. Precise pilot diameters for the wheel, brake, and hub ensure proper alignment and smooth operation.

Common Issues Addressed by This Suspension Knuckle Kit

• Worn or damaged suspension knuckle causing steering instability
• Excessive play or noise from wheel bearing failure
• Corroded or broken wheel studs affecting wheel security
• Misalignment due to flange or hub damage
• Parking brake malfunction related to worn brake shoes or backing plate

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before beginning installation
• Verify compatibility with your specific Ford Explorer or Mercury Mountaineer model year
• Use included flange bolts and wheel studs to maintain proper torque specifications
• Inspect ABS sensor wiring and connectors during installation; sensor is not included in this kit
• Check alignment and wheel bearing preload after installation for optimal performance

Quality Assurance and Warranty Information

Dorman suspension components are manufactured to meet or exceed OEM standards for fit and function. The 698-013 Suspension Knuckle Kit undergoes rigorous quality control to ensure durability and reliability. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or contact the manufacturer for exact warranty terms.
