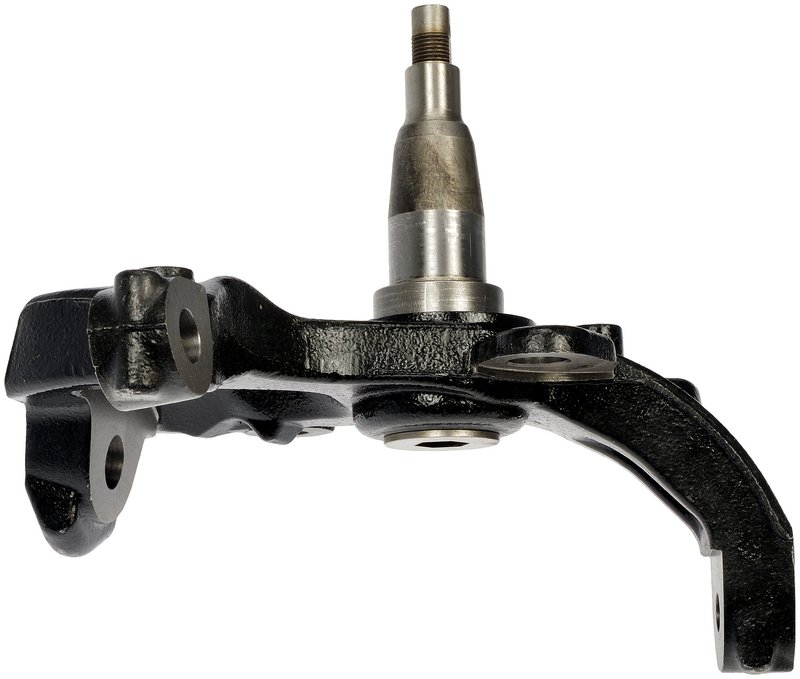

Dorman 698-196 Steering Knuckle - Front Right
| Brand | Dorman 698-196 |
|---|---|
| Position | Front Right |
| Material | Acero |
| Material | Steel |
| Length | 287.6 |
| Construction | Cast |
| Construction | Fundido |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Width | 261 |
| Instruction Manual Included | No |
| Instruction Manual Included | Non |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Height | 255 |
| Sensor Hole Diameter | 22 |
| Caliper Mounting Hole Quantity | 2 |
| Caliper Mounting Hole Diameter | 15 |
| Axle Included | No |
| Axle Included | Non |
| Contenidos del paquete | 1 articulado de la dirección |
| Diámetro de un cilindro del eje pivote de la dirección | No |
| Grado del artículo | Reemplazo estándar |
| Hub Included | No |
| Hub Included | Non |
| Item Grade | Standard replacement |
| King Pin Bore | No |
| King Pin Bore | Non |
| Package Contents | 1 steering knuckle |
| Fits | Ford and Lincoln · 24 vehicles |
Standard replacement. A reliable replacement for the original steering knuckle.
Cast steel construction. Built for strength and dependable steering support.
Precision-engineered. Rigorously tested for consistent performance and fit.
Cross-references 2L3Z3105AA and F75Z3105AB for the same application. See all 2.
Dorman 698-196 Steering Knuckle
Dorman 698-196 is a steel steering knuckle built as a standard replacement for the original front-right knuckle on select Ford and Lincoln trucks and SUVs. It is precision-engineered and tested for dependable fitment on the listed applications, including Ford F-150, Ford Expedition, Lincoln Navigator, and Lincoln Blackwood.
Key Features
- Steel construction with a cast design for OE-style replacement strength
- Black finish
- Front right position
- Sensor hole diameter: 22 mm
- Caliper mounting: 2 holes with 15 mm diameter
- Standard replacement part for steering and suspension service
- Compatible with select 1997-2004 Ford and Lincoln applications
Detailed Description
This steering knuckle is engineered for direct replacement on specific vehicles and is built to restore the connection between the wheel hub, suspension, and steering components. Dorman 698-196 is listed for 2004 Ford F-150 Heritage, 1997-2003 Ford F-150, 2002-2003 Lincoln Blackwood, 1997-2002 Ford Expedition, 1998-2002 Lincoln Navigator, and 1997-1999 Ford F-250 under 8,500 lb. GVW, all in the front right position. This part cross-references OE numbers 2L3Z3105AA and F75Z3105AB for the same application.
What It Helps Address
- Front-end steering looseness caused by a worn or damaged knuckle
- Brake caliper mounting issues at the front right corner
- Wheel-end alignment problems after suspension or steering damage
- Replacement needs after corrosion, impact, or cracked castings
- Service repairs on Ford F-150, Expedition, Navigator, and Blackwood front-right assemblies
Installation Notes and Tips
Verify the vehicle’s year, make, model, and front-right application before installation. Confirm sensor hole diameter and caliper mounting dimensions against the original part, and transfer any reusable components as required by the vehicle setup. Professional installation and a post-repair alignment are recommended after steering knuckle replacement.
Quality Assurance
Dorman manufactures this steering knuckle as a tested replacement part for the listed vehicles. The cast steel construction and application-specific engineering support consistent fit and function for the intended front-right service use.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Ford | F-150 Heritage | RWD | Front Right | — |
| 2003 | Ford | F-150 | RWD | Front Right | — |
| 2003 | Lincoln | Blackwood | — | Front Right | — |
| 2002 | Ford | Expedition | RWD | Front Right | — |
| 2002 | Ford | F-150 | RWD | Front Right | — |
| 2002 | Lincoln | Blackwood | — | Front Right | — |
| 2002 | Lincoln | Navigator | RWD | Front Right | — |
| 2001 | Ford | Expedition | RWD | Front Right | — |
| 2001 | Ford | F-150 | RWD | Front Right | — |
| 2001 | Lincoln | Navigator | RWD | Front Right | — |
| 2000 | Ford | Expedition | RWD | Front Right | — |
| 2000 | Ford | F-150 | RWD | Front Right | — |
| 2000 | Lincoln | Navigator | RWD | Front Right | — |
| 1999 | Ford | Expedition | RWD | Front Right | — |
| 1999 | Ford | F-150 | RWD | Front Right | — |
| 1999 | Ford | F-250 | RWD | Front Right | Under 8,500 Lb. GVW |
| 1999 | Lincoln | Navigator | RWD | Front Right | — |
| 1998 | Ford | Expedition | RWD | Front Right | — |
| 1998 | Ford | F-150 | RWD | Front Right | — |
| 1998 | Ford | F-250 | RWD | Front Right | Under 8,500 Lb. GVW |
| 1998 | Lincoln | Navigator | RWD | Front Right | — |
| 1997 | Ford | Expedition | RWD | Front Right | — |
| 1997 | Ford | F-150 | RWD | Front Right | — |
| 1997 | Ford | F-250 | RWD | Front Right | Under 8,500 Lb. GVW |
