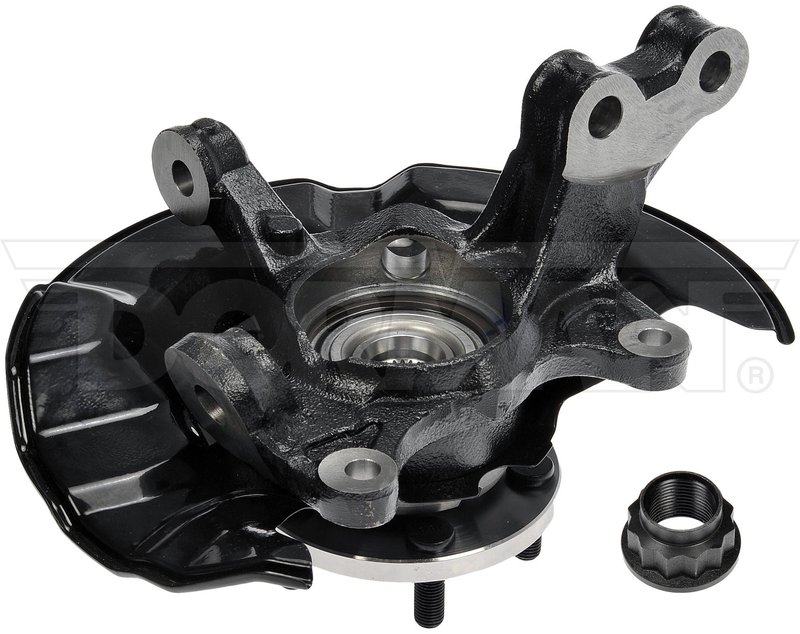

Dorman 698-381 Steering Knuckle Kit - Front Left
Overview of Dorman Steering Knuckle Kit 698-381
The Dorman Steering Knuckle Kit 698-381 is engineered for Toyota Corolla and Matrix models, providing a reliable solution for steering and suspension needs. This kit includes essential components designed to restore proper wheel alignment and handling performance.
- Compatible with Toyota Corolla and Matrix vehicles
- Includes steering knuckle, brake dust shield, hub assembly, and spindle
- 26 spline quantity for precise fitment
- Circular flange with 5 bolt holes and flange bolts included
- Supports Anti Lock Braking System (ABS) with sensor compatibility
- Wheel pilot diameter of 2.12 inches and brake pilot diameter of 2.16 inches
- Hub pilot diameter of 1.57 inches for secure hub mounting
- Flange bolt hole diameter and bolt circle diameter of 3.93 inches
Detailed Product Description
The Dorman 698-381 steering knuckle kit is designed specifically for Toyota Corolla and Matrix models, ensuring a precise fit and reliable performance. The kit features a 26-spline steering knuckle that interfaces accurately with the vehicle’s drivetrain. The included circular flange has five bolt holes with flange bolts provided, facilitating secure attachment to the wheel hub assembly. The flange offset measures 1.57 inches, and the flange diameter is 4.92 inches, matching OEM specifications for proper wheel alignment.
This kit supports vehicles equipped with an Anti Lock Braking System (ABS) sensor, although the ABS sensor itself is not included. The wheel pilot diameter of 2.12 inches and brake pilot diameter of 2.16 inches ensure proper centering of the wheel and brake components. The hub pilot diameter of 1.57 inches provides a stable mounting surface for the hub assembly. Note that wheel studs are not included, but the kit accommodates five 10mm wheel studs.
Common Applications and Issues Addressed
- Replacement of worn or damaged steering knuckles on Toyota Corolla and Matrix
- Correction of wheel misalignment or uneven tire wear
- Restoration of proper ABS sensor function related to steering components
- Repair of damaged brake dust shields to protect braking components
- Resolution of hub assembly issues affecting wheel stability
Installation Notes and Tips
- Ensure compatibility with your specific Toyota Corolla or Matrix model year before installation
- Use proper torque specifications for flange bolts and wheel studs to maintain safety and performance
- Inspect ABS sensor wiring and connectors during installation to avoid sensor errors
- Wheel studs must be sourced separately as they are not included in this kit
- Professional installation is recommended to ensure correct alignment and component fitment
Quality Assurance and Warranty
Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 698-381 steering knuckle kit undergoes rigorous quality control to ensure durability and reliable performance on Toyota Corolla and Matrix vehicles. Warranty coverage details can be obtained from the product documentation or manufacturer directly.
| Brand | Dorman |
|---|---|
| Part Number | 698-381 |
| Anti Lock Brake Sensor Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Bolt Circle Diameter | 3.93 in |
| Brake Pilot Diameter | 2.16 |
| Connector Quantity | 0 |
| Flange Bolt Hole Diameter | 3.93 |
| Flange Bolt Hole Quantity | 5 |
| Flange Bolts Included | Yes |
| Flange Diameter | 4.92 |
| Flange Included | Yes |
| Flange Offset | 1.57 |
| Flange Shape | Circular |
| Hub Pilot Diameter | 1.57 |
| Package Contents | 1 Steering Knuckle; 1 Brake Dust Shield; 1 Hub Assembly; 1 Spindle Nut |
| Spline Quantity | 26 |
| Wheel Pilot Diameter | 2.12 |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 10 |
| Wheel Studs Included | No |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Toyota | Corolla | Front Left | Built in U.S.A.; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | ||
| 2013 | Toyota | Matrix | 1.8L | L4 | Front Left | Steering knuckle kit with hub, bearing, and dust shield included. |
| 2012 | Toyota | Corolla | Front Left | Built in U.S.A.; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | ||
| 2012 | Toyota | Matrix | 1.8L | L4 | Front Left | Steering knuckle kit with hub, bearing, and dust shield included. |
| 2011 | Toyota | Corolla | Front Left | Built in U.S.A.; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | ||
| 2011 | Toyota | Matrix | 1.8L | L4 | Front Left | Steering knuckle kit with hub, bearing, and dust shield included. |
| 2010 | Toyota | Corolla | Front Left | Built in U.S.A.; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | ||
| 2010 | Toyota | Matrix | 1.8L | L4 | Front Left | Steering knuckle kit with hub, bearing, and dust shield included. |
| 2009 | Toyota | Corolla | Front Left | Built in U.S.A.; Loaded Knuckle; Includes Hub, Bearing, and Dust Shield | ||
| 2009 | Toyota | Matrix | 1.8L | L4 | Front Left | Steering knuckle kit with hub, bearing, and dust shield included. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
