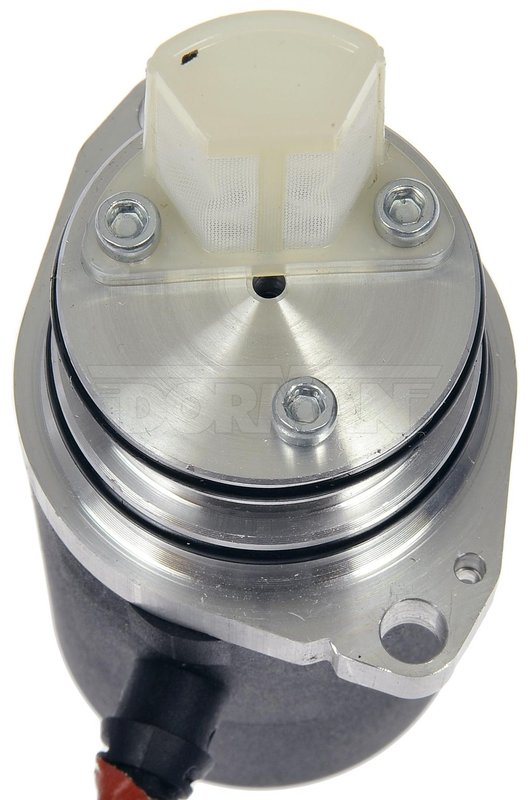

Dorman 699-009 AWD Coupling Oil Pump

Overview of Dorman 699-009 AWD Coupling Oil Pump

The Dorman 699-009 AWD Coupling Oil Pump is designed for select Audi and Volkswagen models, including the A3, A3 Quattro, Passat, R32, TT, and TT Quattro. This pump plays a critical role in maintaining proper oil flow within the all-wheel-drive coupling system, ensuring reliable driveline performance.

• Inlet thread diameter: 0.48 inches
• Outlet thread diameter: 0.32 inches
• Housing constructed from durable aluminum and plastic materials
• Includes one coupling oil pump per package
• Mounting hardware not included

Product Details and Specifications

The Dorman 699-009 AWD Coupling Oil Pump features a robust housing made from a combination of aluminum and plastic, providing a balance of strength and lightweight design. The inlet and outlet thread diameters are precisely engineered at 0.48 inches and 0.32 inches respectively, ensuring compatibility with the OEM driveline components of Audi and Volkswagen AWD systems. This pump is essential for maintaining the hydraulic pressure needed to engage the AWD coupling effectively.

Compatible Vehicles and Applications

This AWD coupling oil pump is compatible with various Audi and Volkswagen models, specifically the Audi A3, A3 Quattro, Passat, R32, TT, and TT Quattro. It is designed to replace the original pump in the AWD coupling system, restoring proper function and driveline reliability for these vehicles.

• Restores proper oil flow in AWD coupling systems
• Addresses issues with AWD engagement or slipping
• Helps resolve driveline noise related to coupling failure
• Prevents premature wear of AWD components
• Supports consistent AWD performance under varying driving conditions

Installation Notes and Tips

Installation of the Dorman 699-009 AWD Coupling Oil Pump requires removal of the existing pump from the AWD coupling assembly. Note that mounting hardware is not included, so retain original fasteners or source replacements as needed. Proper thread engagement of the inlet and outlet connections (0.48 inch and 0.32 inch respectively) is critical to avoid leaks. It is recommended to inspect the coupling housing and related components during installation to ensure overall system integrity.

Quality Assurance and Warranty

Dorman manufactures the 699-009 AWD Coupling Oil Pump to meet or exceed OEM specifications for fit and function. The combination of aluminum and plastic housing materials is selected for durability and corrosion resistance. While specific warranty details are not provided here, Dorman products typically come with a limited warranty covering defects in materials and workmanship. Verify warranty terms with the product documentation or supplier.
