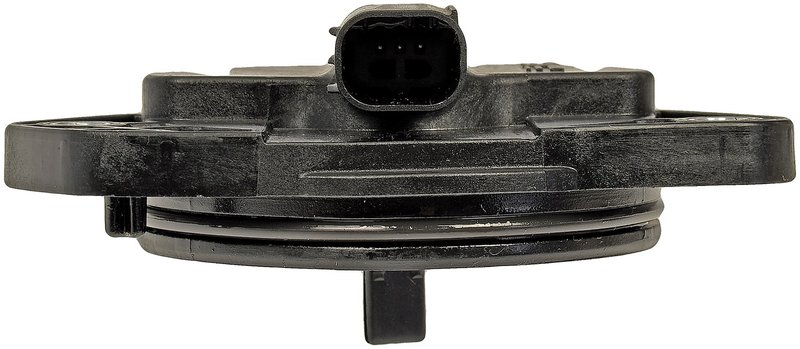

Dorman 699-997 Transfer Case Encoder Ring

Overview of Dorman Transfer Case Encoder Ring 699-997

The Dorman 699-997 transfer case encoder ring is designed for precise operation in Dodge Durango and Jeep Grand Cherokee vehicles. This sensor component plays a critical role in the transfer case system, ensuring accurate gear position feedback for optimal drivetrain performance.

• Inside diameter: 69.5 mm
• Outside diameter: 69.5 mm
• Thickness: 9.5 mm
• Terminal quantity: 3 pins
• Housing material: durable plastic
• Package includes one transfer case encoder ring

Detailed Product Description

The Dorman transfer case encoder ring 699-997 features a precise 69.5 mm inside and outside diameter with a thickness of 9.5 mm, making it compatible with specific transfer case assemblies in Dodge Durango and Jeep Grand Cherokee models. Constructed with a plastic housing, this encoder ring is designed to withstand the operational environment within the transfer case. The component includes three pin-type terminals that facilitate reliable electrical connections for sensor feedback. This part is essential for the transfer case control module to accurately detect gear position and ensure smooth shifting between 2WD and 4WD modes.

Common Applications and Issues Addressed

• Restores accurate transfer case gear position sensing
• Resolves erratic or delayed 4WD engagement
• Eliminates transfer case warning lights related to sensor faults
• Prevents drivetrain binding caused by incorrect gear feedback
• Supports proper operation of transfer case control systems in Dodge Durango and Jeep Grand Cherokee

Installation Notes and Tips

When installing the Dorman 699-997 transfer case encoder ring, ensure the transfer case is clean and free of debris to avoid sensor interference. Handle the plastic housing carefully to prevent damage. Verify the three-pin terminal connections are secure and free of corrosion. It is recommended to consult the vehicle’s service manual for specific transfer case disassembly and reassembly procedures to maintain proper alignment and function.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications for fit and function. The 699-997 transfer case encoder ring undergoes quality checks to ensure durability and reliable performance in Dodge Durango and Jeep Grand Cherokee vehicles. Warranty coverage details should be confirmed through the product packaging or Dorman’s official documentation.
