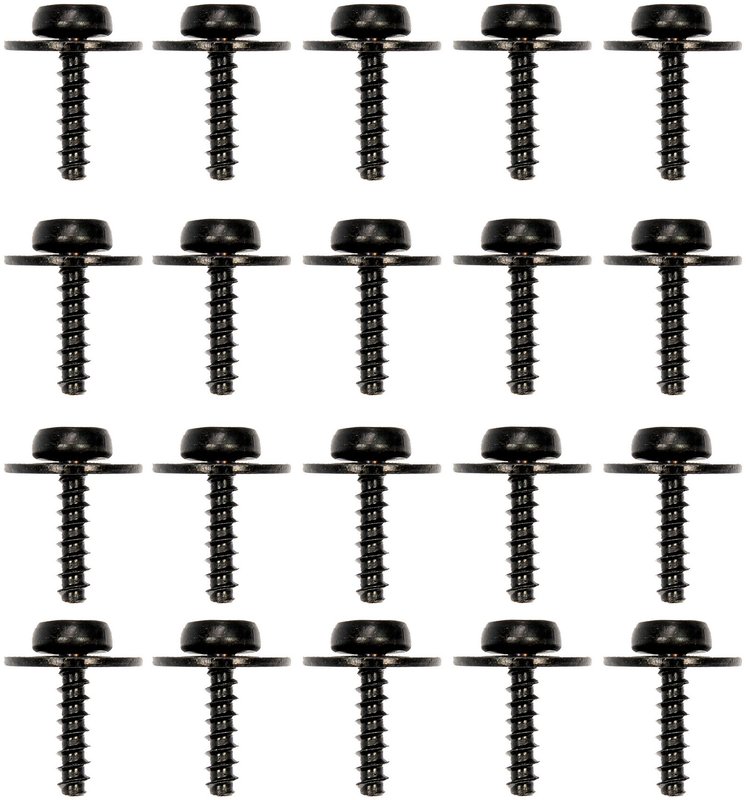

Dorman 700-043 Splash Shield Retainer - Lower, Lower Front or Upper
| Brand | Dorman 700-043 |
|---|---|
| Position | Lower, Lower Front, and Upper |
| Material | Acero |
| Material | Steel |
| Head Diameter | 19.88 |
| Thread Direction | Clockwise |
| Thread Direction | En sentido horario |
| Head Shape | Pan head sems |
| Head Shape | Sems de cabeza troncocónica |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Shank Length | 18.5 |
| Finish | Black |
| Finish | Negro |
| Finish | Noir |
| Type | De contacto |
| Type | Mating |
| Heat Hardened | No |
| Heat Hardened | Non |
| Specialty | No |
| Specialty | Non |
| Self Drilling | No |
| Self Drilling | Non |
| Self Tapping | Oui |
| Self Tapping | Sí |
| Self Tapping | Yes |
| Thread Length | 18.19 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Thread Type | Coarse |
| Thread Type | Grueso |
| Fits | Ford and Lincoln · 38 vehicles |
Steel construction. Provides durable fastening for splash shield hardware.
Self-tapping design. Cuts its own threads for easier installation.
SEMS head style. Includes an attached washer for a secure hold.
Cross-references 22348 and W702413S307 for the same application. See all 2.
Dorman 700-043 Splash Shield Retainer
Dorman 700-043 is a metric, black steel splash shield retainer built for body hardware applications where a secure, corrosion-resistant fastener is needed. This Torx-drive, self-tapping SEMS screw uses a pan head design with an attached washer for a clean, stable fastening point on splash shields and related panels.
Compatible With Ford F-150, Ford Transit Connect, Ford Escape, Lincoln MKC, Ford C-Max, and Ford Focus applications that call for an M5-2.2 x 18.5 mm retainer. The Dorman 700-043 is a direct-fit style replacement for common splash shield and underbody fastening needs.
Key Features
- Brand: Dorman
- Part number: 700-043
- Steel construction with black finish
- Metric thread size: M5-2.2
- Torx head drive for controlled installation
- Self-tapping thread design
- Pan head SEMS style with attached washer
- Clockwise thread direction
- Standard replacement grade
Detailed Description
This splash shield retainer is designed around the listed dimensions and fastening style rather than a universal fit. The coarse, self-tapping thread helps it engage properly in body hardware locations where the original retainer has worn, stripped, or corroded. Its black steel construction and black zinc plating support everyday underbody use, while the SEMS head style helps distribute load at the mounting point.
Use Dorman 700-043 when servicing splash shields, lower body panels, and similar fastening points on 2012-2020 Ford Focus, 2013-2018 Ford C-Max, 2013-2020 Ford Escape, 2014-2020 Ford Transit Connect, 2015-2020 Ford F-150, and 2015-2019 Lincoln MKC applications. This part cross-references Monroe Shocks & Struts (e.g., 22348, W702413S307) for the same application.
What It Helps Fix
- Loose or missing splash shield fasteners
- Rattling or vibrating lower body panels
- Stripped mounting points on plastic or sheet-metal retainers
- Corroded or damaged original hardware
- Poor panel retention after underbody service
Installation Notes and Tips
Verify thread size, head style, and mounting location before installation. Match the Torx drive and M5-2.2 callout to the original fastener specification, and confirm the position listed for your vehicle, such as upper, lower, or lower front. For best results, inspect the mounting hole and surrounding panel for damage before installing the retainer.
- Fits 2015-2020 Ford F-150, upper
- Fits 2014-2020 Ford Transit Connect, N/A
- Fits 2019 Ford Escape, lower front
- Fits 2015 Ford Escape, lower front
- Fits 2015-2019 Lincoln MKC, lower
- Fits 2013-2018 Ford C-Max, lower front
- Fits 2016-2018 Ford Escape, lower
- Fits 2013-2014 Ford Escape, lower
- Fits 2016-2018 Ford Focus, N/A
- Fits 2015 Ford Focus, lower front
- Fits 2012-2014 Ford Focus, lower
Quality Assurance
Dorman supplies a broad range of automotive fasteners in multiple sizes, lengths, and thread styles to support accurate replacement selection. Part number 700-043 is built as a standard replacement fastener for body hardware applications where the original retainer specification must be matched.
| Year | Make | Model | Submodel | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Ford | F-150 | Raptor | — | Upper | Packaging Type: Box |
| 2020 | Ford | Transit Connect | — | — | N/A | Packaging Type: Box |
| 2019 | Ford | Escape | — | — | Lower Front | Package Quantity: 20 |
| 2019 | Ford | F-150 | Raptor | — | Upper | Packaging Type: Box |
| 2019 | Ford | Transit Connect | — | — | N/A | Packaging Type: Box |
| 2019 | Lincoln | MKC | — | — | Lower | Package Quantity: 20 |
| 2018 | Ford | C-Max | — | — | Lower Front | Package Quantity: 20 |
| 2018 | Ford | Escape | — | — | Lower | Package Quantity: 20 |
| 2018 | Ford | F-150 | Raptor | — | Upper | Packaging Type: Box |
| 2018 | Ford | Focus | RS | — | N/A | Packaging Type: Box |
| 2018 | Ford | Transit Connect | — | — | N/A | Packaging Type: Box |
| 2018 | Lincoln | MKC | — | — | Lower | Package Quantity: 20 |
| 2017 | Ford | C-Max | — | — | Lower Front | Package Quantity: 20 |
| 2017 | Ford | Escape | — | — | Lower | Package Quantity: 20 |
| 2017 | Ford | F-150 | — | — | Upper | Packaging Type: Box |
| 2017 | Ford | Focus | RS | — | N/A | Packaging Type: Box |
| 2017 | Ford | Transit Connect | — | — | N/A | Packaging Type: Box |
| 2017 | Lincoln | MKC | — | — | Lower | Package Quantity: 20 |
| 2016 | Ford | C-Max | — | — | Lower Front | Package Quantity: 20 |
| 2016 | Ford | Escape | — | — | Lower | Package Quantity: 20 |
| 2016 | Ford | F-150 | — | — | Upper | Packaging Type: Box |
| 2016 | Ford | Focus | RS | — | N/A | Packaging Type: Box |
| 2016 | Ford | Transit Connect | — | — | N/A | Packaging Type: Box |
| 2016 | Lincoln | MKC | — | — | Lower | Package Quantity: 20 |
| 2015 | Ford | C-Max | — | — | Lower Front | Package Quantity: 20 |
| 2015 | Ford | Escape | — | — | Lower Front | Package Quantity: 20 |
| 2015 | Ford | F-150 | — | — | Upper | Packaging Type: Box |
| 2015 | Ford | Focus | — | GAS | Lower Front | Package Quantity: 20 |
| 2015 | Ford | Transit Connect | — | — | N/A | Packaging Type: Box |
| 2015 | Lincoln | MKC | — | — | Lower | Package Quantity: 20 |
| 2014 | Ford | C-Max | — | — | Lower Front | Package Quantity: 20 |
| 2014 | Ford | Escape | — | — | Lower | Package Quantity: 20 |
| 2014 | Ford | Focus | — | FLEX | Lower | Package Quantity: 20 |
| 2014 | Ford | Transit Connect | — | — | N/A | Packaging Type: Box |
| 2013 | Ford | C-Max | — | — | Lower Front | Package Quantity: 20 |
| 2013 | Ford | Escape | — | — | Lower | Package Quantity: 20 |
| 2013 | Ford | Focus | — | FLEX | Lower | Package Quantity: 20 |
| 2012 | Ford | Focus | — | FLEX | Lower | Package Quantity: 20 |
