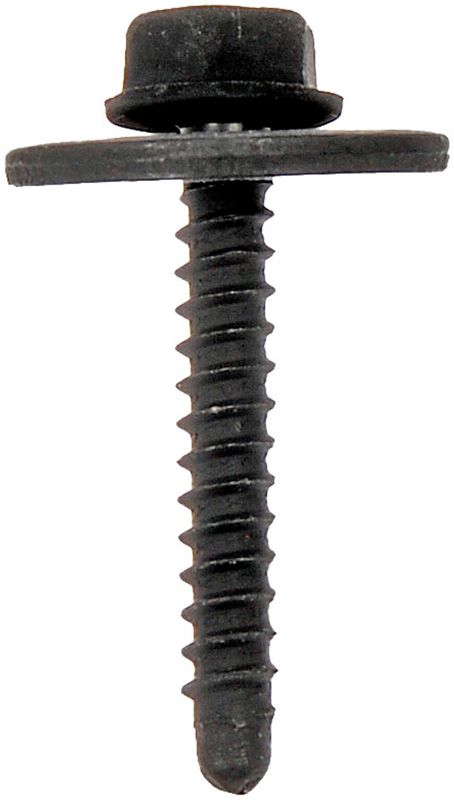

Dorman 700-044 Splash Shield Retainer
| Brand | Dorman 700-044 |
|---|---|
| Material | Acero |
| Material | Steel |
| Head Diameter | 8.9 |
| Thread Direction | Clockwise (right) |
| Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Head Shape | Hex |
| Head Shape | Hexagonal |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Shank Length | 2 |
| Finish | Black phosphate |
| Finish | Fosfato negro |
| Type | Splash shield screw |
| Type | Tornillo de protector del guardabarros |
| Heat Hardened | No |
| Heat Hardened | Non |
| Specialty | No |
| Specialty | Non |
| Self Drilling | Oui |
| Self Drilling | Sí |
| Self Drilling | Yes |
| Self Tapping | No |
| Self Tapping | Non |
| Thread Length | 25 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Thread Type | Media |
| Thread Type | Medium |
| SAE or Metric | Metric |
| Fits | Buick, Chevrolet, and Saturn · 20 vehicles |
Steel construction. Black phosphate finish helps resist corrosion.
Hex head design. Provides secure drive engagement for easier installation.
Self-drilling screw. Cuts its own path for fast fastening.
Cross-references 3050203, 10278296 and 11504059 for the same application. See all 15.
Dorman 700-044 Splash Shield Retainer
Dorman 700-044 is a metric splash shield screw built for securing underbody shields and related body hardware. It uses a hex head, black phosphate finish, and self-drilling design for direct fastening in supported applications, including Chevrolet Cruze, Buick Regal Sportback, Buick Regal TourX, and other listed vehicles.
Key Features
- Steel construction with a black phosphate finish for body hardware use
- Hex head with 7 mm head tool size for straightforward service access
- Metric thread size: M4.2 x .41
- Self-drilling splash shield screw design
- Clockwise right-hand thread direction
- Head diameter: 8.9 mm; shank diameter: 4 mm; shank length: 2 mm
- Standard replacement grade for splash shield fastening applications
- Fits vehicles including 2016-2019 Chevrolet Cruze and 2018-2020 Buick Regal Sportback
Product Details
This Dorman splash shield retainer is a hex-head, steel fastener made for body and undercar hardware retention. The M4.2 x .41 metric thread, medium thread type, and self-drilling profile support secure installation where a splash shield screw is specified. Dorman 700-044 is also listed for 2017-2019 Buick Cascada, 2018-2020 Buick Regal TourX, 2021 Chevrolet Trailblazer, 2007 Saturn Aura, and 2003-2007 Saturn Ion. This part cross-references OE numbers such as 11504059 and 24502796 for the same application.
Common Uses
- Loose or missing splash shield fastener at the wheel well or underbody
- Damaged hex-head screw during splash shield removal
- Corroded body hardware on plastic shield mounting points
- Replacement for stripped metric splash shield threads
- Service repair on Chevrolet Cruze, Buick Regal Sportback, and related listed models
Installation Notes
Verify thread size, head style, and mounting location before installation. Use the 7 mm hex tool size for service access and confirm the panel thickness and hole condition match the M4.2 x .41 screw specification. For fitment-based searches, this part fits 2016-2019 Chevrolet Cruze, 2018-2020 Buick Regal Sportback, 2018-2020 Buick Regal TourX, 2017-2019 Buick Cascada, 2021 Chevrolet Trailblazer, 2007 Saturn Aura, and 2003-2007 Saturn Ion.
Quality Assurance
Dorman supplies a broad range of automotive screws and fasteners in multiple diameters, lengths, and thread styles for repair work across body hardware applications. Part number 700-044 follows that catalog approach with a standard replacement design for supported splash shield fastening jobs.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2021 | Chevrolet | Trailblazer | Packaging Type: Box |
| 2020 | Buick | Regal Sportback | Packaging Type: Box |
| 2020 | Buick | Regal TourX | Packaging Type: Box |
| 2019 | Buick | Cascada | Packaging Type: Box |
| 2019 | Buick | Regal Sportback | Packaging Type: Box |
| 2019 | Buick | Regal TourX | Packaging Type: Box |
| 2019 | Chevrolet | Cruze | Packaging Type: Box |
| 2018 | Buick | Cascada | Packaging Type: Box |
| 2018 | Buick | Regal Sportback | Packaging Type: Box |
| 2018 | Buick | Regal TourX | Packaging Type: Box |
| 2018 | Chevrolet | Cruze | Packaging Type: Box |
| 2017 | Buick | Cascada | Packaging Type: Box |
| 2017 | Chevrolet | Cruze | Packaging Type: Box |
| 2016 | Chevrolet | Cruze | Packaging Type: Box |
| 2007 | Saturn | Aura | Packaging Type: Box |
| 2007 | Saturn | Ion | Packaging Type: Box |
| 2006 | Saturn | Ion | Packaging Type: Box |
| 2005 | Saturn | Ion | Packaging Type: Box |
| 2004 | Saturn | Ion | Packaging Type: Box |
| 2003 | Saturn | Ion | Packaging Type: Box |
| No rows match your filter. | |||
