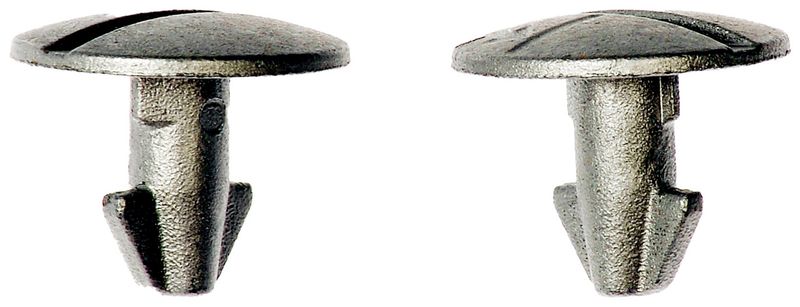

Dorman 700-066 Engine Splash Shield Retainer - Lower

OE Quality 60-Day Returns

Dorman 700-066 Engine Splash Shield Retainer - Lower

Brand	Dorman 700-066
Position	Lower
Material	Cinc
Material	Zinc
Head Diameter	20
Color	Plateado
Color	Silver
Inside Diameter	6
Thickness	2.8
Finish	Dacromet
Outside Diameter	10.7
Type	Splash shield pin screw
Type	Tornillo de pasador del protector contra salpicaduras
Center Groove Diameter	6
Grade Type	Reemplazo estándar
Grade Type	Standard
Shaft Diameter	6
SAE or Metric	Metric
SAE or Metric	Métrico
ACQ Rated	No
ACQ Rated	Non
Callout Size	6 mm
Contenidos del paquete	10 tornillos de pasador de protector contra salpicaduras
Fastener Length	13.74 mm
Overall Length	13.75 mm
Package Contents	10 splash shield pin screws
Tamaño nominal	6mm
Fits	Acura and Honda · 33 vehicles

Standard replacement. Provides the same function and versatility as the original equipment retainer.

Zinc construction. Built from quality materials for long service life.

Metric splash shield pin screw. A multi-purpose fastener for secure body hardware retention.

Cross-references 90674TY2A01 for the same application. See all 1.

$38.66Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Engine Splash Shield Retainer options

Dorman 700-066 Engine Splash Shield Retainer

Dorman 700-066 is a metric splash shield pin screw made for lower engine splash shield attachment points on select Acura and Honda vehicles. Built from zinc with a silver Dacromet finish, it matches the function of the original retainer while supporting secure panel retention and long service life.

Key Features

Engine splash shield retainer for lower underbody panel mounting
Metric 6 mm splash shield pin screw design
Zinc construction with silver Dacromet finish
Standard replacement hardware for OE-style fit and function
Direct replacement part number 700-066

Product Details

This Dorman splash shield pin screw is engineered as a replacement fastener for underbody protection panels where the original retainer has worn, loosened, or broken. The 6 mm metric sizing, 13.75 mm overall length, and 20 mm head diameter support a secure hold for lower splash shields and related engine cover applications. Dorman 700-066 is a practical choice for restoring proper panel attachment on vehicles such as the Honda Accord, Honda Civic, Honda CR-V, Acura ILX, Acura RLX, and Acura TLX.

This part cross-references Honda OE part number 90674TY2A01 for the same application.

What It Helps Fix

Loose or missing lower engine splash shield fasteners
Rattling or shifting underbody panels
Damaged splash shield mounting points from worn retainers
Improper panel retention after service or repair
Corrosion-related failure of original-style fasteners

Installation Notes and Tips

Verify the vehicle uses a 6 mm metric splash shield pin screw at the lower mounting location before installation. Inspect the splash shield hole and surrounding panel for damage, then align the retainer squarely to avoid cross-threading or incomplete seating. For best results, compare the removed fastener to Dorman 700-066 before installation on the Honda Accord, Honda Civic, or Honda CR-V.

Quality Assurance

Constructed from quality materials and finished for corrosion resistance, this retainer is made to deliver OE-style function and versatility in a standard replacement format.

This part fits 33 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Position	Notes
2020	Acura	ILX	Lower	Package Quantity: 10
2020	Acura	RLX	Lower	Package Quantity: 10
2020	Acura	TLX	Lower	Package Quantity: 10
2020	Honda	Accord	Lower	Package Quantity: 10
2020	Honda	Civic	Lower	Package Quantity: 10
2020	Honda	CR-V	Lower	Package Quantity: 10
2019	Acura	ILX	Lower	Package Quantity: 10
2019	Acura	RLX	Lower	Package Quantity: 10
2019	Acura	TLX	Lower	Package Quantity: 10
2019	Honda	Accord	Lower	Package Quantity: 10
2019	Honda	Civic	Lower	Package Quantity: 10
2019	Honda	CR-V	Lower	Package Quantity: 10
2018	Acura	ILX	Lower	Package Quantity: 10
2018	Acura	RLX	Lower	Package Quantity: 10
2018	Acura	TLX	Lower	Package Quantity: 10
2018	Honda	Accord	Lower	Package Quantity: 10
2018	Honda	Civic	Lower	Package Quantity: 10
2018	Honda	CR-V	Lower	Package Quantity: 10
2017	Acura	ILX	Lower	Package Quantity: 10
2017	Acura	RLX	Lower	Package Quantity: 10
2017	Acura	TLX	Lower	Package Quantity: 10
2017	Honda	Accord	Lower	Package Quantity: 10
2017	Honda	Civic	Lower	Package Quantity: 10
2017	Honda	CR-V	Lower	Package Quantity: 10
2016	Acura	ILX	Lower	Package Quantity: 10
2016	Acura	RLX	Lower	Package Quantity: 10
2016	Acura	TLX	Lower	Package Quantity: 10
2016	Honda	Accord	Lower	Package Quantity: 10
2015	Acura	RLX	Lower	Package Quantity: 10
2015	Acura	TLX	Lower	Package Quantity: 10
2015	Honda	Accord	Lower	Package Quantity: 10
2014	Acura	RLX	Lower	Package Quantity: 10
2014	Honda	Accord	Lower	Package Quantity: 10
No rows match your filter.

Directly replaces or cross-references 1 part number

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

90674TY2A01
