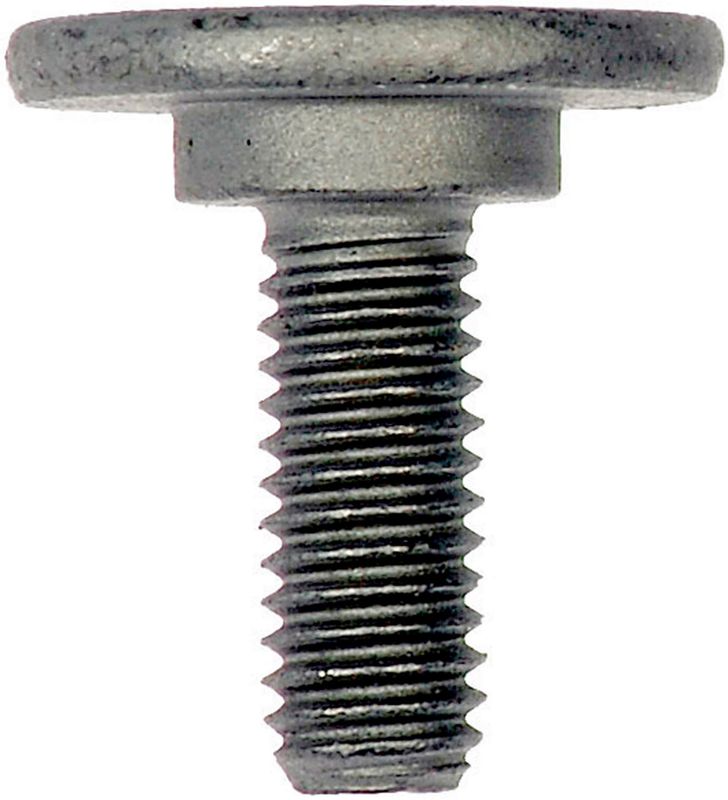

Dorman 700-099 Engine Splash Shield Retainer - Lower
| Brand | Dorman 700-099 |
|---|---|
| Position | Lower |
| Material | Acero |
| Material | Steel |
| Head Diameter | 18.25 |
| Thread Direction | Clockwise (right) |
| Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Head Shape | Flat |
| Head Shape | Plano |
| Color | Plateado |
| Color | Silver |
| Shank Length | 2 |
| Finish | Geomet |
| Type | Machine |
| Type | Máquina |
| Heat Hardened | No |
| Heat Hardened | Non |
| Specialty | Oui |
| Specialty | Sí |
| Specialty | Yes |
| Self Drilling | No |
| Self Drilling | Non |
| Self Tapping | No |
| Self Tapping | Non |
| Thread Length | 15 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Thread Type | Coarse |
| Thread Type | Grueso |
| SAE or Metric | Metric |
| SAE or Metric | Métrico |
| Thread Size | M6-1.0 |
| Fits | Honda · 12 vehicles |
Standard replacement. A direct-fit fastener for routine automotive fastening jobs.
Geomet finish. Helps resist corrosion while keeping a clean silver appearance.
Metric M6-1.0 thread. Coarse-thread machine screw with Phillips drive for secure fastening.
Cross-references 90105TBAA00 for the same application. See all 1.
Engine Splash Shield Retainer for Honda
Dorman 700-099 is a metric steel machine screw used as an engine splash shield retainer for select Honda applications. It features a flat head, Phillips drive, coarse thread, and Geomet finish for service replacement use on lower underbody panels.
Key Features
- Steel construction with silver Geomet finish
- Metric M6-1.0 coarse thread with clockwise/right-hand direction
- Flat head with Phillips PH2 drive for service access
- Standard replacement grade for body hardware applications
- Fits lower splash shield mounting points on select Honda Civic and Honda CR-V models
- Part number 700-099 for catalog and service reference
Detailed Description
Dorman 700-099 is a body hardware fastener made for engine splash shield retention where a metric machine screw is specified. The steel body, 6 mm thread diameter, 15 mm thread length, and 17 mm overall length support lower shield attachment on 2016-2021 Honda Civic and 2017-2022 Honda CR-V applications. This part number 700-099 is a direct service-style replacement for lower underbody fastening needs on Honda Civic and Honda CR-V platforms.
This part cross-references 90105TBAA00 for the same application.
What It Helps Address
- Loose or missing lower engine splash shield fasteners
- Damaged Phillips-head retainers at underbody mounting points
- Corroded or worn machine screws on lower Honda body panels
- Improper splash shield attachment after service work
- Replacement needs for Honda Civic and Honda CR-V lower shield hardware
Installation Notes and Tips
Verify thread size, head style, and length against the original fastener before installation. Use the correct PH2 driver to reduce cam-out and inspect the mounting hole and shield tab for wear or damage before tightening. Confirm lower-position fitment on the vehicle before service.
Quality Assurance
Dorman supplies a broad range of automotive screws and fasteners in multiple diameters, lengths, and thread styles for repair work. Part 700-099 follows standard replacement specifications for body hardware service on confirmed Honda applications.
Compatible Vehicles
- Fits 2017-2022 Honda CR-V, Lower
- Fits 2016-2021 Honda Civic, Lower
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Honda | CR-V | Lower | Package Quantity: 20 |
| 2021 | Honda | Civic | Lower | Package Quantity: 20 |
| 2021 | Honda | CR-V | Lower | Package Quantity: 20 |
| 2020 | Honda | Civic | Lower | Package Quantity: 20 |
| 2020 | Honda | CR-V | Lower | Package Quantity: 20 |
| 2019 | Honda | Civic | Lower | Package Quantity: 20 |
| 2019 | Honda | CR-V | Lower | Package Quantity: 20 |
| 2018 | Honda | Civic | Lower | Package Quantity: 20 |
| 2018 | Honda | CR-V | Lower | Package Quantity: 20 |
| 2017 | Honda | Civic | Lower | Package Quantity: 20 |
| 2017 | Honda | CR-V | Lower | Package Quantity: 20 |
| 2016 | Honda | Civic | Lower | Package Quantity: 20 |
