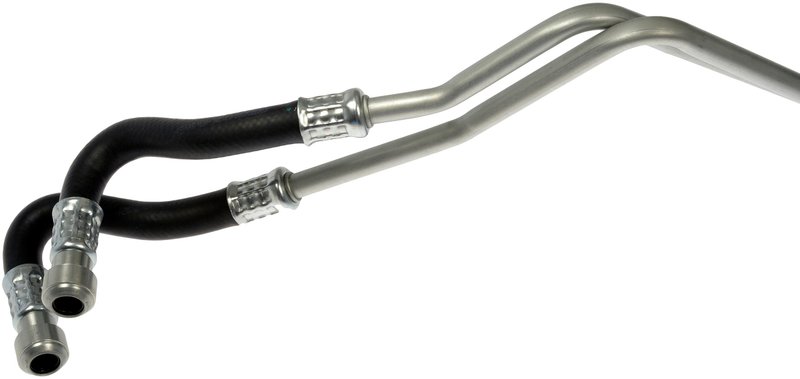

Dorman 724-018 Automatic Transmission Oil Cooler Hose Assembly - Inlet and Outlet

Automatic Transmission Cooler Hose Assembly

Dorman 724-018 is an automatic transmission oil cooler hose assembly built to match the fit and function of the original line on specified vehicles. It is a direct replacement for leaking or damaged transmission cooler hoses on 2010-2014 Ford F-150 inlet and outlet applications.

Designed for the Ford F-150, this transmission line assembly uses durable steel and rubber construction with a molded hose shape for a factory-style routing and connection profile. The Dorman 724-018 part number is a practical OE-style replacement when the original cooler hose has cracked, seeped, or been damaged.

Key Features

• Direct replacement automatic transmission oil cooler hose assembly
• Fits 2010-2014 Ford F-150, inlet and outlet
• Female quick disconnect on end 1 for secure connection
• Bracket mount on end 2 for factory-style support
• Molded assembly with flexible routing
• Steel and rubber hose materials for transmission fluid service
• Maximum working pressure: 250
• Operating temperature range: -40 Deg. F. to 329 Deg. F.
• Gasket or seal included

Detailed Description

This Dorman transmission cooler hose assembly is engineered to match the original assembly’s fit and function, making it a direct OE-style replacement for the Ford F-150 cooling circuit. The molded design, 48-inch length, and 0.421-inch inside diameter at both ends support proper routing and connection at the inlet and outlet points. If you are replacing a leaking transmission cooler hose on a 2010-2014 Ford F-150, Dorman 724-018 provides the correct connection style and mounting layout for the application.

This part cross-references Ford OE numbers AL3Z7R081C and BL3Z7R081C for the same application.

Common Problems This Part Can Address

• Transmission fluid leaking from a damaged cooler hose
• Cracked or deteriorated hose material
• Loose or worn quick-disconnect connection at the transmission cooler line
• Improper hose routing caused by a bent or damaged assembly
• Loss of factory-style support at the bracket mount

Installation Notes and Tips

Verify the vehicle is a 2010-2014 Ford F-150 with inlet and outlet cooler line routing before ordering. Inspect the mating ports, bracket location, and sealing surfaces for wear or contamination before installation. Confirm the quick disconnect and bracket mount align with the original line path, and replace any damaged seals or gaskets at the connection points as needed.

Quality Assurance

Dorman designs this transmission oil cooler hose assembly to match original fit and function using durable components for replacement service. Package contents include one transmission line assembly, and a gasket or seal is included.
