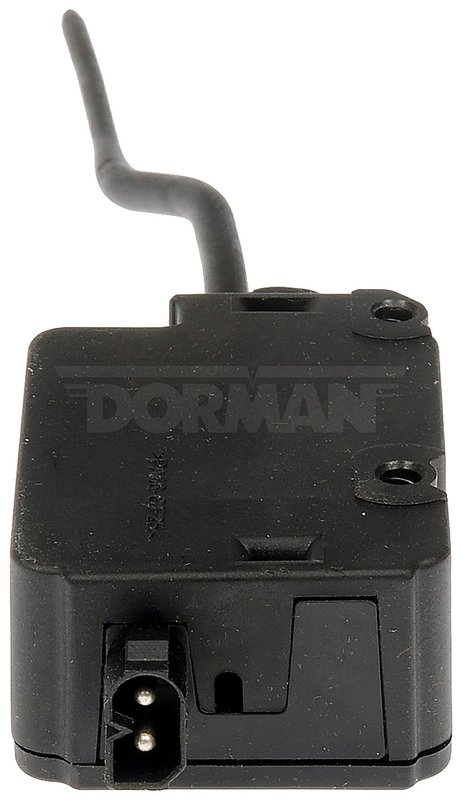

Dorman 746-510 Fuel Filler Door Lock Actuator

Reliable Fuel Filler Door Lock Actuator for BMW Models

The Dorman 746-510 fuel filler door lock actuator is designed to provide precise electric activation for your BMW fuel door locking system. Engineered with durable metal and plastic components, this actuator ensures consistent performance for various BMW 3 Series models.

• Constructed with a combination of metal and plastic for durability
• Electric activation type operating at 12 volts
• Compact dimensions: 9.5 inches length, 1.11 inches width, and 1.96 inches height
• Features a rectangular female connector with two male bullet terminals
• Compatible with BMW 320i, 323Ci, 323i, 325Ci, 325i, 325xi, 328Ci, 328i, 330Ci, 330i, 330xi, and M3 models

Product Details and Specifications

The Dorman 746-510 fuel filler door lock actuator is designed for electric operation, utilizing a 12-volt power supply common in BMW vehicles. Its rectangular female connector and two male bullet terminals facilitate straightforward electrical connections. The actuator measures 9.5 inches in length, 1.11 inches in width, and 1.96 inches in height, making it a compact replacement part that fits seamlessly into the fuel door locking mechanism. While mounting hardware and wiring harness are not included, the actuator’s design allows for direct replacement in compatible BMW 3 Series models.

Compatible BMW Models and Common Applications

• Replacement for faulty or non-responsive fuel filler door lock actuators in BMW 320i and 323i series
• Restores proper locking function in BMW 325i, 325xi, and 328i fuel doors
• Suitable for BMW 330i, 330xi, and M3 models requiring electric fuel door lock actuator repair
• Addresses issues such as fuel door not locking or unlocking electronically

Installation Notes and Tips

Installation of the Dorman 746-510 fuel filler door lock actuator requires basic automotive electrical knowledge. Ensure the vehicle’s battery is disconnected before beginning to avoid electrical shorts. The actuator connects via a rectangular female connector with two male bullet terminals; verify secure connections for proper operation. Since mounting hardware and wiring harness are not included, retain original components or source compatible parts as needed. Testing the actuator’s function before reassembling the fuel door is recommended to confirm successful installation.

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 746-510 fuel filler door lock actuator undergoes quality checks to ensure reliable performance in BMW vehicles. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Consult product documentation or the supplier for exact warranty terms related to this part.
