OE Quality
60-Day Returns

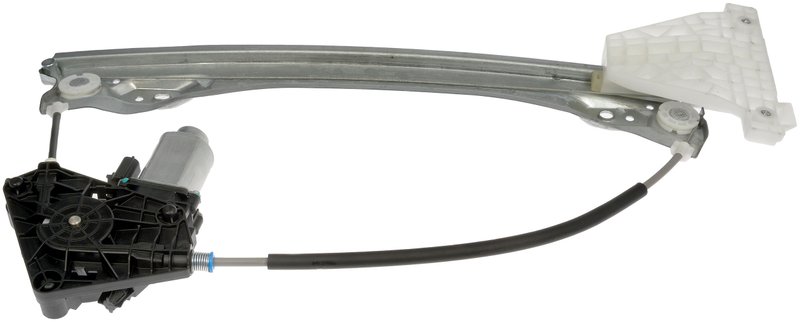

Dorman 748-012 Window Motor and Regulator Assembly - Right Sliding Door
Dorman 748-012 Window Motor and Regulator
Dorman 748-012 is a replacement power window motor and regulator assembly for the right sliding door on select Chrysler minivans. It is engineered and tested to match the original fit, function, and performance of the factory unit on the listed applications.
- Replacement power window motor and regulator assembly
- Fits the right sliding door on select Chrysler Pacifica, Voyager, and Grand Caravan models
- Bolt-on attachment type with 5 mounting holes
- Motor included; 15-watt motor power rating
- Plug-in electrical connection with 2 terminals
- Metal and plastic construction for the housing, frame, and related components
- Automatic down operation
- FMVSS compliant on listed applications
This Dorman window motor and regulator assembly is built for direct replacement on the right sliding door of 2017-2025 Chrysler Pacifica, 2020-2025 Chrysler Voyager, and 2021-2025 Chrysler Grand Caravan. The assembly uses a bolt-on design, includes the motor, and is configured with a plug-in connector for straightforward electrical integration. Part number 748-012 is a practical OE-style solution when the original regulator or motor has failed, and it cross-references Chrysler 68314758AA and 68314768AA for the same application.
Common Problems It Can Solve
- Window glass will not lower from the right sliding door
- Intermittent or failed power window motor operation
- Binding, slow, or uneven window movement
- Broken regulator components inside the sliding door
- Noisy operation from worn internal window hardware
Installation Notes and Tips
Verify vehicle year, make, model, and right sliding door position before ordering. Confirm the connector style, mounting hole layout, and automatic-down configuration match the original part. Transfer any vehicle-specific trim or door components as required during installation, and inspect the window glass tracks and guides for wear before fitting the new assembly. Part number 748-012 is intended for direct replacement on the listed Chrysler applications.
Quality Assurance
Dorman states that this replacement assembly is precision-engineered and extensively tested to match the stock regulator’s fit, function, and performance on the specified vehicles. It is listed as FMVSS compliant on the confirmed applications.
| Brand | Dorman |
|---|---|
| Part Number | 748-012 |
| Material | Metal |
| Material | Plastic |
| Material | Plástico |
| 10941 | Oui |
| 10941 | Sí |
| 10941 | Yes |
| 10943 | No |
| 10943 | Non |
| 10945 | Bolt on |
| 10945 | Con perno |
| Maximum Width | 4 |
| Mounting Position | 5 |
| Wiring Harness Length | 0 |
| Attachment Type | Bolt on |
| Attachment Type | Con perno |
| Maximum Lift Height | 404 |
| Operation Type | Automatic (down) |
| Operation Type | Automático (abajo) |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Wire Quantity | 0 |
| Mounting Hole Quantity | 5 |
| Housing Material | Metal |
| Housing Material | Plastic |
| Housing Material | Plástico |
| Motor Power Rating | 15 vatios |
| Motor Power Rating | 15 watt |
| Motor Included | Oui |
| Motor Included | Sí |
| Motor Included | Yes |
This part fits 20 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Chrysler | Grand Caravan | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2025 | Chrysler | Pacifica | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2025 | Chrysler | Voyager | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2024 | Chrysler | Grand Caravan | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2024 | Chrysler | Pacifica | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2024 | Chrysler | Voyager | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2023 | Chrysler | Grand Caravan | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2023 | Chrysler | Pacifica | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2023 | Chrysler | Voyager | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2022 | Chrysler | Grand Caravan | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2022 | Chrysler | Pacifica | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2022 | Chrysler | Voyager | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2021 | Chrysler | Grand Caravan | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2021 | Chrysler | Pacifica | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2021 | Chrysler | Voyager | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2020 | Chrysler | Pacifica | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2020 | Chrysler | Voyager | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2019 | Chrysler | Pacifica | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2018 | Chrysler | Pacifica | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
| 2017 | Chrysler | Pacifica | Right Sliding Door | FMVSS (Federal Motor Vehicle Safety Standards) Compliant: Yes |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
