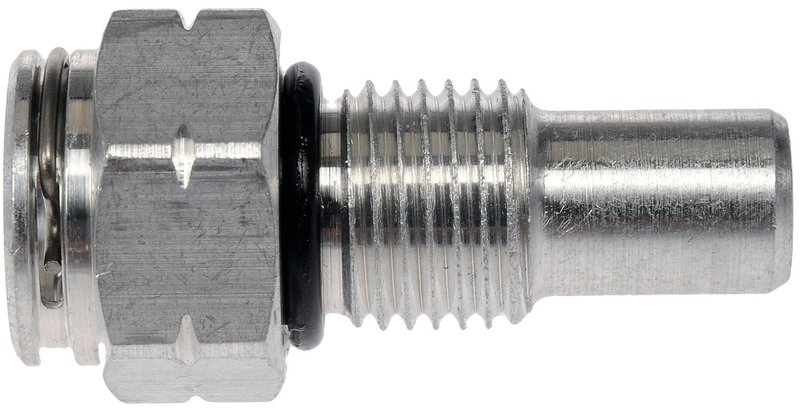

Dorman 800-736 Automatic Transmission Oil Cooler Line Connector

Automatic Transmission Cooler Line Connector

The Dorman 800-736 automatic transmission oil cooler line connector restores the connection between the transmission and the oil cooler with a direct-fit replacement design. Built from aluminum with a straight profile, it uses a quick disconnect on one end and a male thread on the other for a secure, leak-resistant connection.

Compatible With select Buick Lucerne, Cadillac DTS, Cadillac DeVille, and Pontiac Bonneville applications, this connector is made to match the fit and function of the original part. Dorman 800-736 is a practical replacement when the factory connector is damaged, corroded, or no longer sealing properly.

Key Features

• Aluminum construction for transmission cooler line service
• Straight fitting design for OE-style routing
• Quick disconnect end and male thread end
• 0.375 in. end 1 size and 0.25 in. end 2 size
• Direct replacement for the original automatic transmission oil cooler line connector

Detailed Description

This Dorman transmission fitting is engineered to restore leak-free performance in the cooler line connection between the transmission and the oil cooler. It is a straight aluminum connector with a 1/4 in. x 18 threaded male end and a quick disconnect attachment on the other side, making it suitable for the specified OE-style application. The Dorman 800-736 is listed for 2006-2011 Buick Lucerne, 2006-2011 Cadillac DTS, 2000-2005 Cadillac DeVille, and 2004-2005 Pontiac Bonneville models.

This part cross-references AMS Automotive 4249 and 24225126 for the same application.

What It Helps Fix

• Transmission cooler line leaks at the connector
• Loose or damaged quick-connect attachment points
• Corrosion or wear at the original fitting
• Poor sealing between the transmission and oil cooler line
• Loss of transmission fluid from a failed connector

Installation Notes and Tips

Verify the thread size, quick-connect style, and line routing before installation. Confirm the vehicle application against the listed fitment for Buick Lucerne, Cadillac DTS, Cadillac DeVille, or Pontiac Bonneville models. Inspect the mating cooler line and transmission port for damage or contamination before installing the new connector.

Quality Assurance

Dorman manufactures this connector as a replacement part built to match original equipment fit and function. It is made from quality materials for service in the transmission cooling system.
