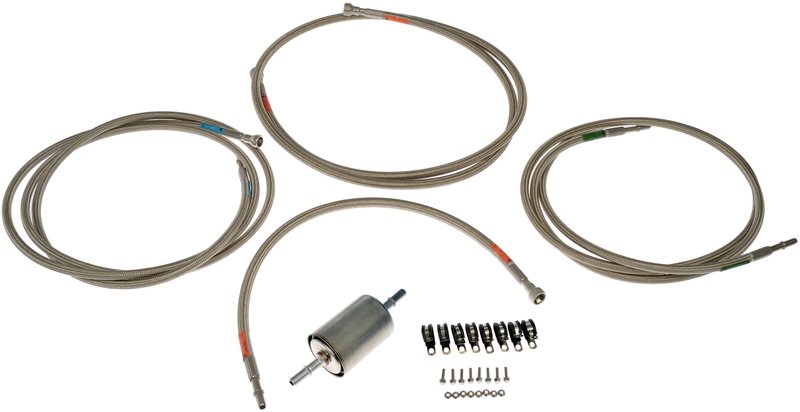

Dorman 819-871 Fuel Line - Rear
| Brand | Dorman 819-871 |
|---|---|
| Position | Rear |
| Material | Acero inoxidable |
| Material | Ptfe |
| Material | Stainless steel |
| Length | 110 |
| Length | 24 |
| Length | 81 |
| Length | 95 |
| Color | Plateado |
| Color | Silver |
| Inside Diameter | 0.3125 |
| Inside Diameter | 0.375 |
| Outside Diameter | 11 |
| Outside Diameter | 13 |
| Maximum Pressure | 75 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| End 1 Hose Connector Type | Conexión rápida hembra |
| End 1 Hose Connector Type | Female quick connect |
| End 2 Hose Connector Type | Conexión rápida macho |
| End 2 Hose Connector Type | Male quick connect |
| Contenidos del paquete | 1 kit de línea de combustible flexible de acero inoxidable |
| Extremo de fijación 1 de la manguera | Conexión rápida hembra |
| Extremo de fijación 2 de la manguera | Conexión rápida macho |
| Grado del artículo | Reemplazo estándar |
| Hose Attachment End 1 | Female quick connect |
| Hose Attachment End 2 | Male quick connect |
| Item Grade | Standard |
| Package Contents | 1 stainless steel flexible fuel line kit |
| Presión clasificada para inyección de combustible | No |
| Pressure Rated for Fuel Injection | No |
| Fits | Chevrolet and GMC · 9 vehicles |
OE FIX line. Braided stainless steel over flexible PTFE tubing for a durable fuel line repair.
Factory connectors. Female and male quick-connect ends simplify installation.
Standard replacement. Built as a direct-fit fuel line solution with specific-length routing.
Cross-references 15064599 and 15765413 for the same application. See all 2.
Dorman 819-871 Fuel Line for Rear Applications
Dorman 819-871 is a fuel line replacement built for select rear-position applications on 2001-2003 Chevrolet Silverado 2500 HD, 2001-2003 Chevrolet Silverado 3500, and 2001-2003 GMC Sierra 2500 HD. It uses braided stainless steel over flexible PTFE tubing to simplify routing under the vehicle while maintaining a factory-style connection layout.
Key Features
- OE FIX-style flexible fuel line construction for easier underbody routing
- Braided stainless steel exterior with PTFE inner tubing
- Made to specific length for select vehicle applications
- Includes new brackets and factory connectors for direct-style installation
- Female quick connect on one end and male quick connect on the other
- Silver finish with standard replacement grade construction
- Maximum pressure rating: 75
Detailed Description
This Dorman fuel line, part number 819-871, is engineered as a standard replacement for rear feed, evap, and return line service on the listed Chevrolet Silverado and GMC Sierra applications. The flexible stainless/PTFE design is intended to replace rigid factory-style lines that can be difficult to route beneath the vehicle, while preserving the original connection style and fitment profile. This part cross-references GM OE numbers 15064599 and 15765413 for the same application.
What This Fuel Line Helps Address
- Corrosion or damage in the original rear fuel line assembly
- Routing difficulty when replacing rigid underbody fuel lines
- Leaks at aged quick-connect fuel line ends
- Service issues in feed, evap, or return line sections
- Fitment problems caused by incorrect line length or connector style
Installation Notes and Tips
Verify the vehicle’s rear fuel line routing before installation and confirm the connector orientation matches the original layout. This part is listed for 2001-2003 Chevrolet Silverado 2500 HD, 2001-2003 Chevrolet Silverado 3500, and 2001-2003 GMC Sierra 2500 HD rear applications with feed, evap, and return service. Use the existing vehicle mounting points and follow factory routing paths where applicable. Part number 819-871 should be matched to the exact application before installation.
Quality Assurance
Dorman OE FIX components are built to provide a direct-style replacement solution with application-specific dimensions and connector design. The stainless steel and PTFE construction supports long-term service in underbody fuel system use, and the included factory-style connectors help maintain a proper fit on the specified vehicles.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2003 | Chevrolet | Silverado 2500 HD | Crew Cab Pickup | 6.0L | V8 | Rear | Feed, Evap and Return |
| 2003 | Chevrolet | Silverado 3500 | Crew Cab Pickup | 6.0L | V8 | Rear | Feed, Evap and Return |
| 2003 | GMC | Sierra 2500 HD | Crew Cab Pickup | 6.0L | V8 | Rear | Feed, Evap and Return |
| 2002 | Chevrolet | Silverado 2500 HD | Crew Cab Pickup | 6.0L | V8 | Rear | Feed, Evap and Return |
| 2002 | Chevrolet | Silverado 3500 | Crew Cab Pickup | 6.0L | V8 | Rear | Feed, Evap and Return |
| 2002 | GMC | Sierra 2500 HD | Crew Cab Pickup | 6.0L | V8 | Rear | Feed, Evap and Return |
| 2001 | Chevrolet | Silverado 2500 HD | Crew Cab Pickup | 6.0L | V8 | Rear | Feed, Evap and Return |
| 2001 | Chevrolet | Silverado 3500 | Crew Cab Pickup | 6.0L | V8 | Rear | Feed, Evap and Return |
| 2001 | GMC | Sierra 2500 HD | Crew Cab Pickup | 6.0L | V8 | Rear | Feed, Evap and Return |
