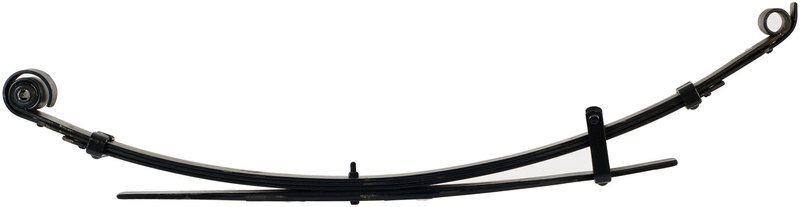

Dorman 90-115 Leaf Spring Assembly - Rear
| Brand | Dorman 90-115 |
|---|---|
| Position | Rear |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Load Rate | 1545 |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Leaf Quantity | 4 |
| Leaf Width | 2.375 |
| Axle Orientation | Arrière |
| Axle Orientation | Trasero |
| Helper Spring | No |
| Helper Spring | Non |
| Axle Modification Needed | No |
| Axle Modification Needed | Non |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Length Axis 1 | 20.5 |
| Length Axis 2 | 20.5 |
| Pack Thickness | 1.26 |
| Leaf Spring Arch Length | 6.688 |
| Spring Research Institute Number | 90-115 |
| Fits | Toyota · 5 vehicles |
Standard replacement. Steel leaf spring assembly for restoring suspension performance and ride comfort.
Bushings included. Ready for installation with bushings already provided.
Up-turned eye ends and a 4-leaf design for dependable load support.
Cross-references Dorman - OE Solutions 90-115, 44-606 and 090-0115-00 for the same application. See all 5.
Dorman 90-115 Rear Leaf Spring Assembly
Dorman 90-115 is a rear leaf spring assembly for select 1984-1988 Toyota Pickup models. Built from steel with a standard replacement suspension grade, it supports vehicle load and helps restore suspension performance and ride comfort.
Key Features
- Steel construction for rear suspension service
- Standard replacement leaf spring assembly
- 4-leaf design with 2.375 in. leaf width
- Load rate: 1545
- Black bushings included
- Up-turned eye attachment at both ends
- Rear axle orientation
- Pack thickness: 1.26 in.; arch length: 6.688 in.
Detailed Description
This Dorman 90-115 leaf spring assembly is built for the rear suspension on 1984-1988 Toyota Pickup trucks. It is a steel, standard replacement spring with a 4-leaf pack and a 1545 load rate, helping maintain proper rear ride height and payload support. For Toyota Pickup rear suspension service, this part number 90-115 provides the OE-style dimensions and attachment style needed for a direct replacement application.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Sagging rear ride height
- Reduced load-carrying support
- Rear suspension noise from worn spring components
- Uneven stance under cargo or towing load
- Loss of ride control from fatigued leaf springs
Installation Notes and Tips
Compatible with 1984-1988 Toyota Pickup, rear. Verify leaf spring dimensions, axle orientation, and end attachment type before installation. This application notes a 1.25 in. pack thickness and use without bushings in the vehicle notes, so compare the existing suspension setup carefully before ordering. Dorman 90-115 should be matched to the vehicle’s rear spring configuration and mounting points for proper alignment.
Quality Assurance
Dorman OE Solutions focuses on replacement parts that follow original-style fit and function requirements. The Dorman 90-115 leaf spring assembly is specified with application-based dimensions and construction details to support accurate replacement selection for Toyota Pickup rear suspension service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1988 | Toyota | Pickup | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.25 In. Pack Thickness; wo/Bushings |
| 1987 | Toyota | Pickup | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.25 In. Pack Thickness; wo/Bushings |
| 1986 | Toyota | Pickup | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.25 In. Pack Thickness; wo/Bushings |
| 1985 | Toyota | Pickup | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.25 In. Pack Thickness; wo/Bushings |
| 1984 | Toyota | Pickup | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.25 In. Pack Thickness; wo/Bushings |
