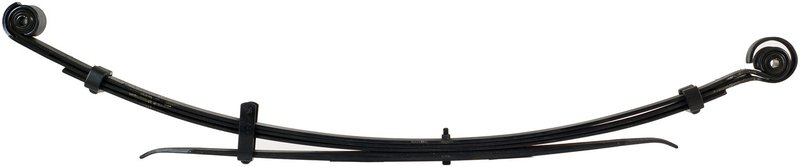

Dorman 90-135 Leaf Spring Assembly - Rear
| Brand | Dorman 90-135 |
|---|---|
| Position | Rear |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Load Rate | 1545 |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Leaf Quantity | 4 |
| Leaf Width | 2.375 |
| Axle Orientation | Arrière |
| Axle Orientation | Trasero |
| Helper Spring | No |
| Helper Spring | Non |
| Axle Modification Needed | No |
| Axle Modification Needed | Non |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Length Axis 1 | 22 |
| Length Axis 2 | 22 |
| Pack Thickness | 1.378 |
| Leaf Spring Arch Length | 6.5 |
| Spring Research Institute Number | 90-135 |
| Fits | Toyota · 8 vehicles |
Steel construction. Provides a durable leaf spring assembly for suspension support.
Standard replacement. A direct-fit leaf spring assembly for straightforward service.
Bushings included. Helps simplify installation and restore suspension function.
Cross-references Dorman - OE Solutions 90-135, 090-0135-00 and 90-135DAY for the same application. See all 5.
Dorman 90-135 Rear Leaf Spring Assembly
Dorman 90-135 is a rear leaf spring assembly for select Toyota Pickup applications. It restores suspension support for the rear axle, helping maintain ride height, payload control, and stable handling on the road or under load.
Key Features
- Steel leaf spring construction for rear suspension service
- Standard replacement suspension grade
- 4-leaf design with 2.375 in. leaf width
- Load rate: 1545
- Black bushings included
- Rear axle orientation with up-turned eye and Berlin eye attachment points
- Leaf spring arch length: 6.5 in.; pack thickness: 1.378 in.
- Length B: 29.25 in.
Application Details
Compatible With 1989-1994 Toyota Pickup, rear. This Dorman 90-135 leaf spring assembly matches the listed rear suspension application for Toyota Pickup models and supports the vehicle’s rear load-carrying function. It is a standard OE-style replacement for drivers servicing worn rear springs on a Toyota Pickup.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Sagging rear ride height from worn leaf springs
- Reduced rear suspension support under payload
- Excessive rear-end bounce or instability
- Uneven stance caused by fatigued spring packs
- Loss of suspension performance on a Toyota Pickup rear axle
Installation Notes and Tips
Verify axle orientation, eye style, leaf count, and pack thickness before installation. Confirm the rear suspension layout on your 1989-1994 Toyota Pickup and compare the existing spring dimensions to Dorman 90-135. Bushings are included; mounting hardware is not listed in the product data. Professional installation is recommended when replacing rear leaf springs.
Quality Assurance
Dorman OE Solutions parts are built as direct replacement components for service applications. Use the confirmed fitment and product attributes to match the correct rear leaf spring for your Toyota Pickup.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 1994 | Toyota | Pickup | Extended Cab Pickup | 4WD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.375 In. Pack Thickness |
| 1993 | Toyota | Pickup | Extended Cab Pickup | 4WD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.375 In. Pack Thickness |
| 1992 | Toyota | Pickup | Extended Cab Pickup | 4WD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.375 In. Pack Thickness |
| 1991 | Toyota | Pickup | Extended Cab Pickup | 4WD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.375 In. Pack Thickness |
| 1990 | Toyota | Pickup | Extended Cab Pickup | 4WD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.375 In. Pack Thickness |
| 1990 | Toyota | Pickup | Cab & Chassis | 4WD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.375 In. Pack Thickness |
| 1989 | Toyota | Pickup | Extended Cab Pickup | 4WD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.375 In. Pack Thickness |
| 1989 | Toyota | Pickup | Cab & Chassis | 4WD | Rear | 3 Leaf / 1 Leaf = 4 Leaf Spring; 1.375 In. Pack Thickness |
