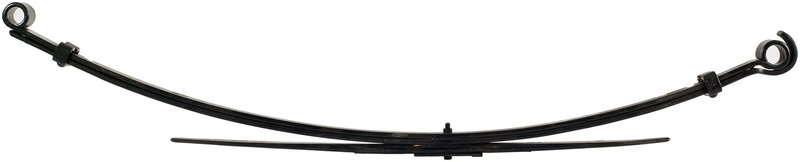

Dorman 90-159 Leaf Spring Assembly - Rear
Dorman 90-159 Rear Leaf Spring Assembly
Dorman 90-159 is a rear leaf spring assembly for select Toyota T100 applications from 1995-1998. It is built from steel with a standard suspension grade and a 3-leaf design to support vehicle weight and rear suspension performance.
Key Features
- Steel leaf spring assembly for rear suspension service
- Standard replacement grade for direct-fit repair work
- 3-leaf construction with 2.375 in. leaf width
- Load rate: 1650
- Black bushings included
- Rear axle orientation
- End 1: Berlin eye; End 2: up turned eye
- Compatible with Toyota T100 rear suspension applications
Detailed Description
This Dorman leaf spring assembly is specified for the rear of 1995-1998 Toyota T100 models and is built to restore spring support in the suspension system. The steel construction, 23.5 in. length axis dimensions, 31.5 in. length B, 1.524 pack thickness, and 6.875 in. arch length provide the dimensional details needed for application matching. Dorman 90-159 is a practical OE-style replacement for Toyota T100 rear leaf spring service where the original spring has lost ride height, load support, or stability.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Sagging rear ride height
- Reduced load-carrying support
- Rear suspension instability over bumps
- Uneven stance from worn spring packs
- Noisy or loose rear spring operation
Installation Notes and Tips
Verify rear axle orientation, spring arch, and attachment style before installation. This application notes a 2 leaf / 1 leaf / 1 pad configuration and no axle modification needed. Bushings are included, while mounting hardware is not listed as included. Confirm the Toyota T100 year, rear position, and suspension dimensions against the existing spring before replacement.
Quality Assurance
Dorman supplies replacement suspension components with application-specific dimensions and material specifications. For Toyota T100 rear leaf spring replacement, Dorman 90-159 provides a standard replacement option built around the listed fitment and construction details.
| Brand | Dorman |
|---|---|
| Part Number | 90-159 |
| Material | Acero |
| Material | Steel |
| Bushing Color | Black |
| Bushing Color | Negro |
| Bushing Color | Noir |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Load Rate | 1650 |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Leaf Quantity | 3 |
| Leaf Width | 2.375 |
| Axle Orientation | Arrière |
| Axle Orientation | Rear |
| Axle Orientation | Trasero |
| Helper Spring | No |
| Helper Spring | Non |
| Axle Modification Needed | No |
| Axle Modification Needed | Non |
| Bushings Included | Oui |
| Bushings Included | Sí |
| Bushings Included | Yes |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Length Axis 1 | 23.5 |
| Length Axis 2 | 23.5 |
| Pack Thickness | 1.524 |
| Leaf Spring Arch Length | 6.875 |
| Spring Research Institute Number | 90-159 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 1998 | Toyota | T100 | Extended Cab Pickup | 4WD | Rear | 2 Leaf / 1 Leaf / 1 Pad = 3 Leaf Spring; 1.50 In. Pack Thickness; wo/Bushings |
| 1997 | Toyota | T100 | Extended Cab Pickup | 4WD | Rear | 2 Leaf / 1 Leaf / 1 Pad = 3 Leaf Spring; 1.50 In. Pack Thickness; wo/Bushings |
| 1996 | Toyota | T100 | Extended Cab Pickup | 4WD | Rear | 2 Leaf / 1 Leaf / 1 Pad = 3 Leaf Spring; 1.50 In. Pack Thickness; wo/Bushings |
| 1995 | Toyota | T100 | Extended Cab Pickup | 4WD | Rear | 2 Leaf / 1 Leaf / 1 Pad = 3 Leaf Spring; 1.50 In. Pack Thickness; wo/Bushings |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
