OE Quality
60-Day Returns

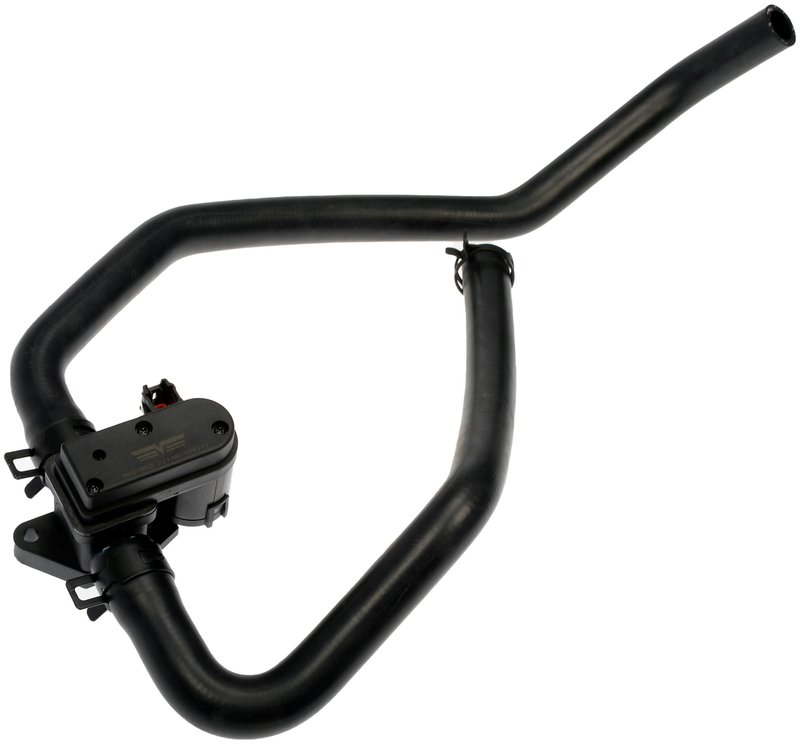

Dorman 902-053 HVAC Heater Control Valve
Dorman 902-053 Heater Control Valve
The Dorman 902-053 HVAC heater control valve is built to match the fit and function of the original valve on select Nissan Titan models. It regulates hot coolant flow through the heater core to help restore proper cabin heat control.
Key Features
- Direct replacement HVAC heater control valve for select Nissan Titan applications
- Electric valve operation for controlled coolant routing
- OEM-grade, specific-fit design for the heater circuit
- Plastic housing with EPDM and nylon construction
- Rectangle connector design with 1 connector, 2 terminals, and 180-degree angle
- Designed for inlet and outlet port dimensions that match the original configuration
Detailed Description
This Dorman heater control valve, part number 902-053, is engineered for the heater system on 2007-2015 Nissan Titan trucks. It is designed to replace a failed original valve and maintain proper coolant flow to the heater core, which is essential for consistent cabin temperature control. The specific-fit design supports OE-style installation and system function on the Nissan Titan heater circuit. This part cross-references Nissan 92400ZT10A for the same application.
What It Helps Fix
- No heat from the cabin vents
- Heat stuck on or stuck off
- Inconsistent heater output during temperature changes
- Coolant flow issues through the heater core
- Faulty electric heater valve operation
Installation Notes and Tips
Verify connector shape, terminal count, port size, and hose routing before installation. This valve uses an electric actuator and a specific-fit layout, so matching the original Nissan Titan heater valve configuration is important. Inspect the surrounding heater hoses and coolant condition during replacement to help confirm proper system operation after installation.
Quality Assurance
Dorman designs this HVAC heater control valve to match original fit and function for the listed application. The part is built with OEM-grade materials and construction for direct replacement use on compatible Nissan Titan models.
| Brand | Dorman |
|---|---|
| Part Number | 902-053 |
| Material | Epdm |
| Material | Nylon |
| Inlet Port Outside Diameter | 25 |
| Outlet Port Inside Diameter | 18 |
| Inlet Port Inside Diameter | 18 |
| Centerline Length | 492 |
| Hose Connector Quantity | 0 |
| Terminal Type | Clavija |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Universal Or Specific Fit | Específico |
| Universal Or Specific Fit | Specific |
| Grade Type | Equipo original |
| Grade Type | Oem |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Rectangle |
| Connector Shape | Rectángulo |
| Gasket Or Seal Included | No |
| Gasket Or Seal Included | Non |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Connector Gender | Hembra |
| Terminal Gender | Macho |
| Terminal Gender | Male |
| Outlet Port Outside Diameter | 25 |
| Arm Length | 492 |
| Port Quantity | 2 |
| Angle | 180 |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2015 | Nissan | TITAN | 5.6L | V8 | N/A | Inlet |
| 2014 | Nissan | TITAN | 5.6L | V8 | N/A | Inlet |
| 2013 | Nissan | TITAN | 5.6L | V8 | N/A | Inlet |
| 2012 | Nissan | TITAN | 5.6L | V8 | N/A | Inlet |
| 2011 | Nissan | TITAN | 5.6L | V8 | N/A | Inlet |
| 2010 | Nissan | TITAN | 5.6L | V8 | N/A | Inlet |
| 2009 | Nissan | TITAN | 5.6L | V8 | N/A | Inlet |
| 2008 | Nissan | TITAN | 5.6L | V8 | N/A | Inlet |
| 2007 | Nissan | TITAN | 5.6L | V8 | N/A | Inlet |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
