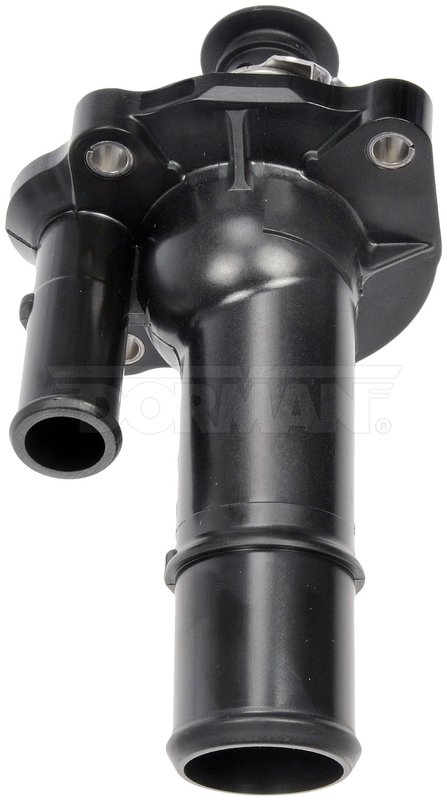

Dorman 902-1076 Engine Coolant Thermostat Housing Assembly

Reliable Engine Coolant Thermostat Housing Assembly for Ford and Lincoln

The Dorman 902-1076 Engine Coolant Thermostat Housing Assembly is designed to maintain optimal engine temperature for select Ford and Lincoln vehicles. This assembly includes a thermostat and gasket, ensuring a complete solution for your vehicle's cooling system needs.

• Material: Durable black plastic construction
• Includes thermostat with 180°F opening temperature
• Comes with a gasket for a secure seal
• Designed with three mounting holes for precise fitment
• Compatible with multiple Ford and Lincoln models including Edge, Escape, Explorer, Focus, Fusion, MKC, MKZ, Mustang, and Transit Connect

Product Details and Specifications

The Dorman 902-1076 thermostat housing assembly features a plastic housing with a flange length of 3.094 inches, flange width of 2.841 inches, and flange thickness of 0.46 inches. The inside diameter measures 1.098 inches, accommodating the thermostat and coolant flow effectively. This assembly includes one outlet port and does not have a bleeder hole. The package contains one thermostat housing, one thermostat, and one gasket to ensure proper installation and sealing. The mounting hardware is not included, but the housing is designed with three mounting holes spaced at 1.94, 2, and 2.95 inches center to center for secure attachment.

Compatible Vehicles and Applications

This thermostat housing assembly is compatible with a range of Ford and Lincoln vehicles, including the Ford Edge, Escape, Explorer, Focus, Fusion, Mustang, Transit Connect, and Lincoln MKC and MKZ models. It is engineered to meet the cooling system requirements of these vehicles, providing reliable temperature regulation and helping prevent engine overheating.

Common Issues Addressed by This Thermostat Housing Assembly

• Engine overheating due to faulty thermostat housing leaks
• Coolant leaks caused by damaged or worn gaskets
• Irregular engine temperature fluctuations
• Thermostat failure leading to poor engine performance
• Corrosion or cracking in original thermostat housing

Installation Notes and Tips

When installing the Dorman 902-1076 thermostat housing assembly, ensure the engine is cool before beginning work. Remove the old thermostat housing carefully to avoid damaging surrounding components. Clean the mounting surface thoroughly before placing the new gasket and housing. Since mounting hardware is not included, reuse the original bolts if they are in good condition or replace them with OEM equivalents. Verify the thermostat orientation and ensure the 180°F thermostat opens correctly during engine warm-up.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing dependable performance and durability. This thermostat housing assembly includes a gasket and thermostat to ensure a complete and reliable repair. While specific warranty details are not provided here, Dorman typically offers limited warranties on their replacement parts. Refer to the product packaging or Dorman's official resources for exact warranty information.
