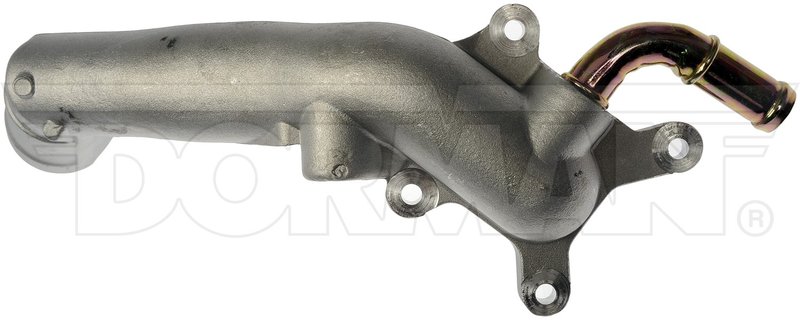

Dorman 902-1082 Engine Coolant Water Outlet
| Brand | Dorman 902-1082 |
|---|---|
| Air Vent (Bleeder Valve) | No |
| Bleeder Screw Included | No |
| Bolt Hole Center To Bolt Hole Center | 2.68 |
| Bolts Included | No |
| Color | Natural |
| Gasket Or Seal Included | No |
| Housing Neck Angle (┬░) | 45 deg |
| Inside Diameter | 1.375 |
| Material | Aluminum |
| Maximum Height | 6 |
| Mounting Hole Diameter | 0.27 |
| Mounting Hole Quantity | 4 |
| O Rings Included | No |
| Outlet Diameter (in) | 0.714 in |
| Outlet Quantity | 2 |
| Outlet Tube Length | 2.3 |
| Package Contents | 1 Water Outlet |
| Fits | Ford · 5 vehicles |
OE-style replacement. Matches stock fit and durability for straightforward service.
Aluminum construction. Built to handle extreme temperature changes and extend service life.
Dual-outlet design. Supports efficient coolant routing in the cooling system.
Cross-references Focus Auto Parts 86171 and 7L5Z8K556A for the same application. See all 2.
Dorman 902-1082 Engine Coolant Water Outlet
Dorman 902-1082 is a replacement engine coolant water outlet for select Ford Ranger models. Built from aluminum with a natural finish, it matches the stock part’s fit and durability while handling repeated temperature swings in the cooling system.
Key Features
- Aluminum construction for cooling-system durability
- Natural finish
- Two outlet ports for the specified application
- 45-degree housing neck angle
- Mounting pattern with 4 holes
- Designed for select 2007-2011 Ford Ranger applications
Detailed Description
This Dorman engine coolant water outlet is engineered for direct replacement use on 2007-2011 Ford Ranger models. The housing is built to match the original fit and mounting layout, with a 1.375-inch inside diameter, 0.714-inch outlet diameter, 2.3-inch outlet tube length, and 6-inch maximum height. The aluminum body is made to handle the heat cycling common in engine cooling systems, helping maintain a secure coolant passage at the thermostat and housing area. Part number 902-1082 is also referenced by Focus Auto Parts 86171 and OE number 7L5Z8K556A for the same application.
Common Problems This Part Addresses
- Cracked or corroded coolant outlet housing
- Coolant leaks at the thermostat and housing connection
- Warped or damaged mounting surfaces
- Restricted coolant flow through a worn outlet
- Cooling-system service needs on a Ford Ranger
Installation Notes and Tips
Verify the mounting hole pattern, outlet angle, and hose connection sizes before installation. This housing does not include a gasket or seal, O-rings, bolts, or a bleeder screw, so transfer or source the required sealing components separately. Clean the mating surfaces thoroughly and inspect the surrounding cooling components before reassembly.
Quality Assurance
Dorman replacement cooling components are built to match OE-style fit and service requirements for the listed vehicle applications. This part is designed for 2007-2011 Ford Ranger cooling-system service and cross-references OE number 7L5Z8K556A.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Ford | Ranger | 2.3L | L4 | N/A | — |
| 2010 | Ford | Ranger | 2.3L | L4 | N/A | — |
| 2009 | Ford | Ranger | 2.3L | L4 | N/A | — |
| 2008 | Ford | Ranger | 2.3L | L4 | N/A | — |
| 2007 | Ford | Ranger | 2.3L | L4 | N/A | — |
