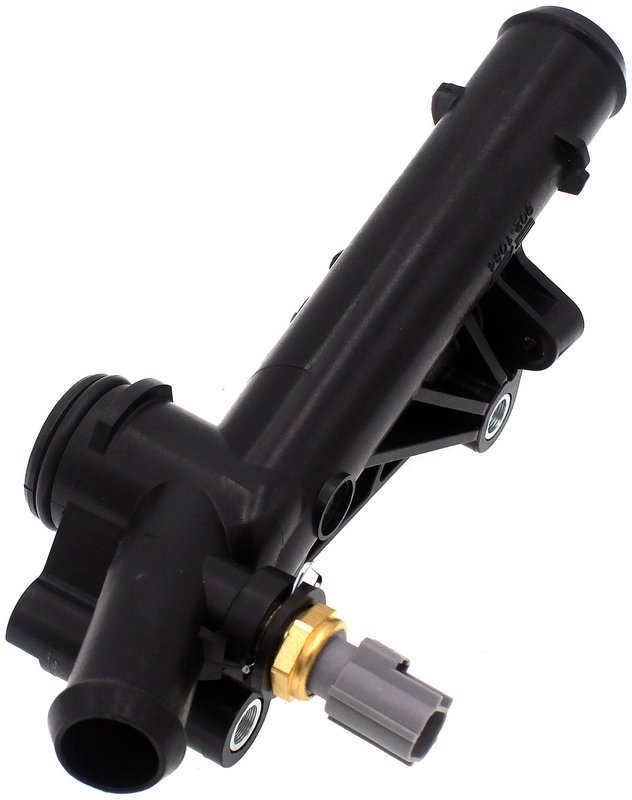

Dorman 902-1084 Engine Coolant Water Outlet

Engine Coolant Water Outlet for Ford Applications

Dorman 902-1084 is a standard replacement engine coolant water outlet built to match the fit and durability of the original part on select Ford vehicles. It is made from plastic with a black finish and includes a gasket or seal for service-ready installation. This coolant outlet is engineered to handle repeated temperature swings in the cooling system.

Key Features

• Standard replacement design for OE-style fit and function
• Plastic construction with black finish
• Includes gasket or seal
• Single outlet design with 2 bolt holes and 2 mounting holes
• Outlet diameter measures 0.96 in. with a 90-degree housing neck angle
• Cross-references Ford OE numbers BM5Z8K556A and BM5Z8K556B for the same application

Detailed Description

This Dorman coolant water outlet, part number 902-1084, is made for select Ford Fiesta, Escape, Transit Connect, and Fusion models. It is shaped to match the original housing dimensions and connection points, including the outlet tube length, mounting hole layout, and housing neck angle. For buyers searching for a Ford Fiesta coolant water outlet or a Ford Escape engine coolant outlet replacement, 902-1084 provides a direct-fit service part for the listed applications.

Compatible With: 2014-2019 Ford Fiesta, N/A; 2013-2016 Ford Escape, N/A; 2014-2016 Ford Transit Connect, N/A; 2013-2014 Ford Fusion, N/A. The part number 902-1084 is also a useful reference when comparing OE-style cooling system repairs for these vehicles.

Common Repair Uses

• Coolant leaks at the outlet housing
• Cracked or warped plastic coolant outlet body
• Damaged sealing surface at the thermostat and housing area
• Cooling system service on Ford Fiesta, Escape, Transit Connect, or Fusion models
• Replacement of a worn OE coolant water outlet

Installation Notes

Verify the outlet diameter, bolt-hole spacing, and housing neck angle against the original part before installation. Clean the mating surfaces thoroughly and inspect the hose connection points for wear or damage. Use the included gasket or seal during assembly and refill the cooling system according to the vehicle service procedure.

Quality Assurance

Dorman designs this replacement coolant water outlet to match stock fit and durability on the specified vehicles. The part is built to withstand extreme temperature changes, helping it perform in the engine cooling system under normal service conditions.
