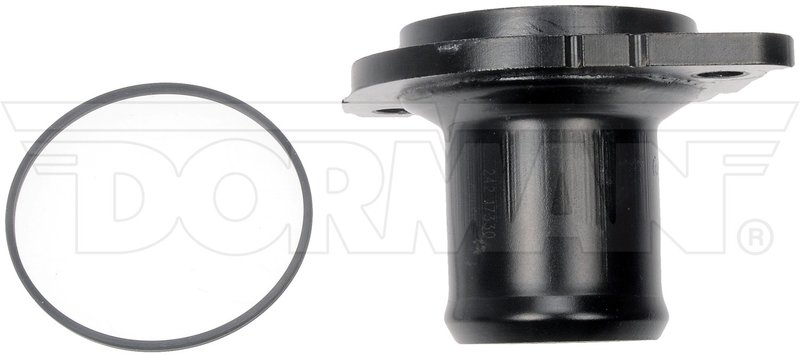

Dorman 902-1108 Engine Coolant Water Outlet

Reliable Engine Coolant Water Outlet for Ford Super Duty and Econoline

The Dorman 902-1108 engine coolant water outlet is designed to provide a durable and precise fit for select Ford vehicles. Engineered from metal with a black finish, this water outlet ensures efficient coolant flow and reliable engine temperature regulation.

• Constructed from durable metal material for long-lasting performance
• Includes one water outlet and one gasket for proper sealing
• Designed with a 90-degree housing neck angle for optimal coolant routing
• Features two mounting holes with a 0.36-inch diameter and 3.25-inch bolt hole center spacing
• Outlet tube length measures 2.1 inches with an inside diameter of 2.4 inches
• Compatible with multiple Ford models including E-350 Club Wagon, F-250 Super Duty, and Excursion

Product Details and Specifications

The Dorman 902-1108 engine coolant water outlet is crafted from metal and finished in black to resist corrosion and wear. It includes a gasket to ensure a secure seal between the outlet and engine block, preventing coolant leaks. The outlet features a single tube with a 1.85-inch diameter and a length of 2.1 inches, designed to fit precisely within the cooling system. The housing neck is angled at 90 degrees to facilitate proper coolant flow direction. Mounting is secured via two holes spaced 3.25 inches apart center-to-center, each with a diameter of 0.36 inches. This part does not include bolts or O-rings but is engineered for straightforward installation with existing hardware.

Compatible Ford Models and Applications

This engine coolant water outlet is compatible with a range of Ford vehicles, including the E-350 Club Wagon, E-350 Econoline Club Wagon, E-350 Super Duty, Excursion, F-250 Super Duty, and F-350 Super Duty. The Dorman 902-1108 is designed to meet the specific cooling system requirements of these models, ensuring proper fit and function.

Common Issues Addressed by This Water Outlet

• Prevents coolant leaks caused by cracked or damaged water outlets
• Restores proper coolant flow to avoid engine overheating
• Replaces corroded or worn metal outlets to maintain system integrity
• Eliminates coolant seepage around the outlet mounting area
• Ensures reliable sealing with included gasket to prevent pressure loss

Installation Notes and Tips

Before installation, ensure the engine is cool and the cooling system is depressurized. Remove the old water outlet carefully to avoid damaging the mounting surface. Clean the gasket surface thoroughly before installing the new gasket and water outlet. Torque mounting bolts to manufacturer specifications to prevent leaks. Note that bolts and O-rings are not included and should be reused if in good condition or replaced as needed.

Quality Assurance and Warranty Information

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 902-1108 engine coolant water outlet undergoes quality inspections to ensure durability and performance. This part includes a gasket for proper sealing and is backed by Dorman's limited warranty against defects in material and workmanship.
