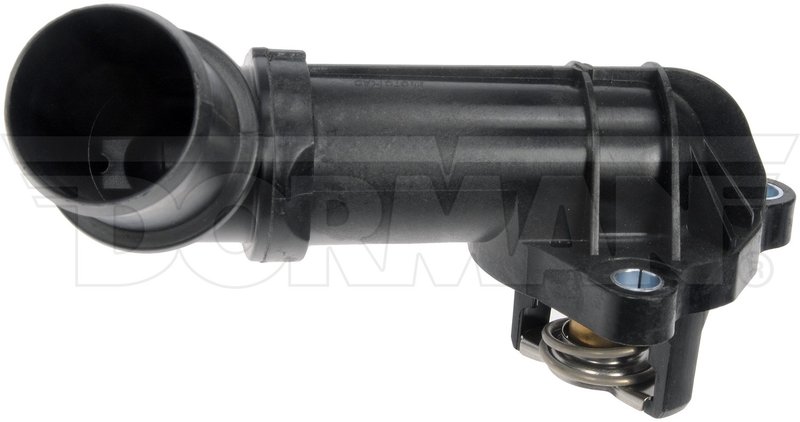

Dorman 902-2113 Engine Coolant Thermostat Housing Assembly
| Brand | Dorman 902-2113 |
|---|---|
| Material | Plastic |
| Color | Black |
| Inside Diameter | 0.288 |
| Mounting Hardware Included | No |
| Grade Type | Regular |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 3 |
| Bolt Hole Center To Bolt Hole Center | 1.865 |
| Bolt Hole Center To Bolt Hole Center | 1.915 |
| Bolt Hole Center To Bolt Hole Center | 2.134 |
| Gasket Type | Gasket |
| Flange Length | 2.769 |
| Flange Thickness | 0.394 |
| Flange Width | 2.771 |
| Outlet Port Quantity | 1 |
| Bleeder Hole | No |
| Package Contents | 1 thermostat housing; 1 thermostat |
| Thermostat Included | Yes |
| Thermostat Opening Temperature | 192 deg. f |
| Fits | Chevrolet · 2 vehicles |
OE-style replacement. Engineered to match stock fit and durability.
Heat-resistant design. Built to withstand extreme temperature changes for longer service life.
Thermostat included. Comes with the thermostat for a complete housing assembly.
Cross-references Motorad 775-192 and 12647027 for the same application. See all 2.
Engine Coolant Thermostat Housing Assembly
Dorman 902-2113 is a replacement engine coolant thermostat housing assembly built to match the fit and durability of the original housing on specified vehicles. It includes the thermostat and is engineered for the thermal cycling common in cooling system service. Compatible with 2014-2015 Chevrolet Cruze applications, this housing supports a direct replacement repair for the cooling system.
- Plastic housing in black finish
- Includes thermostat with 192 deg. F opening temperature
- One outlet port and three mounting holes
- Gasket type: gasket
- Designed for specified Chevrolet Cruze cooling system applications
- Part number: 902-2113
Detailed Product Overview
This thermostat housing assembly is built for the 2014-2015 Chevrolet Cruze and is shaped to match the stock housing layout for the listed application. Dorman 902-2113 uses a plastic construction and a compact flange design to support proper coolant routing at the thermostat location. The included thermostat opens at 192 deg. F, helping regulate engine operating temperature in the cooling circuit. This part cross-references GM OE 12647027 and Motorad 775-192 for the same application.
Common Cooling System Issues It Can Address
- Cracked or warped thermostat housing
- Coolant leaks at the housing flange or outlet
- Temperature control problems caused by a worn thermostat
- Cooling system service on a 2014-2015 Chevrolet Cruze
- Replacement of a damaged OE-style thermostat housing assembly
Installation Notes and Tips
Verify the mounting pattern, outlet port layout, and thermostat specification before installation. This assembly uses three mounting holes and does not include mounting hardware or a separate seal. Clean the mating surfaces thoroughly and inspect adjacent cooling system components for wear before reassembly. Confirm the vehicle application as 2014-2015 Chevrolet Cruze, since fitment is limited to the listed model years.
Quality Assurance
Dorman designs this replacement thermostat housing assembly to match the fit and durability of the stock part on specified vehicles and to withstand repeated temperature changes for extended service life. Part number 902-2113 is built as a regular-grade replacement for direct cooling system service on the listed Chevrolet Cruze applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Chevrolet | Cruze | 2.0L | L4 | DIESEL | N/A | Engine Coolant Thermostat Housing Assembly with included thermostat - fits various vehicle models |
| 2014 | Chevrolet | Cruze | 2.0L | L4 | DIESEL | N/A | Engine Coolant Thermostat Housing Assembly with included thermostat - fits various vehicle models |
