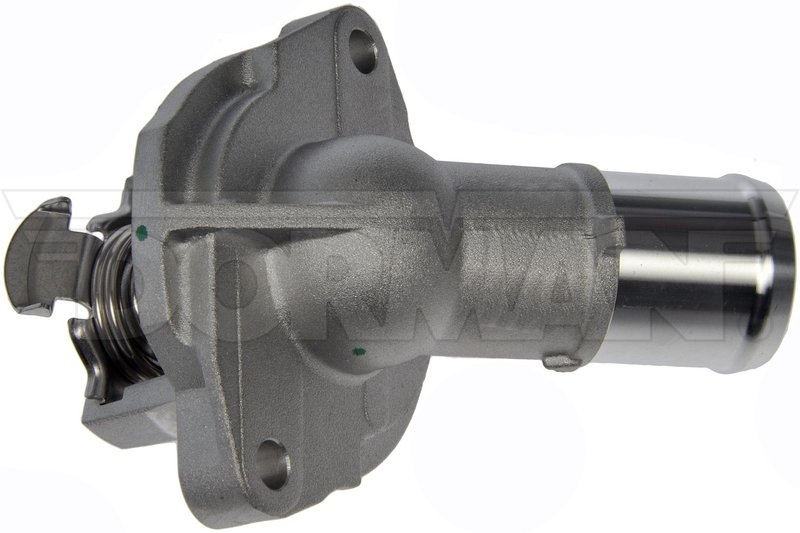

Dorman 902-2124 Engine Coolant Thermostat Housing Assembly - Water Pump

Reliable Engine Coolant Thermostat Housing Assembly for Buick, Chevrolet, and GMC

The Dorman 902-2124 Engine Coolant Thermostat Housing Assembly is designed to maintain optimal engine temperature for select Buick, Chevrolet, and GMC models. This metal thermostat housing assembly includes a thermostat calibrated to open at 176 degrees, ensuring efficient coolant flow and engine performance.

• Durable metal construction with natural finish
• Includes thermostat opening at 176°F for precise temperature control
• Compatible with Buick Cruze, Encore, Chevrolet Equinox, Malibu, Spark, GMC Terrain, and Trax
• Features one outlet port and two mounting holes with 3-inch bolt hole center spacing
• Flange dimensions: 3.59" width, 2.67" length, and 0.46" thickness
• Package contains one thermostat housing and one thermostat; mounting hardware and gasket not included

Product Details and Specifications

The Dorman 902-2124 thermostat housing assembly is constructed from metal for durability and heat resistance. It features a natural color finish and an inside diameter of 0.952 inches to fit the cooling system precisely. The assembly includes a thermostat that opens at 176 degrees Fahrenheit, helping regulate engine temperature effectively. The housing has two mounting holes spaced 3 inches apart center to center, designed for secure installation. The flange measures 3.59 inches wide, 2.67 inches long, and 0.46 inches thick, providing a solid seal surface. This assembly includes one outlet port and does not have a bleeder hole. Note that mounting hardware and gasket are not included in the package.

Compatible Vehicles and Applications

This thermostat housing assembly is compatible with a range of Buick, Chevrolet, and GMC vehicles, including:

• Buick Cruze and Encore
• Chevrolet Equinox, Malibu, and Spark
• GMC Terrain and Trax

It is designed to replace the original thermostat housing assembly in these models, ensuring proper coolant flow and engine temperature regulation.

Common Issues Addressed by This Thermostat Housing Assembly

• Engine overheating due to faulty thermostat housing
• Coolant leaks from cracked or damaged housing
• Erratic engine temperature readings
• Poor engine performance caused by improper coolant flow
• Thermostat failure leading to engine temperature imbalance

Installation Notes and Tips

When installing the Dorman 902-2124 thermostat housing assembly, ensure the engine is cool before beginning work. Remove the old thermostat housing carefully to avoid damaging surrounding components. Since mounting hardware and gasket are not included, use OEM or compatible parts to ensure a proper seal. Verify the thermostat opening temperature matches vehicle specifications. Tighten mounting bolts evenly to the manufacturer’s torque specifications to prevent leaks.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 902-2124 thermostat housing assembly undergoes rigorous quality checks to ensure durability and reliable performance. While specific warranty details may vary, Dorman typically offers limited warranties covering defects in material and workmanship. Refer to Dorman’s official warranty policy for complete information.
