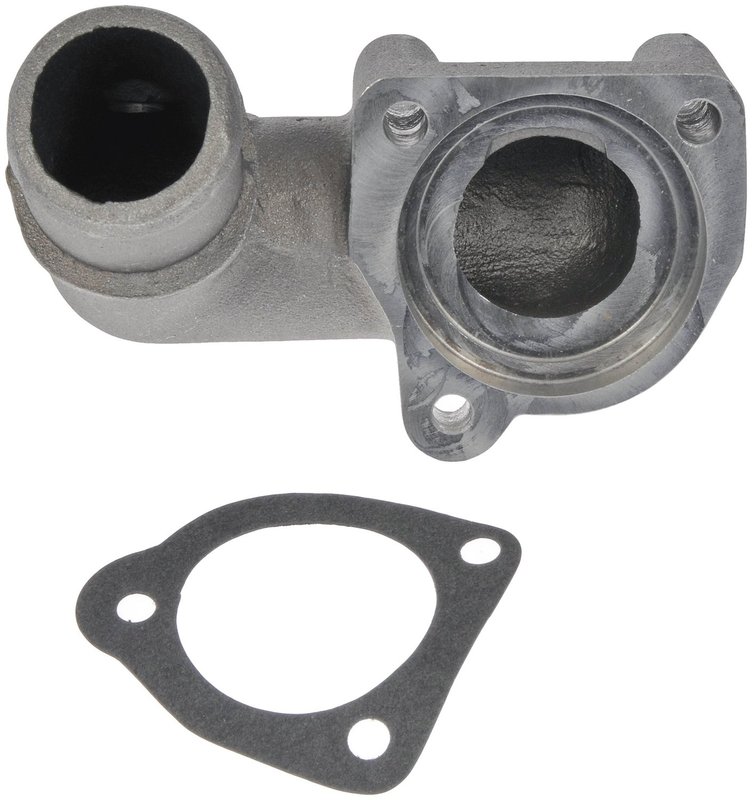

Dorman 902-3024 Engine Coolant Thermostat Housing

Engine Coolant Thermostat Housing for Ram HD

This Dorman engine coolant thermostat housing is a direct replacement for specified Dodge Ram 2500 and Ram 3500 applications. Built from metal with a natural finish, it matches the stock housing’s fit and durability while handling repeated temperature swings in the cooling system.

• Direct replacement thermostat housing for the cooling system
• Fits 1994-1998 Dodge Ram 2500 and 1994-1998 Dodge Ram 3500
• Metal construction for strength and heat resistance
• 1.5 in. outlet port diameter
• 3 mounting holes with 0.313 in. mounting hole diameter
• 180-degree housing neck angle
• No thermostat, gasket or seal, bolts, or O-rings included

Fitment and Cross-Reference

Compatible with 1994-1998 Dodge Ram 2500, N/A, and 1994-1998 Dodge Ram 3500, N/A. This part cross-references Dayco 85036 for the same application. Part number 902-3024 is also referenced by interchange numbers 5178 and CH4024.

Detailed Product Overview

Dorman 902-3024 is an engine coolant thermostat housing engineered to match the original housing on select Dodge Ram trucks. The metal housing is built for cooling-system service where temperature cycling can stress lesser parts, and the natural finish reflects the replacement-style construction. With a 1.5-inch outlet port and a 180-degree neck angle, this housing supports proper coolant routing on the specified Ram 2500 and Ram 3500 models.

Common Repair Uses

• Replacing a cracked or warped thermostat housing
• Repairing coolant leaks at the housing flange or outlet
• Restoring proper thermostat housing alignment after corrosion damage
• Addressing cooling-system service needs on high-mileage Dodge Ram 2500 and Ram 3500 trucks

Installation Notes and Tips

Verify the outlet port diameter, mounting hole count, and neck angle before installation. Because the housing is supplied without a thermostat, gasket or seal, bolts, or O-rings, reuse or source the correct service parts for your application. Clean the mating surfaces thoroughly and inspect the surrounding cooling-system components before reassembly.

Quality Assurance

This Dorman replacement thermostat housing is engineered to match stock fit and durability for the listed vehicles. Its metal construction is selected to withstand extreme temperature changes and support long service life in the cooling system.
