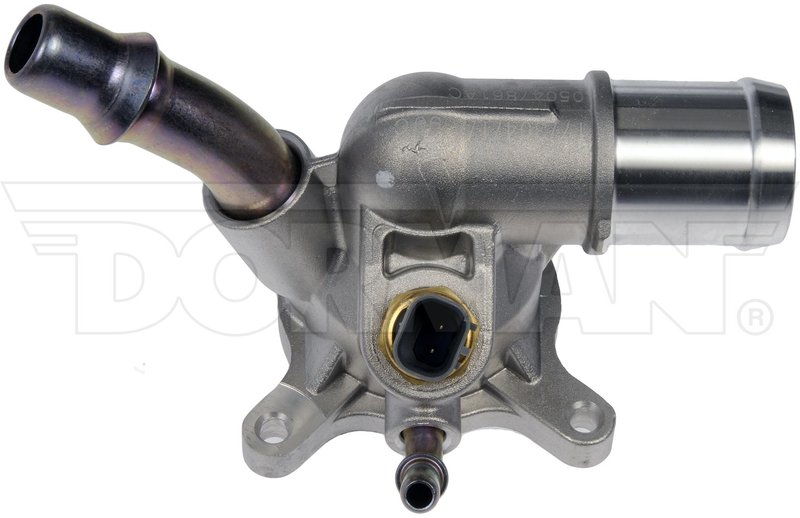

Dorman 902-3101 Engine Coolant Thermostat Housing Assembly
| Brand | Dorman 902-3101 |
|---|---|
| Bleeder Hole | No |
| Bolt Hole Center To Bolt Hole Center | 2 |
| Bolt Hole Center To Bolt Hole Center | 2.4 |
| Bolt Hole Center To Bolt Hole Center | 2.7 |
| Color | Natural |
| Flange Length | 3.25 |
| Flange Thickness | 0.41 |
| Flange Width | 2.9 |
| Gasket Or Seal Included | Yes |
| Gasket Type | Standard |
| Grade Type | Regular |
| Inside Diameter | 0.6 |
| Material | Metal |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Outlet Port Quantity | 3 |
| Package Contents | 1 Sensor; 1 Thermostat Housing; 1 Thermostat |
| Thermostat Included | Yes |
| Thermostat Opening Temperature | 194 Deg. F |
| Fits | Jeep, Ram, Fiat, Chrysler, and Dodge · 45 vehicles |
OE-style replacement. Engineered to match stock fit and durability.
Metal construction. Built for dependable strength and heat resistance.
Gasket included. Ready for a tighter seal during installation.
Cross-references Dorman - Conduct-Tite 86008, Dorman - HELP 81694 and Motorad 816-194 for the same application. See all 4.
$108.97Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Coolant Thermostat Housing Assembly options
Engine Coolant Thermostat Housing Assembly
Dorman 902-3101 is a replacement engine coolant thermostat housing assembly built for specified Jeep, Ram, Fiat, Chrysler, and Dodge applications. It matches the stock housing’s fit and durability requirements while using a metal construction and a standard gasket seal to support reliable cooling-system service.
For Jeep Cherokee, Jeep Compass, Jeep Renegade, Ram ProMaster City, Fiat 500X, Chrysler 200, and Dodge Dart applications, this thermostat housing assembly includes the thermostat and sensor needed for a direct repair. The 194 degree F thermostat opening temperature supports proper engine warm-up and coolant regulation.
- Metal housing construction with natural finish
- Includes thermostat, sensor, and gasket/seal
- 4 mounting holes for OE-style installation
- 3 outlet ports for the specified cooling-system layout
- 194 degree F thermostat opening temperature
- Designed for vehicles that use a 0.6 inside diameter housing interface
Fitment Details
- Fits 2022-2023 Jeep Cherokee, N/A; includes thermostat and sensor.
- Fits 2022 Jeep Compass, N/A; includes thermostat and sensor.
- Fits 2022 Ram ProMaster City, N/A; includes thermostat and sensor.
- Fits 2014-2021 Jeep Cherokee, N/A; engine coolant thermostat housing assembly, including thermostat and sensor.
- Fits 2018-2021 Jeep Compass, N/A; engine coolant thermostat housing assembly, including thermostat and sensor.
- Fits 2015-2021 Jeep Renegade, N/A; engine coolant thermostat housing assembly, including thermostat and sensor.
- Fits 2015-2021 Ram ProMaster City, N/A; engine coolant thermostat housing assembly, including thermostat and sensor.
- Fits 2016-2018 Fiat 500X, N/A; engine coolant thermostat housing assembly, including thermostat and sensor.
- Fits 2015-2017 Chrysler 200, N/A; engine coolant thermostat housing assembly, including thermostat and sensor.
- Fits 2017 Jeep Compass, N/A; new body style; cover; includes thermostat and sensor.
- Fits 2013-2016 Dodge Dart, N/A; engine coolant thermostat housing assembly, including thermostat and sensor.
What This Part Helps Address
- Coolant leaks at a cracked or warped thermostat housing
- Overheating caused by a failing housing, thermostat, or seal
- Temperature control issues from a worn coolant outlet assembly
- Check engine concerns related to thermostat or sensor service
- Repeat cooling-system repairs when the housing no longer seals properly
Installation Notes and Tips
Confirm the vehicle’s year, make, model, and engine cooling-system configuration before installation. Replace the housing on a cool engine, clean the mating surfaces thoroughly, and inspect adjacent hoses, clamps, and connectors for wear before reassembly. This part cross-references Dorman - HELP 81694 for the same application.
Quality Assurance
Dorman 902-3101 is engineered to match the fit and durability of the original housing assembly and is built to handle repeated temperature swings in normal cooling-system operation. The metal housing, included gasket/seal, and integrated thermostat and sensor support a service-ready replacement for specified applications.
This part fits 45 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Jeep | Cherokee | 2.4L | L4 | N/A | Includes Thermostat and Sensor |
| 2022 | Jeep | Cherokee | 2.4L | L4 | N/A | Includes Thermostat and Sensor |
| 2022 | Jeep | Compass | 2.4L | L4 | N/A | Includes Thermostat and Sensor |
| 2022 | Ram | ProMaster City | 2.4L | L4 | N/A | Includes Thermostat and Sensor |
| 2021 | Jeep | Cherokee | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2021 | Jeep | Compass | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2021 | Jeep | Renegade | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2021 | Ram | ProMaster City | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2020 | Jeep | Cherokee | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2020 | Jeep | Compass | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2020 | Jeep | Renegade | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2020 | Ram | ProMaster City | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2019 | Jeep | Cherokee | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2019 | Jeep | Compass | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2019 | Jeep | Renegade | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2019 | Ram | ProMaster City | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2018 | Fiat | 500X | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2018 | Jeep | Cherokee | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2018 | Jeep | Compass | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2018 | Jeep | Renegade | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2018 | Ram | ProMaster City | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2017 | Chrysler | 200 | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2017 | Fiat | 500X | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2017 | Jeep | Cherokee | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2017 | Jeep | Compass | 2.4L | L4 | N/A | New Body Style; Cover; Includes Thermostat and Sensor |
| 2017 | Jeep | Renegade | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2017 | Ram | ProMaster City | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2016 | Chrysler | 200 | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2016 | Dodge | Dart | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2016 | Dodge | Dart | 2.0L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2016 | Fiat | 500X | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2016 | Jeep | Cherokee | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2016 | Jeep | Renegade | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2016 | Ram | ProMaster City | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2015 | Chrysler | 200 | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2015 | Dodge | Dart | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2015 | Dodge | Dart | 2.0L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2015 | Jeep | Cherokee | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2015 | Jeep | Renegade | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2015 | Ram | ProMaster City | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2014 | Dodge | Dart | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2014 | Dodge | Dart | 2.0L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2014 | Jeep | Cherokee | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2013 | Dodge | Dart | 2.0L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| 2013 | Dodge | Dart | 2.4L | L4 | N/A | Engine Coolant Thermostat Housing Assembly, including thermostat and sensor. |
| No rows match your filter. | ||||||
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - Conduct-Tite — 86008Dorman - HELP — 81694Motorad — 816-1945047263AB
