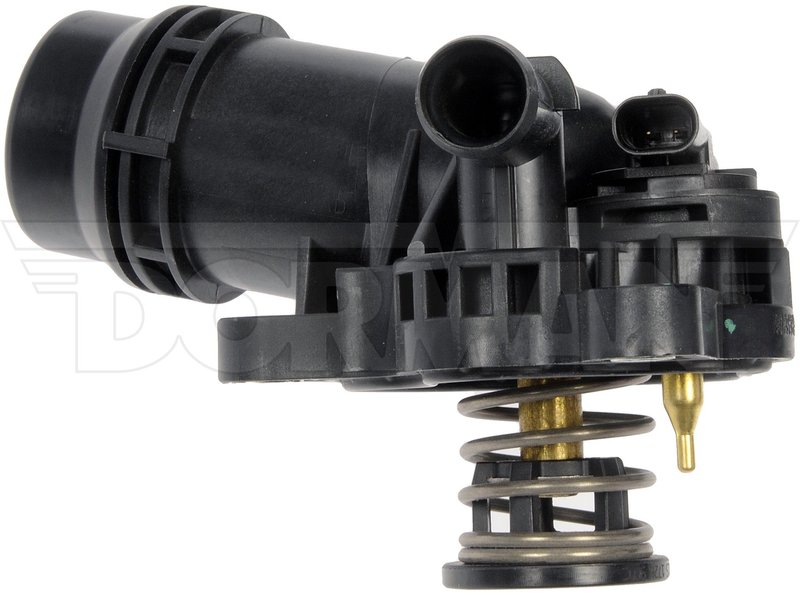

Dorman 902-3114 Engine Coolant Thermostat Housing Assembly

Engine Coolant Thermostat Housing Assembly

Dorman 902-3114 is a replacement engine coolant thermostat housing assembly for select Chrysler and Ram vehicles. It is built to match the fit and durability of the original housing and uses a plastic black housing with an included gasket, thermostat, and sensor for a direct replacement service job.

Compatible With 2017-2025 Chrysler Pacifica, 2020-2021 Chrysler Voyager, 2021 Chrysler Grand Caravan, and 2022-2025 Ram ProMaster 1500/2500/3500 applications. This part number, 902-3114, is also cross-referenced to OE number 68217305AD and Motorad 865-194 for the same application.

Key Features

• Replacement thermostat housing assembly for engine cooling system service
• Plastic housing with black finish
• Includes thermostat, sensor, and gasket
• 194 degree F thermostat opening temperature
• Three mounting holes and two outlet ports
• Designed to handle repeated temperature swings in daily driving conditions
• Dorman 902-3114 for select Chrysler Pacifica, Voyager, Grand Caravan, and Ram ProMaster models

Detailed Description

This engine coolant thermostat housing assembly is engineered as a direct-fit replacement for the stock housing on specified Chrysler and Ram vehicles. The housing is made from plastic and uses a gasket seal design to help restore proper coolant routing and thermostat control. With a 0.626 inside diameter, 4.208 flange length, 3.623 flange width, and 0.407 flange thickness, the assembly is built around the original mounting layout for service replacement work. The thermostat opens at 194 degrees F, and the package includes the thermostat, sensor, and gasket needed for the repair. If you are replacing a leaking or cracked thermostat housing on a Chrysler Pacifica, Voyager, Grand Caravan, or Ram ProMaster, 902-3114 provides the correct OE-style configuration for those applications.

What It Helps Fix

• Coolant leaks from a cracked or worn thermostat housing
• Engine temperature control issues caused by a failing thermostat
• Warning lights or drivability concerns related to the coolant sensor area
• Improper coolant flow through the thermostat housing assembly
• Service problems caused by damaged sealing surfaces or gasket failure

Installation Notes

Verify vehicle application before installation. This assembly uses three mounting holes and a gasket seal, and mounting hardware is not included. Inspect the mating surfaces, coolant passages, and related hoses before reassembly. Proper coolant refill and bleeding procedures should be followed after installation to help restore normal cooling system operation. For fitment-specific service, confirm the vehicle is one of the listed Chrysler Pacifica, Voyager, Grand Caravan, or Ram ProMaster models for the correct year range.

Quality Assurance

Dorman designs this replacement thermostat housing assembly to match the fit and durability of the original part and to withstand repeated temperature changes for extended service life. Part number 902-3114 is built for select Chrysler and Ram cooling system applications and follows an OE-style replacement format.
