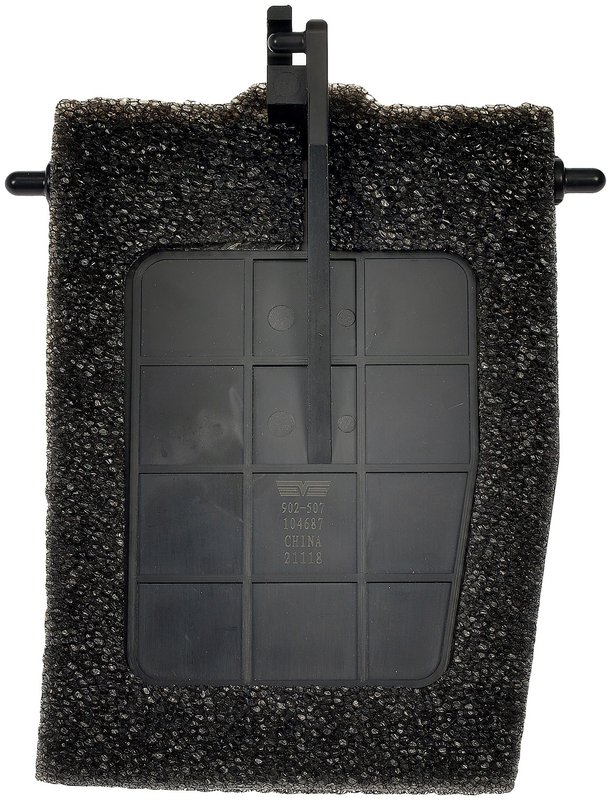

Dorman 902-507 HVAC Mode Door

HVAC Mode Door for Ford E-Series

Dorman 902-507 is an HVAC mode door for Ford E-Series vans and wagons with auxiliary air conditioning. It restores proper air flow direction and blend when the original door has failed from a broken control arm, helping the HVAC system route air where it is needed.

• Plastic construction
• Direct replacement for the original HVAC mode door
• Matches fit and function for specified Ford applications
• Designed for vehicles with auxiliary air conditioning
• Cross-references Ford service part numbers 5C2Z19A760A and F2UZ19A760A

Detailed Product Information

This Dorman HVAC mode door, part number 902-507, is built to restore air distribution control in the HVAC system. It is sized at approximately 6 inches long, 5.5 inches wide, and 0.06 inches thick, with a plastic construction that matches the original style used in the listed Ford applications. For Ford E-350 Super Duty, E-150, E-250, Econoline Van, Econoline Wagon, and related Econoline models, this replacement door addresses the common failure point where the control arm breaks and the air outlet position no longer responds correctly.

Compatible With Ford E-350 Super Duty, Ford E-150, Ford E-250, Ford Econoline Van, Ford Econoline Wagon, and other listed E-Series applications with auxiliary air conditioning. Dorman 902-507 is a practical OE-style replacement for restoring HVAC mode control in Ford E-150 Econoline and Ford E-350 Econoline platforms as well.

Common Problems This Part Can Help Solve

• Airflow stuck on the wrong dash, floor, or defrost setting
• Loss of proper air direction control in the HVAC system
• Broken mode door control arm inside the HVAC housing
• Uneven or incorrect air blend through the vents
• HVAC system not responding as expected to mode changes

Installation Notes and Tips

Install this mode door in the HVAC housing for the listed Ford applications with auxiliary air conditioning. Verify the original door style and vehicle configuration before service, and inspect the control arm and surrounding HVAC components for damage during replacement. No mounting hardware or wiring harness is included.

Quality Assurance

Dorman designs replacement components to match the fit and function of the original part for the specified vehicle applications. This part is engineered for direct replacement use in the listed Ford E-Series and Econoline models.
