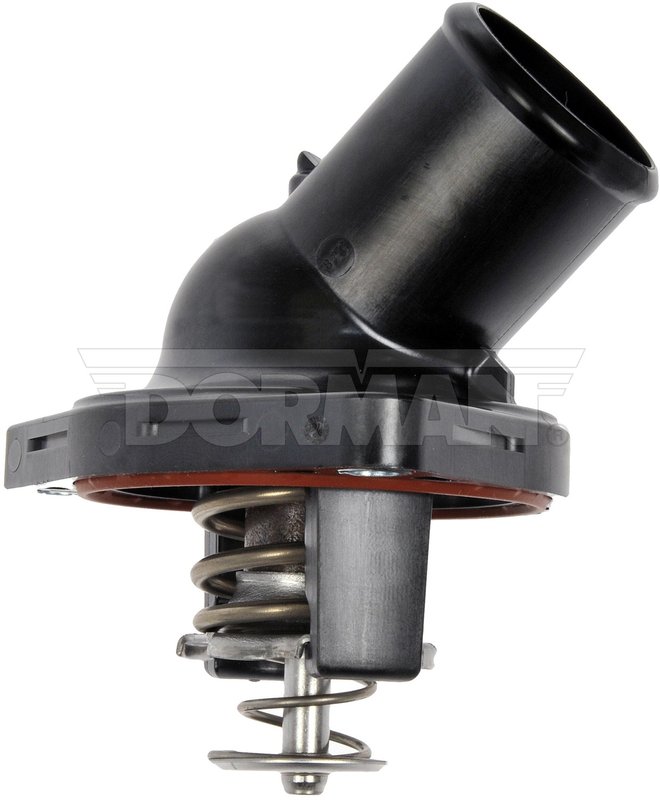

Dorman 902-5136 Engine Coolant Thermostat Housing Assembly
| Brand | Dorman 902-5136 |
|---|---|
| Bleeder Hole | No |
| Bolt Hole Center To Bolt Hole Center | 3 |
| Color | Black |
| Flange Length | 3.5 |
| Flange Thickness | 0.3 |
| Flange Width | 3 |
| Gasket Or Seal Included | Yes |
| Gasket Type | Gasket |
| Grade Type | Regular |
| Inside Diameter | 1.125 |
| Material | Plastic |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 3 |
| Outlet Port Quantity | 1 |
| Package Contents | 1 Thermostat Housing; 1 Thermostat; 1 Gasket |
| Thermostat Included | Yes |
| Thermostat Opening Temperature | 180 Deg. F. |
| Fits | Lexus and Toyota · 142 vehicles |
Direct replacement. Matches stock housing fit and durability for a straightforward swap.
Plastic housing. Lightweight construction resists extreme temperature changes.
Gasket included. Comes with thermostat and gasket for a complete assembly.
Cross-references Beck/Arnley 143-0920, Continental 49338 and Four Seasons 85953 for the same application. See all 8.
$43.70Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Coolant Thermostat Housing Assembly options
Engine Coolant Thermostat Housing Assembly
Dorman 902-5136 is a replacement engine coolant thermostat housing assembly for select Lexus and Toyota applications. It is built to match the fit and durability of the original housing and uses a plastic housing with a black finish, integrated thermostat, and included gasket for a direct repair-focused solution.
Key Features
- Replacement engine coolant thermostat housing assembly for select Lexus and Toyota vehicles
- Plastic housing with black color finish
- Includes thermostat and gasket
- Thermostat opening temperature: 180 Deg. F.
- 1.125 inside diameter with 1 outlet port
- 3 mounting holes, 3.5 flange length, 3 flange width, and 0.3 flange thickness
- Bleeder hole: No
Detailed Description
This Dorman thermostat housing assembly is engineered to match the original housing assembly used on specified vehicles, including Lexus GX460, LX570, LC500, RC F, IS F, GS F, LS460, LS600h, GS460, and Toyota Land Cruiser, Sequoia, and Tundra applications. Part number 902-5136 is designed for engines that use an integrated cover style housing and comes with the thermostat and gasket needed for the repair.
This part cross-references Gates 34705 and Motorad 637-180 for the same application.
What It Helps Repair
- Coolant leaks at the thermostat housing
- Cracked or heat-damaged plastic housing
- Sticking thermostat causing unstable engine temperature
- Overheating caused by restricted coolant flow
- Service issues on vehicles with an integrated thermostat housing cover
Installation Notes and Tips
Verify the housing style, outlet layout, and mounting-hole pattern before installation. This assembly uses a gasket seal and does not include mounting hardware. Confirm the thermostat opening temperature matches the original specification for the vehicle before final assembly. Part number 902-5136 is listed for 2022-2025 Lexus IS500, LC500, and RC F; 2022-2023 Lexus GX460; 2022 Toyota Sequoia; and earlier Lexus and Toyota models with the integrated cover design.
Quality Assurance
Dorman designs this thermostat housing assembly to match stock fit and durability and to withstand extreme temperature changes for extended service life. It is a regular-grade replacement part for maintenance and repair on the listed applications.
This part fits 142 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2025 | Lexus | IS500 | 5.0L | V8 | N/A | Includes Thermostat |
| 2025 | Lexus | LC500 | 5.0L | V8 | N/A | Includes Thermostat |
| 2025 | Lexus | RC F | 5.0L | V8 | N/A | Includes Thermostat |
| 2024 | Lexus | IS500 | 5.0L | V8 | N/A | Includes Thermostat |
| 2024 | Lexus | LC500 | 5.0L | V8 | N/A | Includes Thermostat |
| 2024 | Lexus | RC F | 5.0L | V8 | N/A | Includes Thermostat |
| 2023 | Lexus | GX460 | 4.6L | V8 | N/A | Includes Thermostat |
| 2023 | Lexus | IS500 | 5.0L | V8 | N/A | Includes Thermostat |
| 2023 | Lexus | LC500 | 5.0L | V8 | N/A | Includes Thermostat |
| 2023 | Lexus | RC F | 5.0L | V8 | N/A | Includes Thermostat |
| 2022 | Lexus | GX460 | 4.6L | V8 | N/A | Includes Thermostat |
| 2022 | Lexus | IS500 | 5.0L | V8 | N/A | Includes Thermostat |
| 2022 | Lexus | LC500 | 5.0L | V8 | N/A | Includes Thermostat |
| 2022 | Lexus | RC F | 5.0L | V8 | N/A | Includes Thermostat |
| 2022 | Toyota | Sequoia | 5.7L | V8 | N/A | Includes Thermostat |
| 2021 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2021 | Lexus | LC500 | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2021 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2021 | Lexus | RC F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2021 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2021 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2021 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2020 | Lexus | GS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2020 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2020 | Lexus | LC500 | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2020 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2020 | Lexus | RC F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2020 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2020 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2020 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2019 | Lexus | GS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2019 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2019 | Lexus | LC500 | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2019 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2019 | Lexus | RC F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2019 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2019 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2019 | Toyota | Tundra | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2019 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2018 | Lexus | GS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2018 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2018 | Lexus | LC500 | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2018 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2018 | Lexus | RC F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2018 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2018 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2018 | Toyota | Tundra | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2018 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2017 | Lexus | GS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2017 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2017 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2017 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2017 | Lexus | RC F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2017 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2017 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2017 | Toyota | Tundra | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2017 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2016 | Lexus | GS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2016 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2016 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2016 | Lexus | LS600h | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2016 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2016 | Lexus | RC F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2016 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2016 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2016 | Toyota | Tundra | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2016 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2015 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2015 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2015 | Lexus | LS600h | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2015 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2015 | Lexus | RC F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2015 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2015 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2015 | Toyota | Tundra | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2015 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2014 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2014 | Lexus | IS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2014 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2014 | Lexus | LS600h | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2014 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2014 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2014 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2014 | Toyota | Tundra | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2014 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2013 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2013 | Lexus | IS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2013 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2013 | Lexus | LS600h | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2013 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2013 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2013 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2013 | Toyota | Tundra | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2013 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2012 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2012 | Lexus | IS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2012 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2012 | Lexus | LS600h | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2012 | Toyota | Sequoia | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2012 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2012 | Toyota | Tundra | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2012 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Lexus | GS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Lexus | IS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Lexus | LS600h | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Toyota | Sequoia | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Toyota | Tundra | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2011 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Lexus | GS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Lexus | GX460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Lexus | IS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Lexus | LS600h | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Toyota | Sequoia | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Toyota | Tundra | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2010 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2009 | Lexus | GS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2009 | Lexus | IS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2009 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2009 | Lexus | LS600h | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2009 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2009 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2009 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2009 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2008 | Lexus | GS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2008 | Lexus | IS F | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2008 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2008 | Lexus | LS600h | 5.0L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2008 | Lexus | LX570 | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2008 | Toyota | Land Cruiser | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2008 | Toyota | Sequoia | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2008 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2007 | Lexus | LS460 | 4.6L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| 2007 | Toyota | Tundra | 5.7L | V8 | N/A | Engine coolant thermostat housing assembly with integrated cover. |
| No rows match your filter. | ||||||
Directly replaces or cross-references 8 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 143-0920Continental — 49338Four Seasons — 85953Gates — 34705Motorad — 637-180SKP — SK902513663780160310S010
