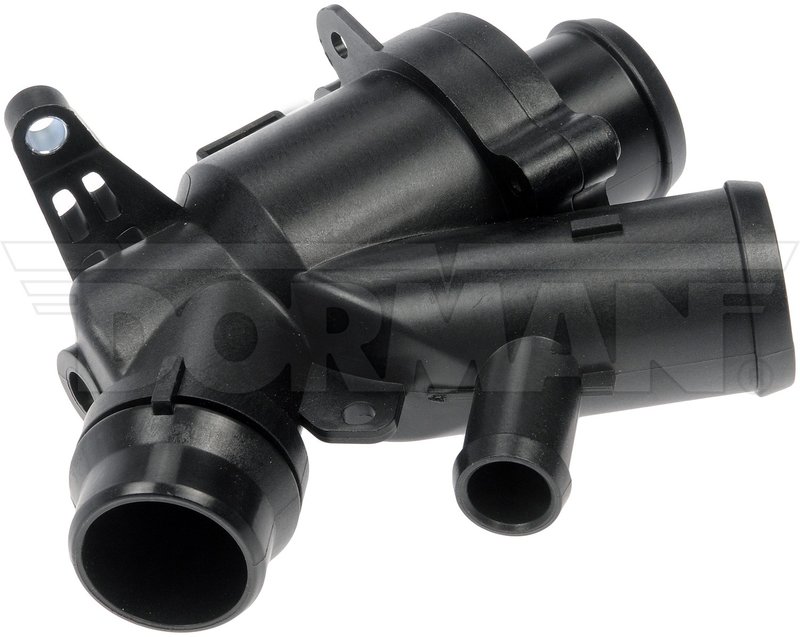

Dorman 902-5186 Engine Coolant Thermostat Housing Assembly

Dorman 902-5186 Thermostat Housing Assembly

Dorman 902-5186 is an engine coolant thermostat housing assembly built to match the fit and durability of the original housing on specified vehicles. It uses a black plastic housing with a standard gasket seal and an integrated thermostat set to open at 203 degrees F.

Compatible with select Jaguar applications, including 2014-2016 Jaguar XF, 2016 Jaguar XE, 2016 Jaguar XJ, and 2017 Jaguar F-Pace. This Dorman thermostat housing assembly is also listed for 2017 Jaguar XF and 2017 Jaguar XJ applications within the specified VIN and engine notes.

Key Features

• Engine coolant thermostat housing assembly for cooling system service
• Black plastic housing designed for stock-style fit and durability
• Thermostat included with a 203 degrees F opening temperature
• Standard gasket included for sealing at installation
• Four mounting holes and one outlet port
• Direct replacement for select Jaguar cooling system applications
• Part number 902-5186 for catalog and fitment lookup

Detailed Description

This thermostat housing assembly is engineered for vehicles that require a replacement coolant outlet with the thermostat already integrated into the housing. The housing is made from plastic and includes a standard gasket seal to support proper coolant sealing at the engine connection point. Dorman 902-5186 is built for specified Jaguar F-Pace, XF, XE, and XJ applications, including model-year and VIN-specific coverage listed in the fitment data. Cross-reference part numbers include C2Z29980 and LR035124 for the same application.

The assembly includes a thermostat with a 203 degrees F opening temperature, helping regulate coolant flow once operating temperature is reached. The housing features four mounting holes, one outlet port, and no bleeder hole. Dorman 902-5186 is a practical OE-style replacement when the original thermostat housing is cracked, warped, or no longer sealing correctly.

What It Helps Address

• Coolant leaks at the thermostat housing
• Cracked or heat-damaged plastic housing
• Improper thermostat operation affecting engine temperature control
• Failed gasket sealing at the coolant outlet
• Cooling system service on select Jaguar XF, XE, XJ, and F-Pace models

Installation Notes and Tips

Confirm the vehicle’s VIN and engine application before ordering, since several listed Jaguar models use VIN-based fitment notes. Inspect the mating surfaces, replace contaminated coolant as needed, and torque fasteners evenly to help the gasket seal correctly. The package contents list the housing, thermostat, and bolts; verify the vehicle-specific service procedure before installation.

Quality Assurance

Dorman designs this replacement thermostat housing assembly to match the fit and durability of the original part on specified vehicles and to withstand extreme temperature changes for extended service life. Part number 902-5186 is a direct replacement option for select Jaguar cooling system repairs.
