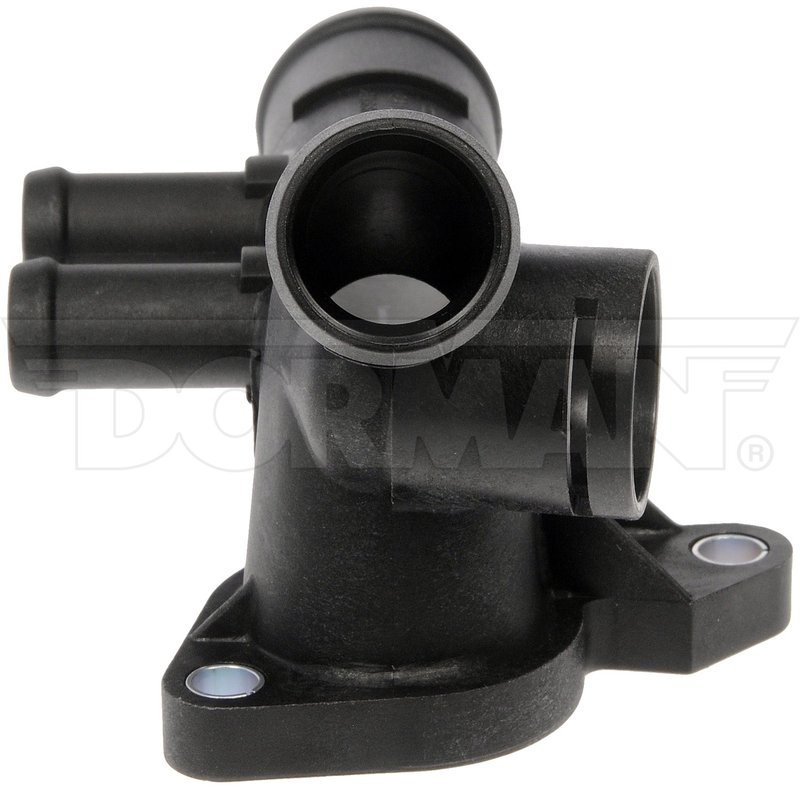

Dorman 902-5956 Engine Coolant Water Outlet - Rear
| Brand | Dorman 902-5956 |
|---|---|
| Position | Rear |
| Air Vent (Bleeder Valve) | No |
| Bleeder Screw Included | No |
| Bolt Hole Center To Bolt Hole Center | 2.582 |
| Bolts Included | No |
| Color | Black |
| Gasket Or Seal Included | Yes |
| Inside Diameter | 1.269 |
| Material | Plastic |
| Maximum Height | 3.755 |
| Mounting Hole Diameter | 2.582 |
| Mounting Hole Quantity | 2 |
| O Rings Included | Yes |
| Outlet Diameter (in) | 1.27 in |
| Outlet Quantity | 4 |
| Outlet Tube Length | 4.16 |
| Package Contents | 1 Thermostat housing; 1 Gasket |
| Fits | Volkswagen · 7 vehicles |
OE-style replacement. Engineered to match stock fit and durability.
Heat-resistant design. Built to withstand extreme temperature changes for longer service life.
Gasket included. Includes a gasket and O-rings for a tighter seal.
Cross-references Dorman - Conduct-Tite 86102, Genuine 06A121132AQ and CH6102 for the same application. See all 3.
Engine Coolant Water Outlet for Volkswagen Beetle
This Dorman engine coolant water outlet is a direct replacement for specified Volkswagen Beetle applications. Built to match the stock fit and durability profile, Dorman 902-5956 is made for rear-position cooling system service on 1999-2005 Volkswagen Beetle models.
Key Features
- Plastic housing in black finish
- Includes gasket and O-rings for sealing points
- Four outlet ports for the specified cooling system layout
- Two mounting holes with 2.582 in bolt-hole center spacing
- Outlet diameter measures 1.27 in
- Designed to handle repeated temperature swings in engine cooling service
Detailed Description
Dorman 902-5956 is an engine coolant water outlet engineered for the rear cooling system position on 1999-2005 Volkswagen Beetle models. It follows the original housing shape and mounting layout, with a plastic construction, 1.269 in inside diameter, 3.755 in maximum height, and 4.16 in outlet tube length. The housing includes a gasket and O-rings to support a proper seal at the coolant connection points. This part cross-references Genuine 06A121132AQ for the same application.
Common Repair Symptoms
- Coolant leaks at the thermostat housing or outlet flange
- Cracked or warped plastic coolant outlet housing
- Loss of coolant from aging seals or O-rings
- Overheating caused by coolant loss at the rear engine outlet
- Visible seepage around the water outlet connection
Installation Notes and Tips
Fits 1999-2005 Volkswagen Beetle, rear. Verify the outlet shape, port count, and mounting-hole spacing against the original part before installation. Clean the sealing surfaces thoroughly and inspect adjacent hoses and clamps for wear while the cooling system is open. Dorman 902-5956 is also referenced by Dorman - Conduct-Tite 86102 and CH6102 interchange listings.
Quality Assurance
Dorman designs this replacement water outlet to match the fit and durability of the original engine coolant housing on the listed vehicles. The part is built for cooling-system service where consistent sealing and temperature resistance are important.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Volkswagen | Beetle | 1.8L | L4 | Rear | — |
| 2004 | Volkswagen | Beetle | 1.8L | L4 | Rear | — |
| 2003 | Volkswagen | Beetle | 1.8L | L4 | Rear | — |
| 2002 | Volkswagen | Beetle | 1.8L | L4 | Rear | — |
| 2001 | Volkswagen | Beetle | 1.8L | L4 | Rear | — |
| 2000 | Volkswagen | Beetle | 1.8L | L4 | Rear | — |
| 1999 | Volkswagen | Beetle | 1.8L | L4 | Rear | — |
| No rows match your filter. | ||||||
