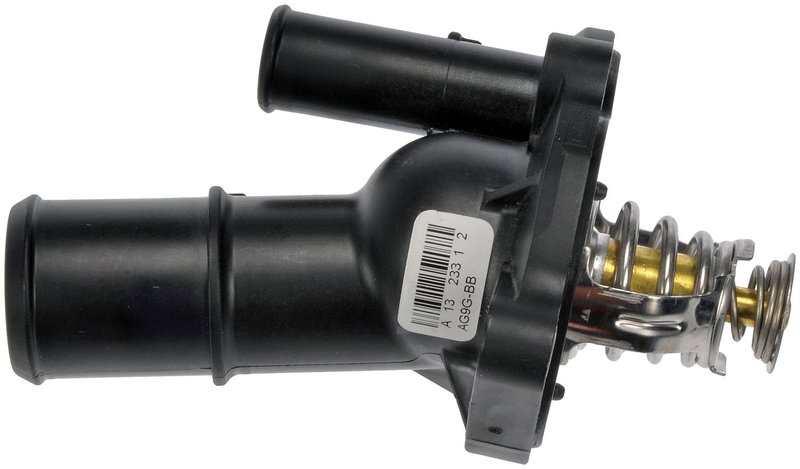

Dorman 902-681 Engine Coolant Thermostat Housing Assembly

Engine Coolant Thermostat Housing Assembly

Dorman 902-681 is a replacement engine coolant thermostat housing assembly built for specified Ford, Jaguar, and Land Rover applications. It matches the stock housing assembly’s fit and durability requirements while using a plastic housing with a black finish and an included gasket and thermostat.

Key Features

• Replacement thermostat housing assembly for engine cooling system service
• Plastic housing with black finish
• Integrated thermostat included, opening at 180 Deg. F.
• Gasket included for sealing at the housing interface
• One outlet port, three mounting holes, and no bleeder hole
• Designed for specified 2012-2017 Ford, Jaguar, and Land Rover vehicles

Detailed Description

This Dorman thermostat housing assembly, part number 902-681, is engineered to match the original housing layout on select vehicles and to handle repeated temperature cycling in the cooling system. It includes the thermostat and gasket, making it a direct replacement option for service on applications such as the 2012-2015 Ford Edge, 2012-2017 Land Rover Range Rover Evoque, and 2013-2015 Jaguar XF. The housing uses a 1.1 inside diameter, a 3.33 flange length, a 2.6 flange width, and a 0.46 flange thickness for OE-style fitment.

This part cross-references Gates 34782 and Motorad 910-180 for the same application. Dorman 902-681 is also listed for the 2012-2017 Land Rover Discovery Sport, 2013-2015 Land Rover LR2, 2013 Ford Explorer, and 2017 Jaguar XE, making it a focused replacement for cooling system repairs where the thermostat housing and cover are serviced together.

Common Problems This Part Can Address

• Coolant leaks at the thermostat housing seal
• Cracked or warped plastic housing surfaces
• Thermostat sticking open or closed
• Engine temperature fluctuations from a worn housing assembly
• Cooling system service on vehicles with an integrated thermostat cover

Installation Notes and Tips

Verify the vehicle’s year, make, model, and engine cooling configuration before installation. Clean the mating surfaces thoroughly, inspect adjacent hoses and clamps, and transfer only the components required by the application. Because mounting hardware is not included, reuse or source the correct fasteners as needed. Confirm proper coolant fill and bleed procedure after installation to help restore normal operating temperature.

Quality Assurance

Dorman designs this thermostat housing assembly to match stock fit and durability expectations for the listed applications. The housing is built to withstand extreme temperature changes, helping support long service life in demanding cooling system conditions.
