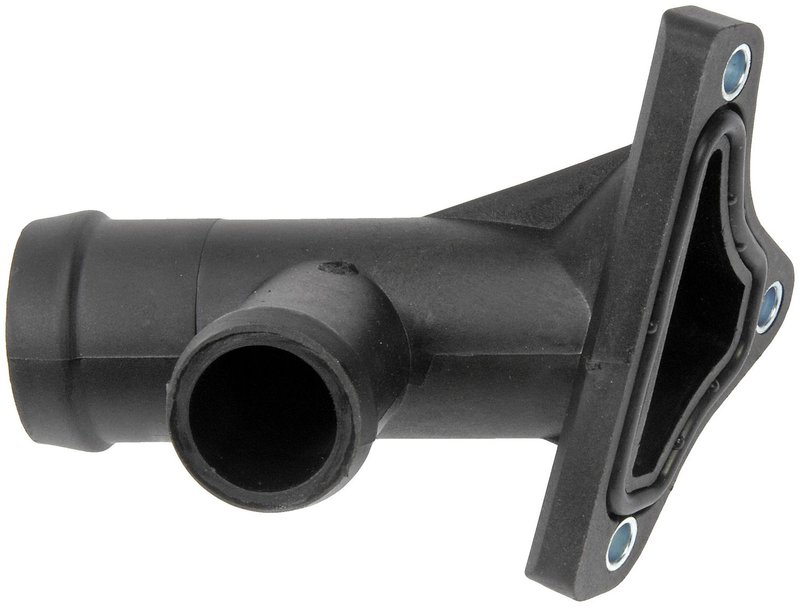

Dorman 902-953 Engine Coolant Water Outlet - Left
| Brand | Dorman 902-953 |
|---|---|
| Position | Left |
| Air Vent (Bleeder Valve) | No |
| Bolts Included | No |
| Color | Black |
| Gasket Or Seal Included | Yes |
| Housing Neck Angle (┬░) | 70 |
| Material | Plastic |
| Mounting Hole Diameter | 0.23 |
| Mounting Hole Quantity | 3 |
| O Rings Included | Yes |
| Outlet Diameter (in) | 1 in |
| Package Contents | Water Outlet; O-ring |
| Fits | Volkswagen · 35 vehicles |
OE-style replacement. Engineered to match stock fit and durability.
Plastic construction. Lightweight housing with black finish.
Seal included. Comes with an O-ring for a tighter fit.
Cross-references Dorman - Conduct-Tite 85319, Motorad CH9953 and URO 027121133E for the same application. See all 5.
Engine Coolant Water Outlet for Volkswagen
This Dorman engine coolant water outlet is a direct replacement for specified Volkswagen applications, including Passat, Golf, and Jetta models. Built to match the stock fit and durability requirements, Dorman 902-953 is made for the left side at the intake manifold and uses a plastic housing with a black finish.
Key Features
- Direct replacement engine coolant water outlet for specified Volkswagen vehicles
- Plastic construction with a black finish
- Includes gasket/seal and O-ring for the outlet connection
- Three mounting holes with a 70-degree housing neck angle
- 1 in. outlet diameter
- No bleeder valve and no bolts included
Detailed Description
Dorman 902-953 is engineered to match the fit and function of the original engine coolant water outlet on select Volkswagen models. It is designed for the left-side intake manifold location and built to handle repeated temperature swings that can stress cooling system components over time. This part cross-references Motorad CH9953 for the same application. For buyers searching for a Volkswagen Passat coolant outlet, Golf coolant water outlet, or Jetta intake manifold coolant outlet, this replacement offers the correct configuration for the listed vehicles.
Compatible With 1990-1993 Volkswagen Passat, left; 1987-1992 Volkswagen Golf, left; and 1987-1992 Volkswagen Jetta, left. Additional fitment includes 1991-1992 Volkswagen Passat, left, and 1990-1991 Volkswagen Passat, left, with engine-specific notes listed in the fitment data.
Common Cooling System Issues
- Coolant leaks at the intake manifold outlet
- Cracked or warped plastic outlet housing
- Failed outlet seal or O-ring causing seepage
- Cooling system service on aging Volkswagen Passat, Golf, or Jetta models
- Replacement of a damaged OE-style coolant water outlet
Installation Notes and Tips
Verify the left-side intake manifold location, outlet diameter, mounting hole count, and housing neck angle before installation. Inspect the mating surface carefully and replace the seal and O-ring as needed during service. Confirm engine designation and model-year notes for Volkswagen Passat, Golf, and Jetta applications to ensure the correct match.
Quality Assurance
Dorman designs this replacement coolant outlet to match stock fit and durability requirements and to withstand extreme temperature changes for extended service life. Part number 902-953 is built as an OE-style replacement for the listed Volkswagen applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1993 | Volkswagen | Passat | 2.0L | L4 | Left | At Intake Manifold |
| 1993 | Volkswagen | Passat | — | — | Left | At Intake Manifold; Engine Designation KR; L4 109CID 1.8L (1781cc) |
| 1992 | Volkswagen | Golf | 2.0L | L4 | Left | At Intake Manifold |
| 1992 | Volkswagen | Golf | — | — | Left | Built in U.S.A.; At Intake Manifold; Engine Designation 9A; L4 2.0L |
| 1992 | Volkswagen | Golf | 1.8L | L4 | Left | Built in U.S.A.; At Intake Manifold; Engine Designation PL |
| 1992 | Volkswagen | Jetta | 2.0L | L4 | Left | At Intake Manifold |
| 1992 | Volkswagen | Jetta | — | — | Left | Built in U.S.A.; At Intake Manifold; Engine Designation PL; L4 109CID 1.8L (1781cc) |
| 1992 | Volkswagen | Passat | 2.0L | L4 | Left | At Intake Manifold |
| 1992 | Volkswagen | Passat | — | — | Left | At Intake Manifold; Engine Designation 9A; L4 2.0L |
| 1992 | Volkswagen | Passat | — | — | Left | At Intake Manifold; Engine Designation KR; L4 1.8L |
| 1991 | Volkswagen | Golf | 2.0L | L4 | Left | At Intake Manifold |
| 1991 | Volkswagen | Golf | — | — | Left | Built in U.S.A.; At Intake Manifold; Engine Designation 9A; L4 2.0L |
| 1991 | Volkswagen | Golf | 1.8L | L4 | Left | Built in U.S.A.; At Intake Manifold; Engine Designation PL |
| 1991 | Volkswagen | Jetta | 2.0L | L4 | Left | At Intake Manifold |
| 1991 | Volkswagen | Jetta | — | — | Left | Built in U.S.A.; At Intake Manifold; Engine Designation PL; L4 109CID 1.8L (1781cc) |
| 1991 | Volkswagen | Passat | 2.0L | L4 | Left | At Intake Manifold |
| 1991 | Volkswagen | Passat | — | — | Left | Outlet; Engine Desg. KR; L4 1.8L (1780cc) |
| 1991 | Volkswagen | Passat | — | — | Left | At Intake Manifold; Engine Designation 9A; L4 2.0L |
| 1990 | Volkswagen | Golf | 2.0L | L4 | Left | At Intake Manifold |
| 1990 | Volkswagen | Golf | — | — | Left | Built in U.S.A.; At Intake Manifold; Engine Designation 9A; L4 2.0L |
| 1990 | Volkswagen | Golf | 1.8L | L4 | Left | Built in U.S.A.; At Intake Manifold; Engine Designation PL |
| 1990 | Volkswagen | Jetta | 2.0L | L4 | Left | At Intake Manifold |
| 1990 | Volkswagen | Jetta | — | — | Left | Built in U.S.A.; At Intake Manifold; Engine Designation PL; L4 109CID 1.8L (1781cc) |
| 1990 | Volkswagen | Passat | 2.0L | L4 | Left | At Intake Manifold |
| 1990 | Volkswagen | Passat | — | — | Left | Outlet; Engine Desg. KR; L4 1.8L (1780cc) |
| 1990 | Volkswagen | Passat | — | — | Left | At Intake Manifold; Engine Designation 9A; Mexico Region; L4 2.0L |
| 1989 | Volkswagen | Golf | 1.8L | L4 | Left | At Intake Manifold |
| 1989 | Volkswagen | Golf | — | — | Left | Built in U.S.A.; At Intake Manifold; Engine Designation 9A; L4 2.0L |
| 1989 | Volkswagen | Golf | 1.8L | L4 | Left | Built in U.S.A.; At Intake Manifold; Engine Designation PL |
| 1989 | Volkswagen | Jetta | 1.8L | L4 | Left | At Intake Manifold |
| 1989 | Volkswagen | Jetta | — | — | Left | Built in U.S.A.; At Intake Manifold; Engine Designation PL; L4 109CID 1.8L (1781cc) |
| 1988 | Volkswagen | Golf | 1.8L | L4 | Left | At Intake Manifold |
| 1988 | Volkswagen | Jetta | 1.8L | L4 | Left | At Intake Manifold |
| 1987 | Volkswagen | Golf | 1.8L | L4 | Left | At Intake Manifold |
| 1987 | Volkswagen | Jetta | 1.8L | L4 | Left | At Intake Manifold |
