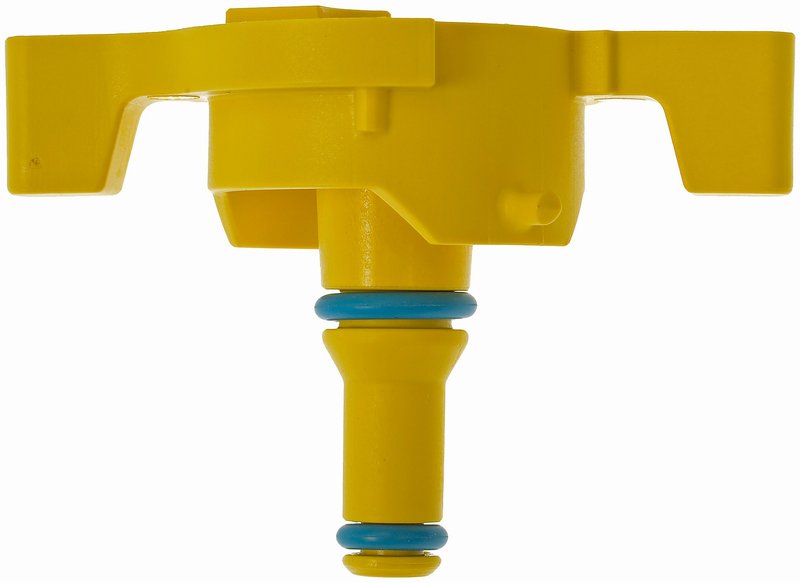

Dorman 904-029 Fuel Water Separator Drain Valve
Fuel Water Separator Drain Valve for Ford Super Duty
Dorman 904-029 is a fuel water separator drain valve built to match the fit and function of the original valve on specified diesel trucks. It is designed for the 2017-2024 Ford F-250 Super Duty and 2017-2024 Ford F-350 Super Duty, with a standard replacement design for dependable service.
- Fits 2017-2024 Ford F-250 Super Duty
- Fits 2017-2024 Ford F-350 Super Duty
- Standard replacement fuel water separator drain valve
- Designed for diesel fuel systems
- Plastic housing with rubber sealing materials
- O-ring compression inlet attachment and hose barb outlet
- Yellow finish for easy identification
- Overall length: 2.9 in.
Detailed Product Overview
This Dorman fuel water separator drain valve, part number 904-029, is engineered for direct replacement use on diesel-equipped Ford Super Duty trucks. It uses a screw-on mounting style, a single inlet and outlet port layout, and dimensions that align with the original valve on the listed applications. The design focuses on restoring proper drain-valve operation in the fuel water separator assembly on Ford F-250 Super Duty and Ford F-350 Super Duty models.
This part cross-references Ford HC3Z9J305A for the same application.
Common Issues This Part Can Address
- Leaking or damaged fuel water separator drain valve
- Difficulty draining water from the separator assembly
- Cracked or worn plastic valve body
- Improper sealing at the inlet connection
- Reduced serviceability of the fuel water separator drain point
Installation Notes and Tips
Verify the inlet thread diameter, outlet diameter, and mounting style before installation. This valve uses an O-ring compression inlet attachment and hose barb outlet, so the sealing surfaces should be clean and free of debris before assembly. Confirm diesel fuel system application and match the vehicle to the listed fitment for 2017-2024 Ford F-250 Super Duty and 2017-2024 Ford F-350 Super Duty.
Quality Assurance
Dorman designs this replacement valve to match original fit and function and to provide durable, reliable performance in the specified application. Part number 904-029 is built as a standard replacement for diesel fuel water separator service on the listed Ford Super Duty trucks.
| Brand | Dorman |
|---|---|
| Part Number | 904-029 |
| Serviceable | No |
| Serviceable | Non |
| Type | Reemplazo estándar |
| Type | Standard |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Housing Material | Plastic |
| Housing Material | Plástico |
| Gasket Thickness | 0.1 |
| Gasket Inside Diameter | 0.23 |
| Gasket Inside Diameter | 0.4 |
| Gasket Outside Diameter | 0.4 |
| Gasket Outside Diameter | 0.59 |
| Marine Approved | No |
| Marine Approved | Non |
| Reservoir Included | No |
| Reservoir Included | Non |
| Port Quantity | 1 |
| Port Quantity | 1 ensamble de manguera del calentador |
| Fuel System Type | Diesel |
| Fittings Included | No |
| Fittings Included | Non |
| Color/Finish | Amarillo |
| Color/Finish | Yellow |
| Contenidos del paquete | 1 tapón de válvula de drenaje de combustible |
| Diámetro de la rosca de entrada | 0.11 in. |
| Diámetro de la salida (in) | 0.45 in |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Inlet Attachment Type | Compresión del sello tipo o |
This part fits 16 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Ford | F-250 Super Duty | 6.7L | V8 | N/A | |
| 2024 | Ford | F-350 Super Duty | 6.7L | V8 | N/A | |
| 2023 | Ford | F-250 Super Duty | 6.7L | V8 | N/A | |
| 2023 | Ford | F-350 Super Duty | 6.7L | V8 | N/A | |
| 2022 | Ford | F-250 Super Duty | 6.7L | V8 | N/A | |
| 2022 | Ford | F-350 Super Duty | 6.7L | V8 | N/A | |
| 2021 | Ford | F-250 Super Duty | 6.7L | V8 | N/A | |
| 2021 | Ford | F-350 Super Duty | 6.7L | V8 | N/A | |
| 2020 | Ford | F-250 Super Duty | 6.7L | V8 | N/A | |
| 2020 | Ford | F-350 Super Duty | 6.7L | V8 | N/A | |
| 2019 | Ford | F-250 Super Duty | 6.7L | V8 | N/A | |
| 2019 | Ford | F-350 Super Duty | 6.7L | V8 | N/A | |
| 2018 | Ford | F-250 Super Duty | 6.7L | V8 | N/A | |
| 2018 | Ford | F-350 Super Duty | 6.7L | V8 | N/A | |
| 2017 | Ford | F-250 Super Duty | 6.7L | V8 | N/A | |
| 2017 | Ford | F-350 Super Duty | 6.7L | V8 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
