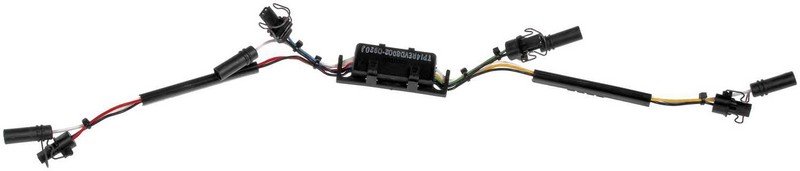

Dorman 904-200 Fuel Injection Harness

Overview of Dorman Fuel Injection Harness 904-200

The Dorman 904-200 fuel injection harness is designed for direct injection systems using pulse width modulation metering. This 21.5-inch harness controls four fuel injectors and is compatible with select Ford models, including the E-350 Club Wagon, E-350 Econoline, Excursion, F-250 Super Duty, and F-350 Super Duty. It provides a reliable, vehicle-specific connection without the need for a heat shield.

• Length: 21.5 inches for precise fitment
• Controls 4 fuel injectors with direct injection style
• Pulse width modulation fuel injection metering
• Vehicle-specific plug and connector type for Ford models
• Standard replacement grade for dependable performance
• No heat shield required for installation
• Includes one fuel injection harness per package

Detailed Product Description

The Dorman 904-200 fuel injection harness is engineered to meet the specifications of direct injection fuel systems found in various Ford trucks and vans. Its 12-wire configuration supports pulse width modulation, ensuring accurate fuel injector control for optimal engine performance. The harness length of 21.5 inches is tailored to fit the engine bay layout of Ford E-350 Club Wagon, E-350 Econoline, Excursion, F-250 Super Duty, and F-350 Super Duty models. The vehicle-specific connectors simplify installation and maintain factory-level electrical integrity without requiring additional heat shielding.

Compatible Vehicles and Applications

• Ford E-350 Club Wagon fuel injection harness replacement
• Ford E-350 Econoline and Econoline Club Wagon direct injection wiring
• Ford Excursion fuel injector wiring harness
• Ford F-250 Super Duty and F-350 Super Duty fuel injection system repair

Installation Notes and Tips

• Ensure the vehicle ignition is off before installation
• Verify connector compatibility with your specific Ford model
• Route the harness away from high-heat areas; no heat shield required but avoid direct contact with exhaust components
• Secure wiring to prevent movement and abrasion
• Consult vehicle service manual for detailed wiring diagrams and torque specifications

Quality Assurance and Warranty

Dorman 904-200 is manufactured to meet standard replacement grade requirements, providing reliable performance for direct injection fuel systems. The harness undergoes quality control testing to ensure proper fit and function. Warranty coverage details are available through Dorman and typically include limited warranties against defects in materials and workmanship.
