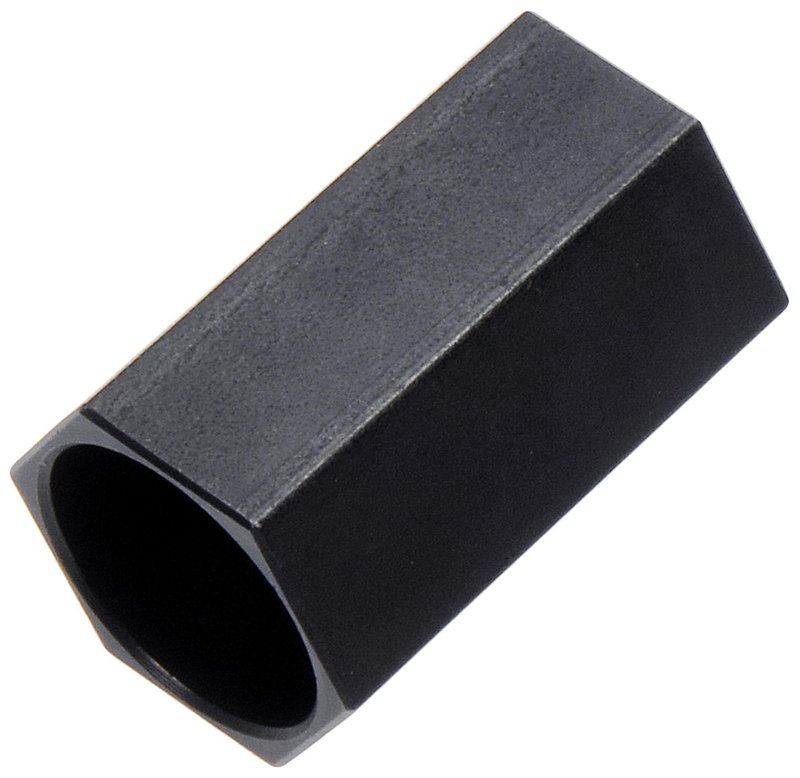

Dorman 904-293T High Pressure Oil Rail Ball Installation Tool

Dorman 904-293T High Pressure Oil Rail Ball Installation Tool

The Dorman 904-293T is a metal high pressure oil rail ball installation tool used when replacing high pressure ball tubes on select Ford diesel applications. It helps service the connection between the fuel injector and the high pressure oil rail with a dedicated, vehicle-specific tool.

Key Features

• Metal construction for service use
• Black finish
• Tool-only service item for high pressure ball tube replacement
• Direct replacement service tool for select Ford Super Duty and Excursion applications
• Cross-references Ford OE part number 5C3Z9T287ARM for the same application

Detailed Description

This Dorman high pressure oil rail ball installation tool, part number 904-293T, is used during replacement of high pressure ball tubes that connect the fuel injector to the high pressure oil rail. It is built from metal and finished in black for shop use. The 904-293T is listed for select 2004-2010 Ford E-350 Super Duty, E-350 Club Wagon, Excursion, F-250 Super Duty, and F-350 Super Duty diesel service applications, making it a focused tool for technicians working on these Ford platforms.

Compatible With 2005-2010 Ford E-350 Super Duty, N/A; 2005-2007 Ford F-250 Super Duty, N/A; 2005-2007 Ford F-350 Super Duty, N/A; 2005 Ford E-350 Club Wagon, N/A; 2005 Ford Excursion, N/A; 2004 Ford E-350 Club Wagon, N/A; 2004 Ford E-350 Super Duty, N/A; 2004 Ford Excursion, N/A; 2004 Ford F-250 Super Duty, N/A; and 2004 Ford F-350 Super Duty, N/A. The part number 904-293T is also a useful reference when ordering or verifying the correct service tool for these Ford diesel fuel system repairs.

What It Is Used For

• Replacing high pressure ball tubes on Ford diesel fuel systems
• Servicing the injector-to-high-pressure-oil-rail connection
• Addressing difficult removal and installation steps during fuel system repair
• Supporting accurate service work on E-350 Super Duty, F-250 Super Duty, F-350 Super Duty, and Excursion applications

Installation Notes and Tips

Use this tool only on the listed Ford applications and follow the service procedure for the specific engine and model year. Confirm the vehicle build date where noted, since some 2004 applications apply from 9/22/03 onward. Verify the OE reference and part number 904-293T before beginning repair.

Quality Assurance

Dorman supplies service tools and replacement parts for targeted repair applications, and this tool is built as a metal service piece for the specified Ford diesel fuel system work. Part number 904-293T is listed against the OE cross-reference 5C3Z9T287ARM for application verification.
