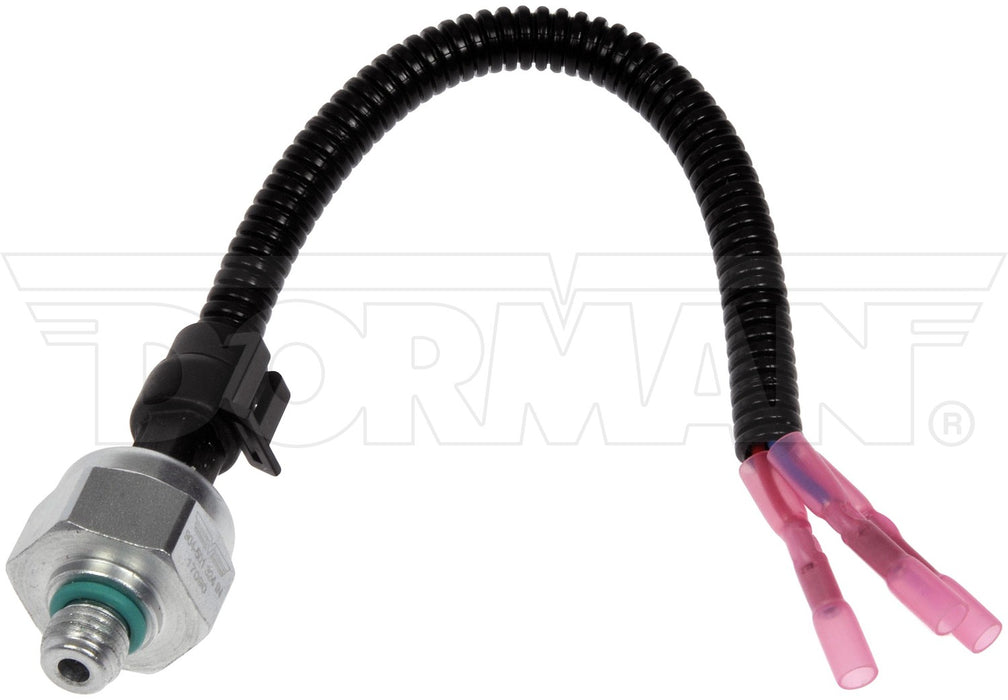

Dorman 904-501 Diesel Injection Control Pressure Sensor
| Brand | Dorman 904-501 |
|---|---|
| Body Material | Plastic |
| Body Material | Steel |
| Connector Color | Silver |
| Connector Gender | Female |
| Connector Quantity | 3 |
| Connector Shape | Round |
| Package Contents | 1 Sensor |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Pin |
| Fits | Ford · 8 vehicles |
OE direct replacement. Matches the original sensor's fit and function for accurate control-module input.
Accurate pressure data. Helps the engine run smoothly by feeding the control module precise information.
Durable construction. Plastic and steel body with a round, 3-pin connector.
Cross-references 3C3Z9F838AA, 522041 and 1845274C92 for the same application. See all 6.
Dorman 904-501 Diesel Injection Control Pressure Sensor
Restore accurate fuel system feedback with this Dorman diesel injection control pressure sensor. It is built to match the original sensor’s fit and function so the control module can read pressure data correctly, helping support smoother idle and more consistent engine operation.
- Direct replacement for the original injector control pressure sensor
- 3-pin, round female connector with silver finish
- Plastic and steel body construction
- Designed for accurate signal delivery to the control module
- Fits Ford diesel applications including E-350 Super Duty and F-Series Super Duty models
Fitment and Application Details
Compatible with 2004 Ford E-350 Club Wagon, early model ID 3C3Z-9F838-EA; 2004 Ford E-350 Super Duty, early model ID 3C3Z-9F838-EA; 2003-2004 Ford Excursion, early model ID 3C3Z-9F838-EA; 2003-2004 Ford F-250 Super Duty, early model ID 3C3Z-9F838-EA; and 2003-2004 Ford F-350 Super Duty, early model ID 3C3Z-9F838-EA. This Dorman 904-501 replacement is a practical choice when you need a diesel injection control pressure sensor for Ford Super Duty and Excursion diesel engine service.
This part cross-references 3C3Z9F838AA and 1845274C92 for the same application.
What This Sensor Helps Address
- Rough diesel idle
- Engine misfiring
- Stalling at idle or under load
- Incorrect pressure signal to the control module
- Driveability issues tied to injector control pressure feedback
Installation Notes and Tips
Verify the connector style, terminal count, and early model ID before installation. Confirm the vehicle application against the listed Ford E-350 Club Wagon, E-350 Super Duty, Excursion, F-250 Super Duty, or F-350 Super Duty fitment details to ensure the correct diesel injection control pressure sensor is selected.
Quality Assurance
Dorman manufactures replacement components to match original equipment fit and function, supporting accurate sensor operation in diesel fuel injection systems.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Ford | E-350 Club Wagon | 6.0L | V8 | N/A | Early Model ID 3C3Z-9F838-EA |
| 2004 | Ford | E-350 Super Duty | 6.0L | V8 | N/A | Early Model ID 3C3Z-9F838-EA |
| 2004 | Ford | Excursion | 6.0L | V8 | N/A | Early Model ID 3C3Z-9F838-EA |
| 2004 | Ford | F-250 Super Duty | 6.0L | V8 | N/A | Early Model ID 3C3Z-9F838-EA |
| 2004 | Ford | F-350 Super Duty | 6.0L | V8 | N/A | Early Model ID 3C3Z-9F838-EA |
| 2003 | Ford | Excursion | — | — | N/A | Early Model ID 3C3Z-9F838-EA |
| 2003 | Ford | F-250 Super Duty | — | — | N/A | Early Model ID 3C3Z-9F838-EA |
| 2003 | Ford | F-350 Super Duty | — | — | N/A | Early Model ID 3C3Z-9F838-EA |
