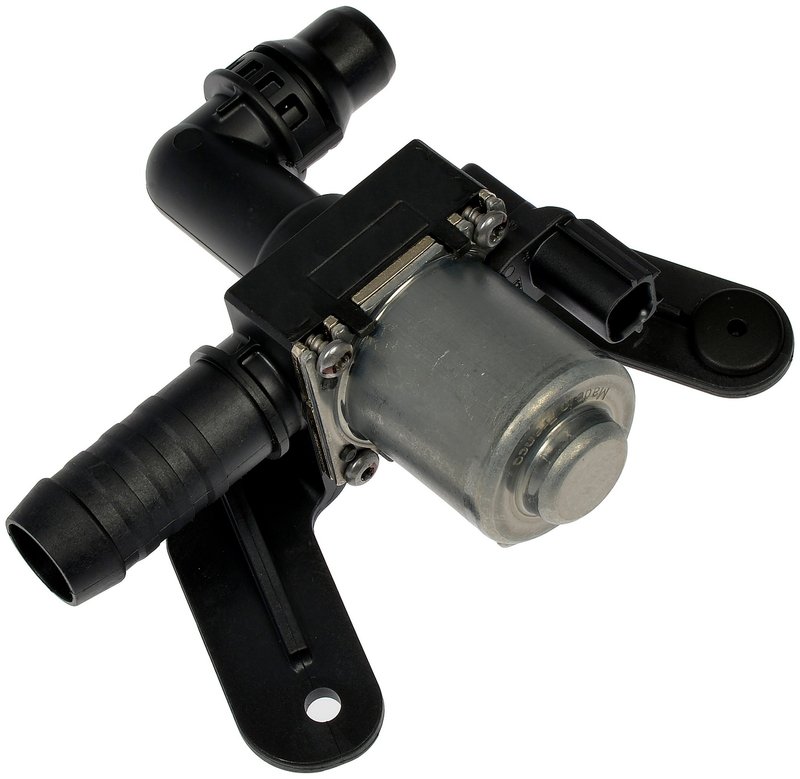

Dorman 904-653 HVAC Heater Control Valve

Overview of Dorman HVAC Heater Control Valve 904-653

The Dorman HVAC Heater Control Valve 904-653 is designed specifically for select Ford and Lincoln vehicles, including the Escape, MKC, and Transit Connect models. This electrically operated valve regulates coolant flow to the heater core, ensuring efficient temperature control within your vehicle's HVAC system.

• Compatible with Ford Escape, Lincoln MKC, and Ford Transit Connect
• Electric operation for precise heater control
• Durable plastic housing construction
• Two ports with specific inlet and outlet diameters for exact fit
• Blade and Aspa terminal types with male connectors

Detailed Product Features and Specifications

The Dorman 904-653 heater control valve features a plastic housing designed for durability and resistance to corrosion. It includes two hose connectors with an inlet port outside diameter of 12.2 mm and an inlet port inside diameter of 16.2 mm, while the outlet port inside diameter measures 14.5 mm and the outlet port outside diameter is 20 mm. The valve has one input port and one output port, both designed for specific fitment rather than universal application. Electrical connections are made via two male terminals with blade and Aspa terminal types, and the connector shape is square to ensure secure attachment. This valve does not include mounting hardware or gaskets, so those components must be sourced separately if needed.

Applications and Common Issues Addressed

• Restores proper heater core coolant flow in Ford Escape, Lincoln MKC, and Transit Connect HVAC systems
• Resolves inconsistent cabin heating or lack of heat due to faulty valve operation
• Eliminates coolant leaks caused by damaged or worn heater control valves
• Prevents overheating of the heater core by regulating coolant flow electrically
• Improves overall HVAC system responsiveness and temperature control

Installation Notes and Tips

When installing the Dorman 904-653 heater control valve, ensure the vehicle is cooled down and the cooling system pressure is relieved. Verify the inlet and outlet hose diameters match the valve specifications for a proper seal. Since mounting hardware and gaskets are not included, retain original components or acquire suitable replacements. Electrical connectors should be securely attached to the male blade and Aspa terminals to maintain reliable operation. Follow vehicle-specific service manual instructions for removal and installation procedures to avoid damage to surrounding components.

Quality Assurance and Warranty

Dorman parts are engineered to meet or exceed OEM standards for fit, form, and function. The 904-653 heater control valve undergoes rigorous quality testing to ensure durability and reliable performance in Ford Escape, Lincoln MKC, and Transit Connect vehicles. While specific warranty details are not provided here, Dorman typically offers limited warranties covering defects in material and workmanship. Consult product packaging or Dorman’s official resources for exact warranty terms.
